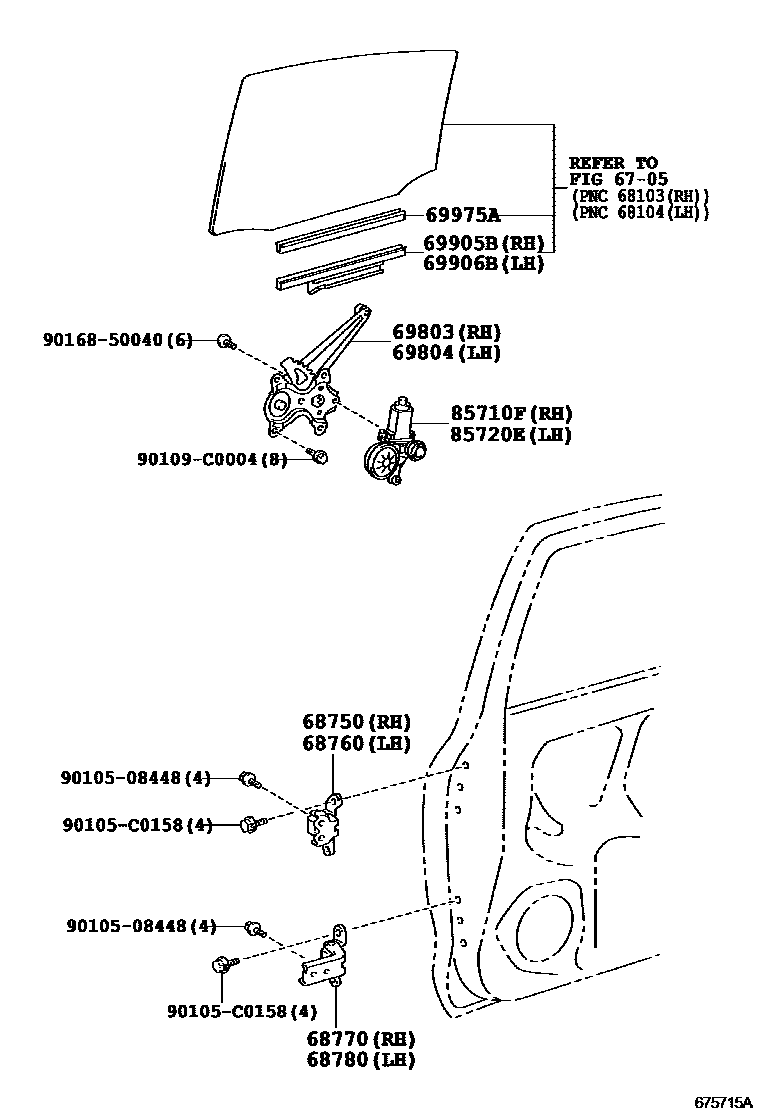

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iNCP90,ZSP91200805-201308

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iNCP90,ZSP91200805-201308

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D021iNCP90,ZSP91200805-201308

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D021iNCP90,ZSP91200805-201308

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D100iZSP91..RS200805-201008

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D100iZSP91..RS200805-201008

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D100iZSP91..RS200805-201008

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D090iZSP91..RS200805-201008

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D080×2iZSP91..RS200805-201008

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06210iZSP91..RS200805-201008

sub85720-35140

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-06190iZSP91..RS200805-201008

sub85710-35180

9010508448

main90105-08448

90105C0158

main90105-C0158

90109C0004

main90109-C0004

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
