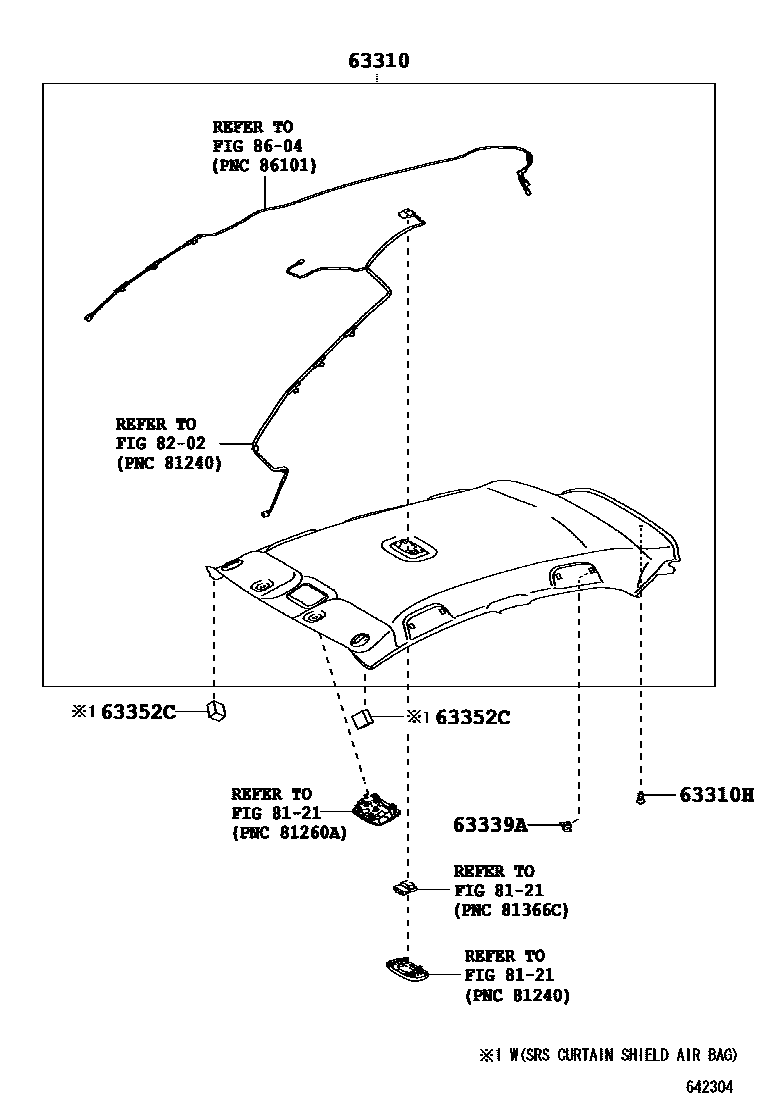

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-0D370-B0iZSP91200805-201008

GRAY,TRIM1#

main63310-0D371-B0iZSP91201008-201203

GRAY,TRIM1#

main63310-0D390-E0supersedes 63310-0D370-E0iNCP90200805-201008

GREGE,TRIM4#

main63310-0D391-B0iZSP91201203-201308

GRAY,TRIM1#

main63310-0D391-E0iZSP91201203-201308

GREGE,TRIM4#

main63310-0D390-B0iZSP91..STD200903-201008

1.6E GRADE,GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B6×2iZSP91200805-201308

GRAY,TRIM1#

main90467-05164-E2×2iZSP91..STD200805-201008

GREGE,TRIM4#

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-0D040-E0×6iNCP90200805-201308

GREGE,TRIM4#

main63339-0D040-B0×6iZSP91..STD200903-201008

1.6E GRADE,GRAY,TRIM1#

63352CPAD, ROOF HEADLINING, END

main63352-0D010×2iZSP91200805-201203

8121

8202

8604

7 parts on this diagram · 1 diagram in section
