43211KNUCKLE, STEERING, RH

main43211-0D200i200805

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2i200805

OD=15,TYPE A:REFER ILLUST.

main90109-15002i200805-201008

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003i200805-201008

OD=13.3,TYPE B:REFER ILLUST.

main90109-15004i200805

OD=12.4,TYPE B:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2i200805

43212KNUCKLE, STEERING, LH

main43212-0D200i200805-201008

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2i200805-201008

OD=15,TYPE A:REFER ILLUST.

main90109-15002i200805

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003i200805-201008

OD=13.3,TYPE B:REFER ILLUST.

main90109-15004i200805-201008

OD=12.4,TYPE B:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2i200805-201008

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i200805-201008

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i200805-201008

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-09120i200805-200909

main48068-09130i200909-201008

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086i200805-201008

(J)

main90119-C0137i200805

(L)

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14126i200805-201101

main90119-14144i201101-201210

main90119-14151i201211

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-09110i200805-200909

main48069-09120i200909-201008

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086i200805

(J)

main90119-C0137i200805-201008

(L)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14126i200805-201101

main90119-14144i201101-201210

main90119-14151i201211

9046816022

main90468-16022

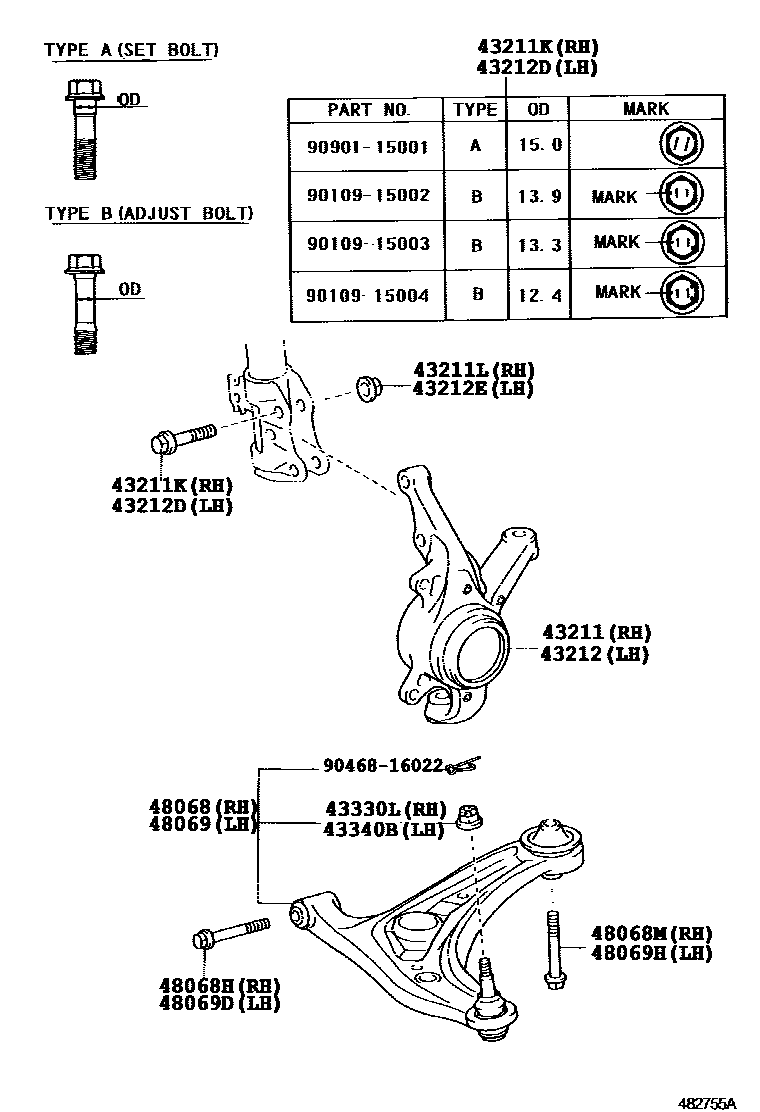

FRONT AXLE ARM & STEERING KNUCKLE
