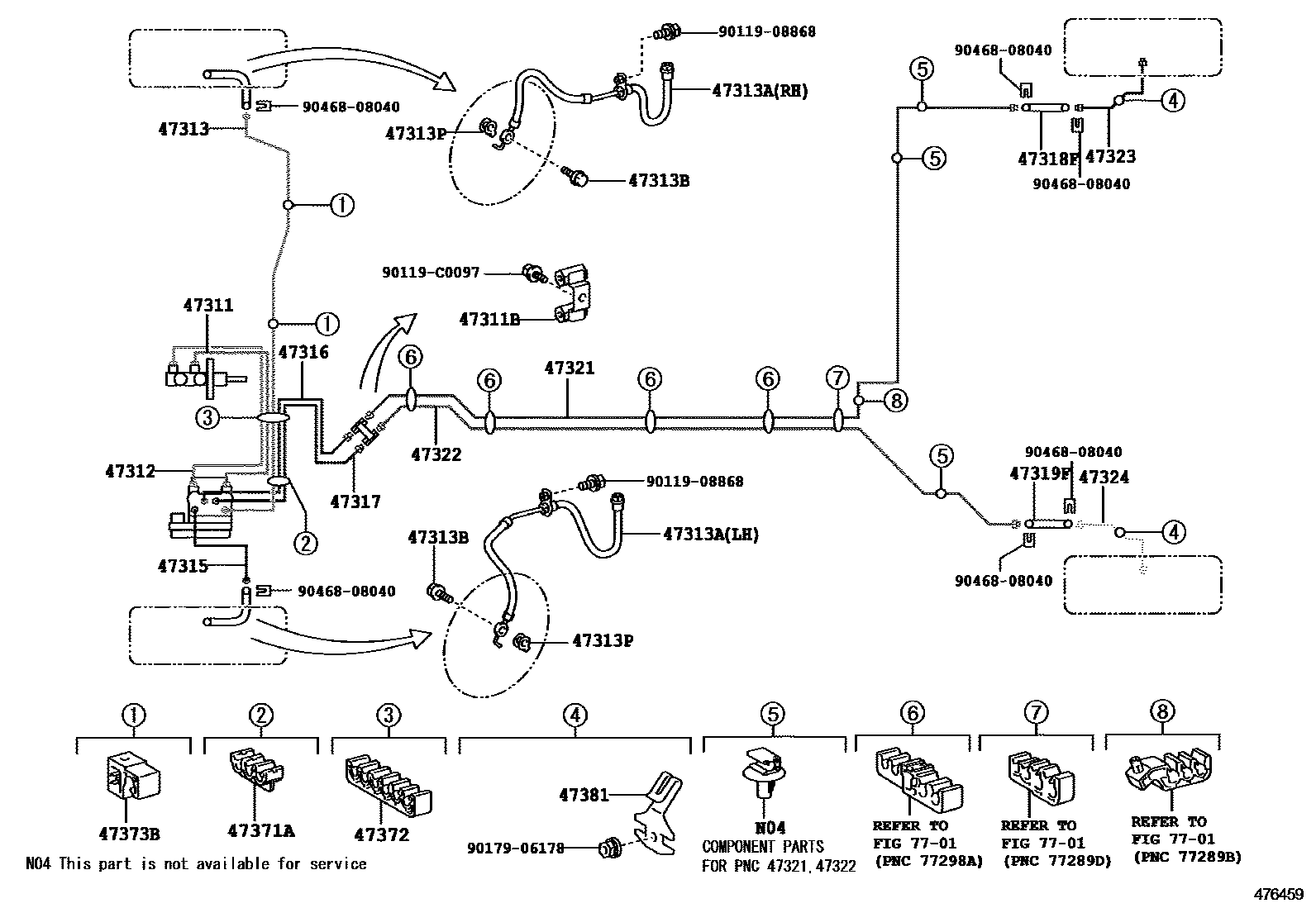

Toyota 110310 — BRAKE TUBE & CLAMP
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47381BRACKET, BRAKE TUBE CLAMP NO.1
7701FUEL TANK & TUBE
9011908868
90119C0097
9017906178
9046808040
25 parts on this diagram · 2 diagrams in section
BRAKE TUBE & CLAMP for Toyota 110310
This section contains 31 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota 110310. Key components include: ACTUATOR ASSY, BRAKE, CUSHION, BRAKE ACTUATOR BOLT, BRACKET ASSY, BRAKE ACTUATOR, TUBE, FRONT BRAKE, NO.1, WAY, NO.1(FOR FRONT BRAKE TUBE).
