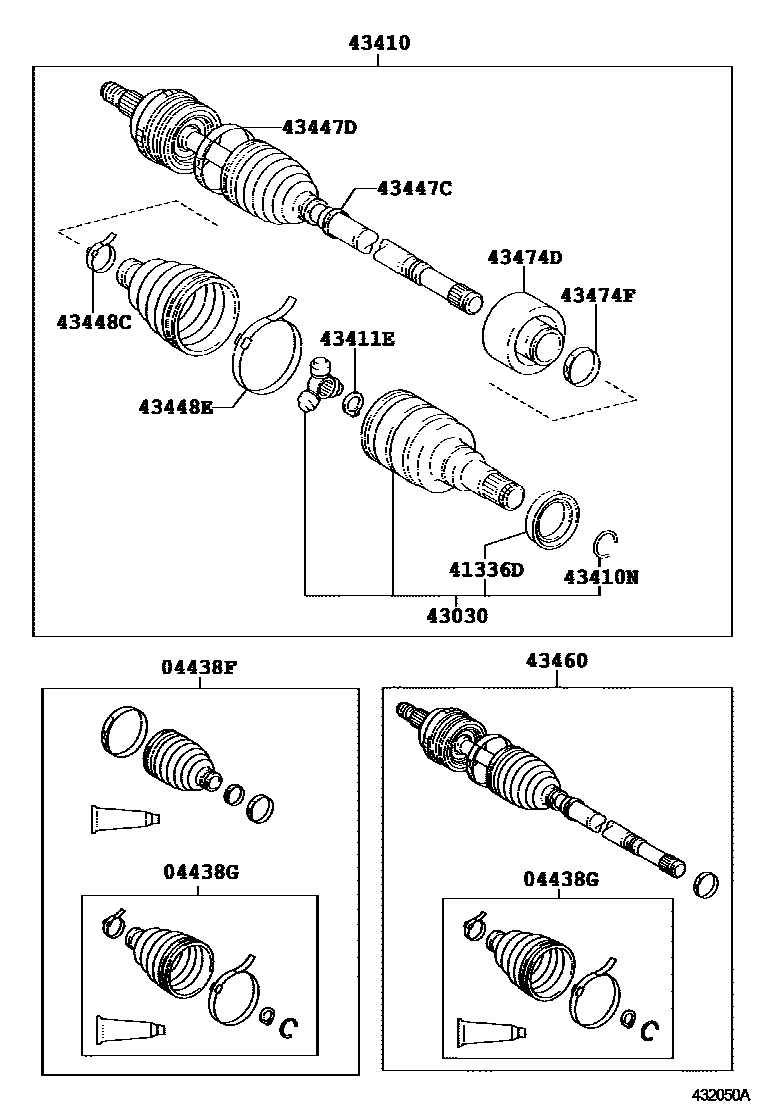

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D181iNCP90200805-200910

sub04427-0D182

main04427-0D182iNCP90200910

sub04427-0D184

main04427-0D191iZSP91..STD200805-201008

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02310iZSP91..RS200805-201008

sub04437-02311

main04437-0D140iNCP90200805

sub04437-0D142

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iZSP91..RS200805-201008

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-02110iZSP91..RS200805-201008

main43403-10011iNCP90200805

sub43403-0W031

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D300iNCP90200805-201308

sub43410-0D302

main43410-0D310iZSP91200805-201308

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iZSP91..RS200805-201008

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZSP91..RS200805-201008

main90520-22001iNCP90200805

sub90520-22029

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZSP91..RS200805-201008

main42345-52260iNCP90200805

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZSP91..RS200805-201008

main42345-52250iNCP90200805

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D420iNCP90200805

main42345-12230iZSP91..RS200805-201008

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZSP91..RS200805-201008

main90949-01146iNCP90200805

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09S60iNCP90200805

main43460-09S71iZSP91..STD200805-201008

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D100iZSP91..STD200805-201008

sub43474-0W090

main43474-0W050iNCP90200805

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06420iZSP91..RS200805-201008

14 parts on this diagram · 3 diagrams in section
