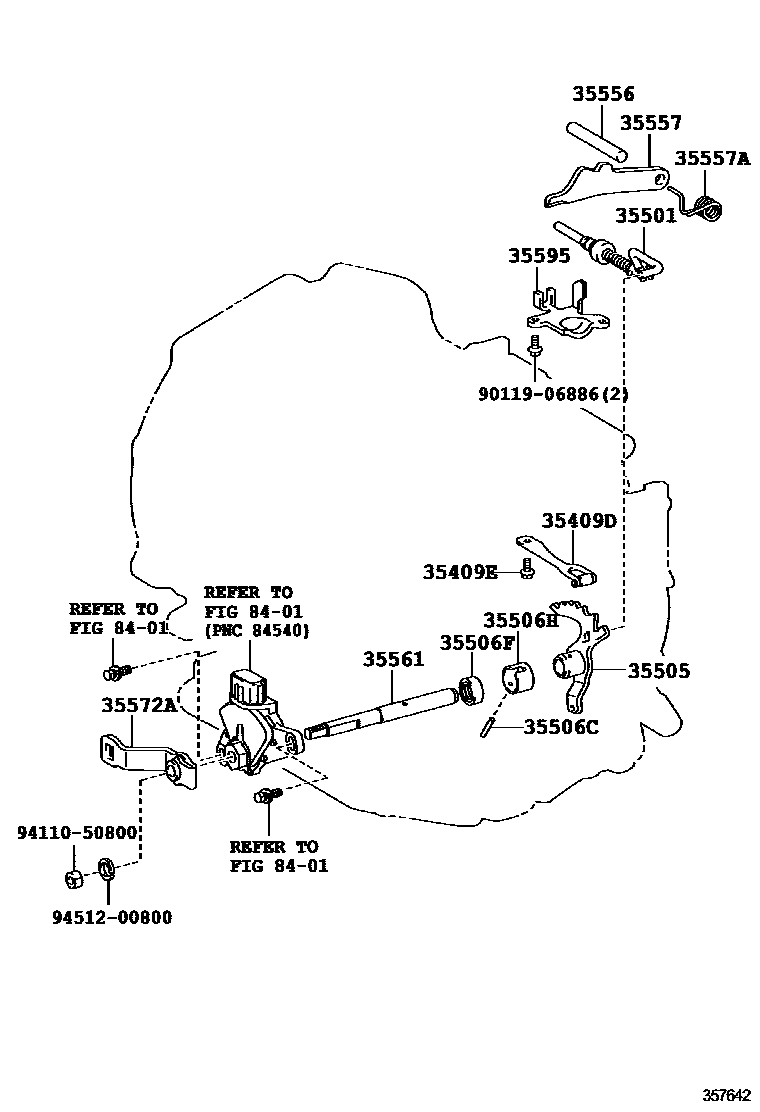

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U441E 0002 1U340E

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-52010iNCP90..4FC200805

main35409-52020iZSP91..4FC200805

35409EBOLT(FOR MANUAL DETENT SPRING)

main90105-06053iNCP90..4FC200805-201107

main90105-06261iNCP90..4FC201107

35501ROD SUB-ASSY, PARKING LOCK

main35501-52010iNCP90..4FC200805

main35501-52020iZSP91..4FC200805-201102

main35501-52021iZSP91..4FC201102

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12090iNCP90..4FC200805

main35505-20030iZSP91..4FC200805

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iNCP90,ZSP91..4FC200805

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iNCP90,ZSP91..4FC200805

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iNCP90..4FC200805

35556SHAFT, PARKING LOCK PAWL

main35556-32020iZSP91..4FC200805

main35556-52010iNCP90..4FC200805

35557PAWL, PARKING LOCK

main35557-52010iNCP90..4FC200805

main35557-52020iZSP91..4FC200805-201106

main35557-52021iZSP91..4FC201106

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03084iNCP90..4FC200805

main90949-03089iZSP91..4FC200805

35561SHAFT, MANUAL VALVE LEVER

main35561-52010iNCP90..4FC200805

main35561-52020iZSP91..4FC200805

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-52030iZSP91..4FC200805-201308

main35572-52080iNCP90..4FC200805-201308

35595BRACKET, PARKING LOCK PAWL

main35595-52010iNCP90..4FC200805

main35595-52020iZSP91..4FC200805

8401

9011906886

main90119-06886

9411050800

main94110-50800

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
