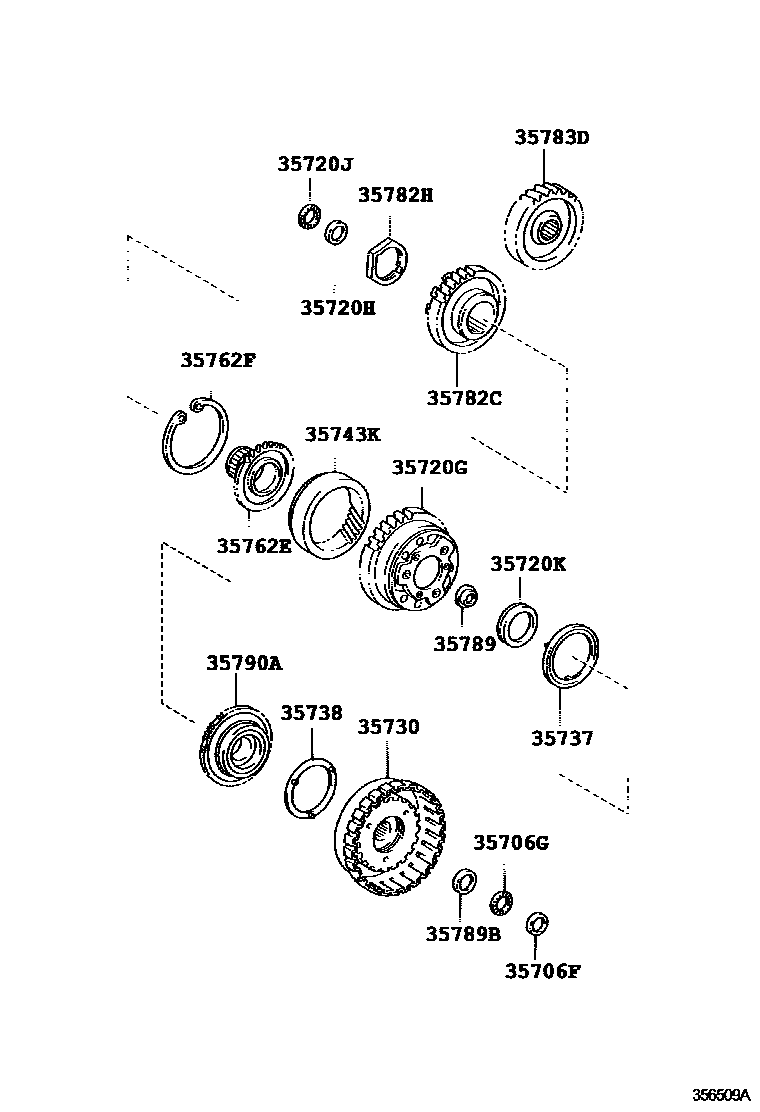

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U441E 0002 1U340E

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-52050iNCP90..4FC200805

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-18004iNCP90..4FC200805

35720GGEAR ASSY, PLANETARY

main35720-52010iNCP90..4FC200805-201107

main35720-52021iZSP91..4FC200805-201102

main35720-52022iZSP91..4FC201102

main35720-52070iNCP90..4FC201107

35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)

main35789-52010iNCP90..4FC200805

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-17001iNCP90..4FC200805

main90374-33006iZSP91..4FC200805

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-33007iZSP91..4FC200805

main90374-42006iNCP90..4FC200805

35730GEAR ASSY, REAR PLANETARY SUN

main35730-52010iNCP90..4FC200805

main35730-52020iZSP91..4FC200805

35737WASHER, PLANETARY CARRIER THRUST

main35737-52010iNCP90..4FC200805

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-52020iNCP90..4FC200805

35743KGEAR, PLANETARY RING

main35743-52010iNCP90..4FC200805

35762EFLANGE, PLANETARY RING GEAR

main35762-52010iNCP90..4FC200805

35762FRING, HOLE SNAP(FOR PLANETARY RING GEAR)

main90520-89003iNCP90..4FC200805

35782CGEAR, COUNTER DRIVE

main35782-52020iZSP91..4FC200805

main35782-52030iNCP90..4FC200805

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-40009iZSP91..4FC200805

main90179-44001iNCP90..4FC200805

35783DGEAR, COUNTER DRIVEN

main35783-52030iNCP90..4FC200805

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-52020iNCP90..4FC200805

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-52040iNCP90..4FC200805

35790ACLUTCH ASSY, 1 WAY

main35790-52010iNCP90..4FC200805

main35790-52020iZSP91..4FC200805

18 parts on this diagram · 2 diagrams in section
