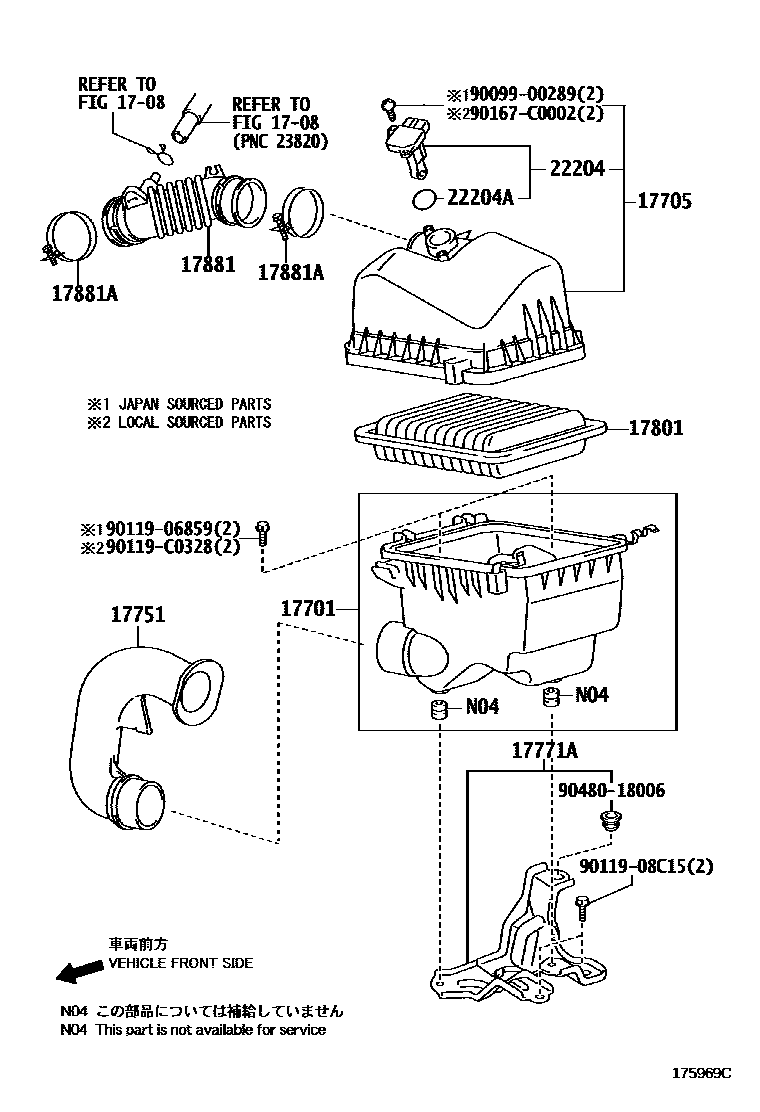

AIR CLEANER

0001 1 0002 1

1708

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T030i2NZFE..NCP90201102

main17701-0T050i1ZRFE..ZSP91200805-201102

17705CAP SUB-ASSY, AIR CLEANER

main17705-0M070i2NZFE..NCP90200805

main17705-0T070i1ZRFE..ZSP91200805-201102

sub17705-0T071

main17705-0T160i1ZRFE..ZSP91201102-201103

main17705-0T161i1ZRFE..ZSP91201104

17751INLET, AIR CLEANER, NO.1

main17751-0T090i1ZRFE..ZSP91..RS200805-201008

17771ABRACKET, AIR CLEANER

main17771-21050i1ZRFE..ZSP91..STD200805

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T020i2NZFE..NCP90200805

17881HOSE, AIR CLEANER, NO.1

main17880-0M080i2NZFE..NCP90200805

main17880-0T080i1ZRFE..ZSP91200805-201102

main17880-0T260i1ZRFE..ZSP91201102

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i1ZRFE..ZSP91201102

NO.1

main96111-10750i1ZRFE..ZSP91200805

NO.2

main96111-10780i1ZRFE..ZSP91200805-201102

NO.1

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T010i1ZRFE..ZSP91200805-201102

sub22204-0P010

main22204-0T040i1ZRFE..ZSP91201102-201104

main22204-22010i2NZFE..NCP90200805

main22204-28010i1ZRFE..ZSP91201104

MARK 22204-28010

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i2NZFE..NCP90200805

9009900289

main90099-00289

9011906859

main90119-06859

9011908C15

main90119-08C15

90119C0328

main90119-C0328

90167C0002

main90167-C0002

9048018006

main90480-18006

16 parts on this diagram · 2 diagrams in section
