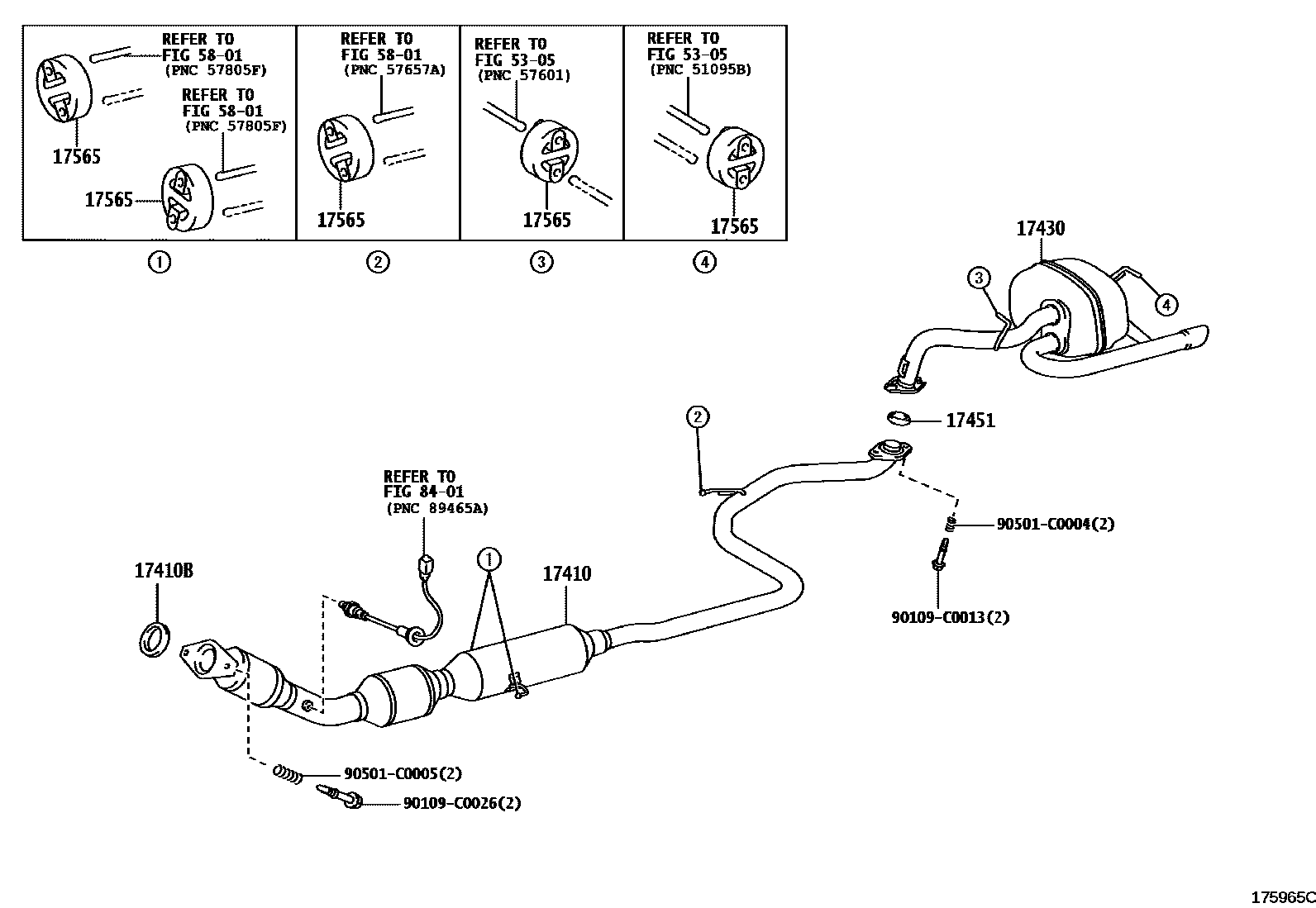

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0T100i200805-200812

main17410-0T101i200901-200910

main17410-0T102i200911-201102

main17410-0M190supersedes 17410-0M142i201206

EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)

EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)

17410BGASKET, EXHAUST PIPE

main17451-0T010i200805-201008

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T100i200805-200812

main17430-0T101i200901-200910

main17430-0T102i200911-201008

17451GASKET, EXHAUST PIPE

main17451-0T030i200805-201102

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0T030×5i200805-201304

main17565-0T060×5i201304-201308

5305

5801

8401

90109C0013

90109C0026

90501C0004

90501C0005

12 parts on this diagram · 1 diagram in section
