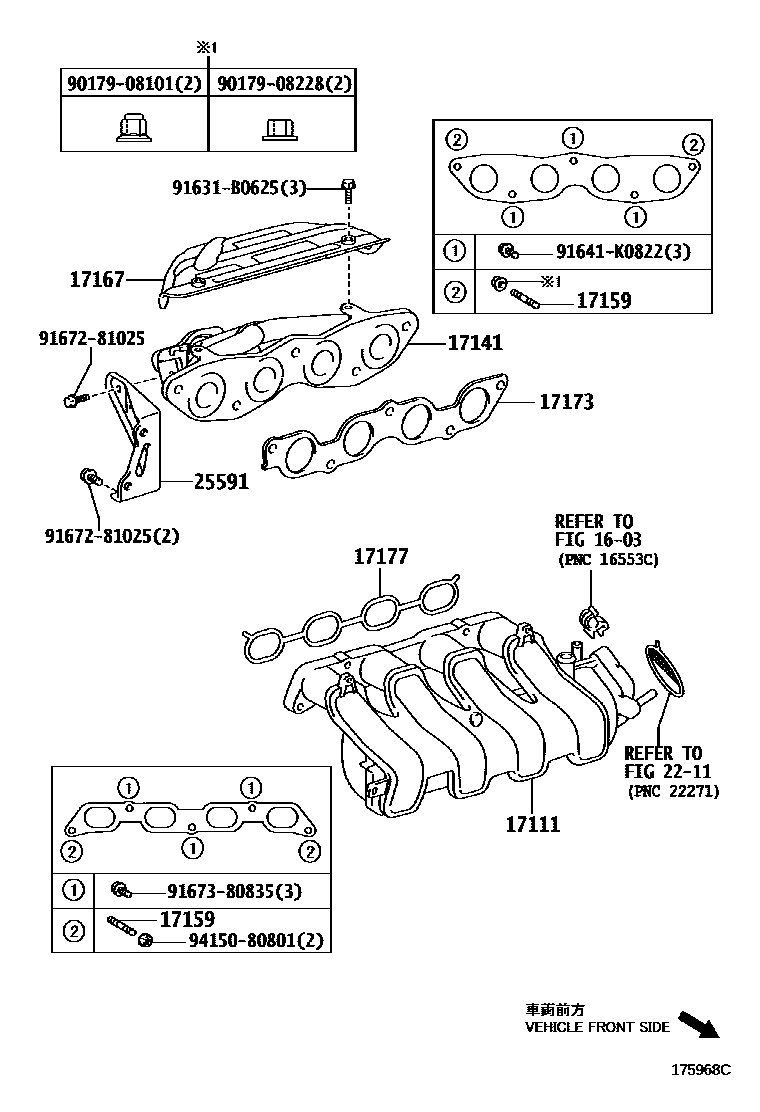

MANIFOLD
1603
17111MANIFOLD, INTAKE
STAMPING MODEL = 4ZR
17141MANIFOLD, EXHAUST
(L)
(L)
(J)
(J)
EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
STAMPING MODEL = 4ZR,NO.1
EXHAUST SIDE
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(L)
(J)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
25591BRACKET, MANIFOLD SUPPORT
9017908101
main90179-08101
9017908228
main90179-08228
91631B0625
main91631-B0625
91641K0822
main91641-K0822
9167281025
main91672-81025
9167380835
main91673-80835
9415080801
main94150-80801
16 parts on this diagram · 2 diagrams in section
