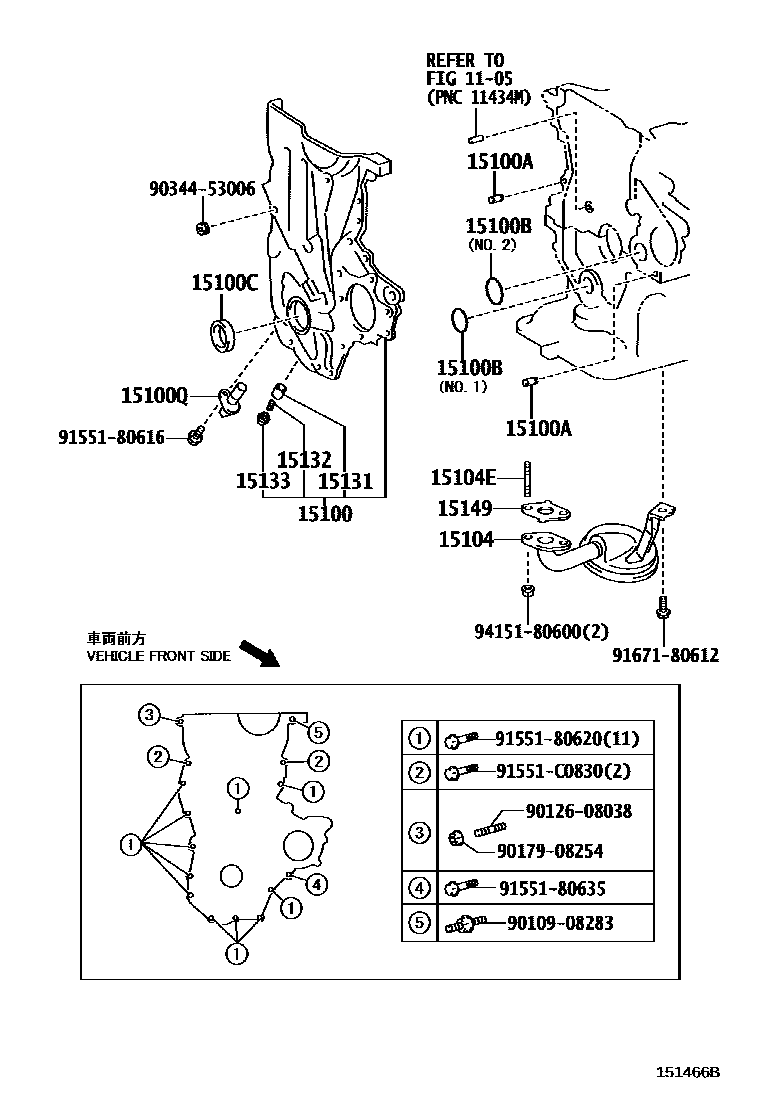

ENGINE OIL PUMP

0001 1 0002 1

1105

15100PUMP ASSY, OIL

main15100-0T010supersedes 15100-37030i1ZRFE..ZSP91..4FC..RS200811-201008

(L)

main15100-21030i2NZFE..NCP90200805-201111

main15100-21032i2NZFE..NCP90201111

main15100-37030i1ZRFE..ZSP91..4FC..RS200811-201008

(J)

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i2NZFE..NCP90200805

15100BRING, O(FOR OIL PUMP)

main11497-21010i2NZFE..NCP90201111

NO.2

main12151-21010i2NZFE..NCP90201111

NO.1

main90301-31012i2NZFE..NCP90200805-201111

NO.1

main90301-42006i2NZFE..NCP90200805-201111

NO.2

15100CSEAL(FOR OIL PUMP)

main90311-25021i2NZFE..NCP90200805-201204

main90311-25032i2NZFE..NCP90201204-201308

15100QSENSOR, CRANK POSITION

main90919-05045i2NZFE..NCP90200805-201105

main90919-05081i2NZFE..NCP90201105-201305

main90919-05087i2NZFE..NCP90201305

15104STRAINER SUB-ASSY, OIL

main15104-21022i2NZFE..NCP90200805

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i2NZFE..NCP90200805

15131VALVE, OIL PUMP RELIEF

main15131-0A040supersedes 15131-0A040i1ZRFE..ZSP91..4FC..RS200811-201008

STAMPING MODEL = 4ZR

main15131-21020i2NZFE..NCP90200805

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i2NZFE..NCP90200805

main15132-46060supersedes 15132-46060i1ZRFE..ZSP91..4FC..RS200811-201008

STAMPING MODEL = 4ZR

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i2NZFE..NCP90200805

main15133-28020supersedes 15133-28020i1ZRFE..ZSP91..4FC..RS200811-201008

STAMPING MODEL = 4ZR

15149GASKET, OIL STRAINER FLANGE

main16258-21030i2NZFE..NCP90200805

9010908283

main90109-08283

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

22 parts on this diagram · 2 diagrams in section
