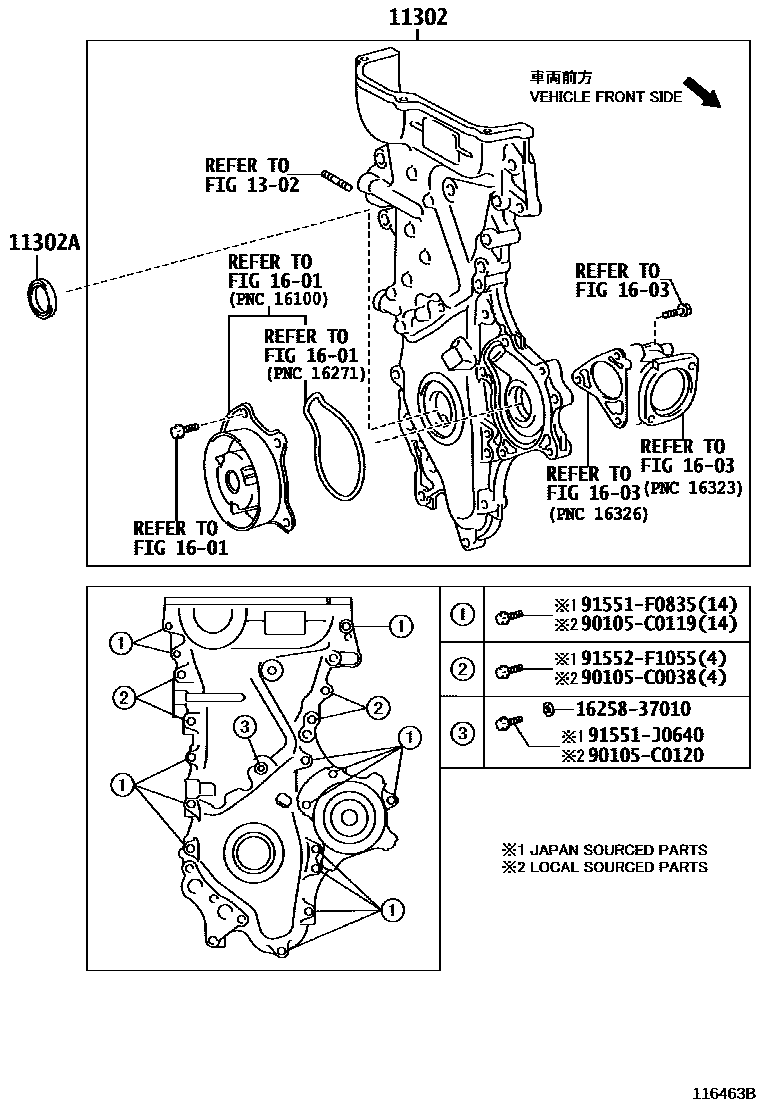

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T060supersedes 11310-37020i1ZRFE..ZSP91..5F200812-200909

(L); STAMPING MODEL = 4ZR,(L)

main11310-0T061i1ZRFE..ZSP91200909

(L); STAMPING MODEL = 4ZR,(L)

main11310-37020i1ZRFE..ZSP91..5F200812-201201

(J); STAMPING MODEL = 4ZR,(J)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-T0024i1ZRFE..ZSP91..4FC..RS200811-201008

STAMPING MODEL = 4ZR

main90311-38089i1ZRFE..ZSP91200805-201008

STAMPING MODEL = 4ZR

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

90105C0038

main90105-C0038

90105C0119

main90105-C0119

90105C0120

main90105-C0120

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

12 parts on this diagram · 1 diagram in section
