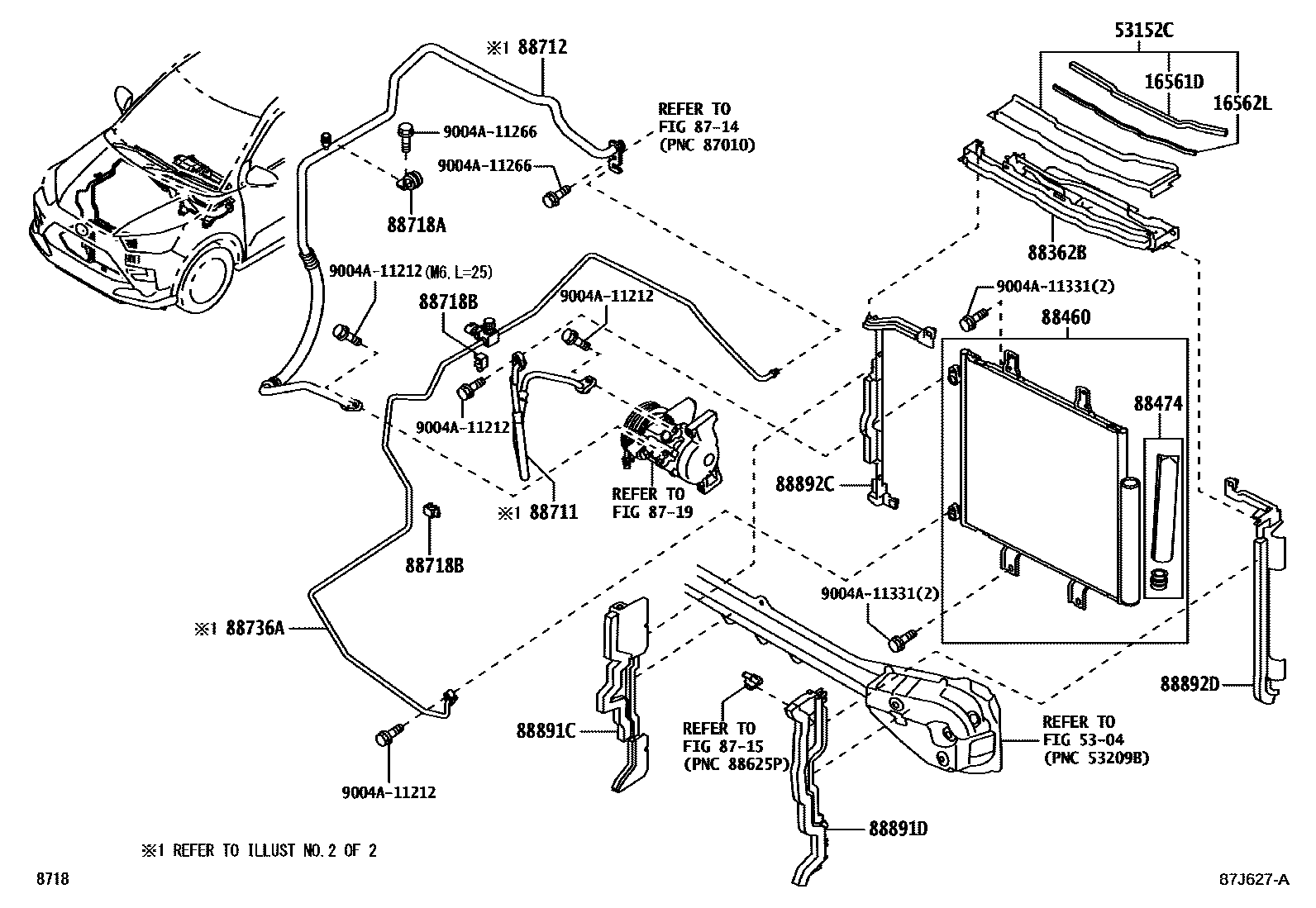

HEATING & AIR CONDITIONING - COOLER PIPING

0001 11KRVET(CONDENSER) 0002 1WAVE(CONDENSER) 0003 1TUBE ASSY 0004 11KRVET(CONDENSER) 0005 1WAVE(CONDENSER) 0006 1TUBE ASSY 0007 11KRVET(CONDENSER) 0008 1WAVE(CONDENSER) 0009 1TUBE ASSY

16561DSEAL, RADIATOR TO SUPPORT, NO.1

main75529-BZ010i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

16562LSEAL, RADIATOR TO SUPPORT, NO.2

main75529-BZ020i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53152CGUIDE, RADIATOR GRILLE AIR

main53152-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88362BPLATE, SEAL

main53039-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88460CONDENSER ASSY, COOLER

main88460-BZ320iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88474DRYER, COOLER

main88474-B2010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZ650iA251..5F;A251..CVT..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

main88711-BZ760iA250..GEN,IDN,PHL202104-202607

main88711-BZ800iA251..GCC202110-202608

main88711-BZ810iA250..GCC202110-202608

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-BZ700iA25#..RHD202104-202607

main88712-BZ820iA251..LHD..5F;A250..LHD..(GEN,PHL);A251..LHD..CVT..(V,X)..(CHL,GEN,PHL)202108-202608

main88712-BZ870iA25#..GCC202110-202608

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-BZ800iA251..5F;A250..GEN,IDN,PHL;A251..CVT..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

main88718-BZ810iA25#..GCC202110-202608

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-13060iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-BZF10iA25#..RHD202104-202607

main88716-BZF30iA251..LHD..5F;A250..LHD..(GEN,PHL);A251..LHD..CVT..(V,X)..(CHL,GEN,PHL)202108-202608

main88716-BZF40iA25#..GCC202110-202608

88891CPACKING C (FOR COOLER)

main53395-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88891DPACKING D (FOR COOLER)

main53396-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88892CPLATE, CONDENSER, NO.1

main53037-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

88892DPLATE, CONDENSER, NO.2

main53038-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

9004A11212

main9004A-11212

9004A11266

main9004A-11266

9004A11331

main9004A-11331

22 parts on this diagram · 9 diagrams in section
