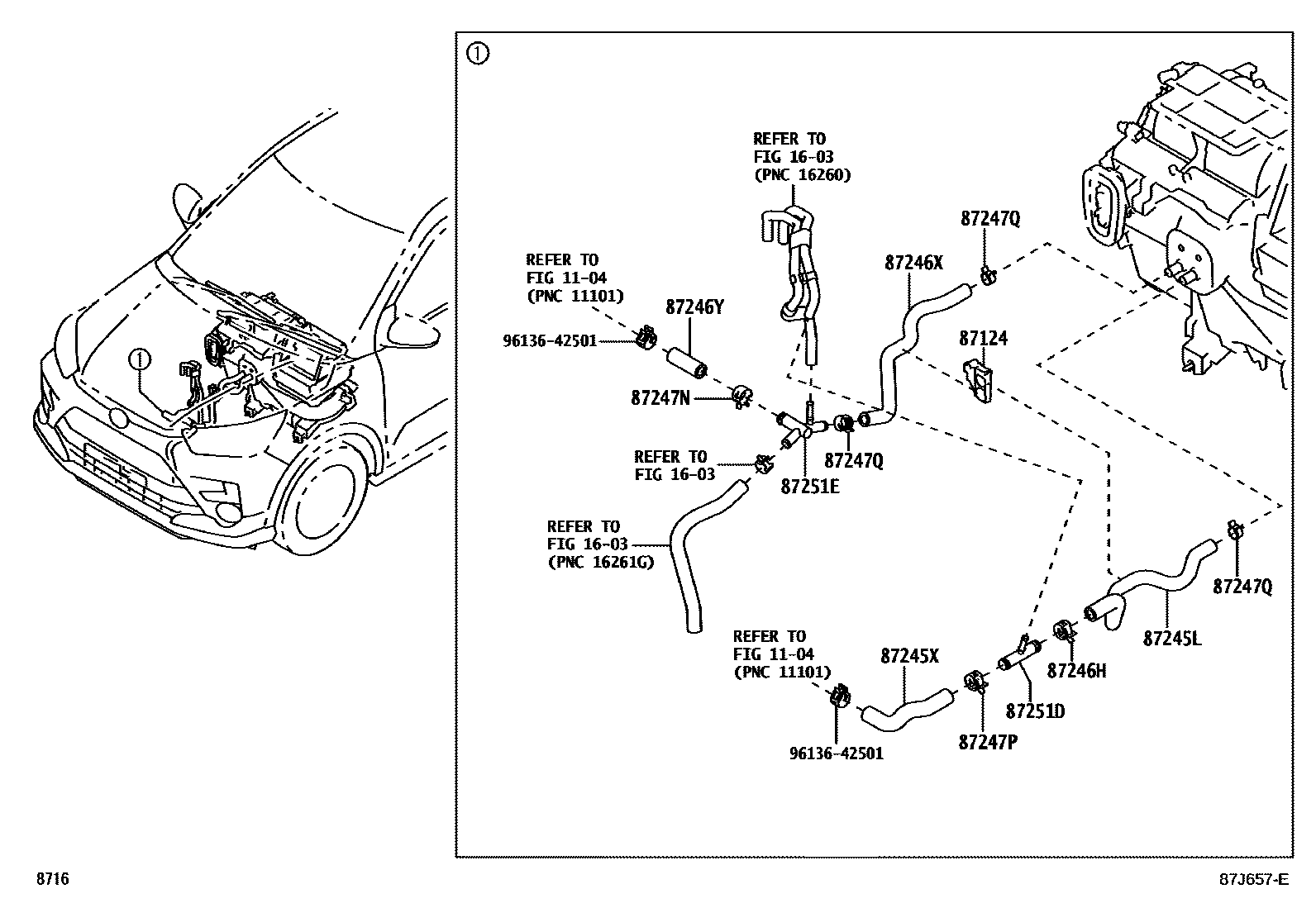

HEATING & AIR CONDITIONING - WATER PIPING

0001 11KRVET(CVT) 0002 11KRVET(MTM) 0003 1WAVE(W/O EGR)

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87124CLAMP, HEATER

main87124-B1010iA250..GCC,GEN202108-202608

main87124-B2080iA251..L..GCC;A251..5F..(CHL,GEN);A251..CVT..(V,X)..(CHL,GCC,GEN)202108-202608

87245LHOSE, HEATER WATER, L

main87245-BZ290iA251..RHD..GEN202108-202607

main87245-BZ310iA250..RHD..GEN202108-202607

main87245-BZ330iA251..CHL202108-202507

main87245-BZ350iA250..LHD..(GCC,GEN)202108-202608

87245XHOSE, HEATER WATER

main16261-BZ470iA250..GCC,GEN202108-202608

L=163

main87245-BZ300iA251..5F..CHL202108-202507

L=168

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96137-52501iA251..L..GCC;A250..GCC,GEN;A251..5F..(CHL,GEN);A251..CVT..(V,X)..(CHL,GCC,GEN)202108-202608

87246XHOSE, HEATER WATER

main87246-BZ240iA251..RHD..GEN202108-202607

L=367

main87246-BZ250iA250..RHD..GEN202108-202607

L=365

main87246-BZ280iA251..CHL202108-202507

L=463

main87246-BZ290iA250..LHD..(GCC,GEN)202108-202608

L=421

87246YHOSE, HEATER WATER

main16261-BZ460iA250..GCC,GEN202108-202608

87247NCLIP, HOSE

main9004A-46377iA251..CHL202108-202507

main96136-42501iA250..GCC,GEN202108-202608

87247PCLIP, HOSE

main96136-42501iA250..GCC,GEN202108-202608

87247QCLIP, HOSE

main96136-42101×3iA250..GCC,GEN202108-202608

87251JOINT OR UNION, WATER HOSE THROUGH

main16035-B0010iA251..CHL202108-202507

87251DJOINT, WATER, NO.1

main16291-BZ130iA250..GCC,GEN202108-202608

87251EJOINT, WATER, NO.2

main16291-BZ120iA250..CVT..(GCC,GEN)202108-202608

main16291-BZ150iA250..5F..GEN202108-202607

main16291-BZ160iA251..CHL202108-202507

9613642501

main96136-42501

15 parts on this diagram · 3 diagrams in section
