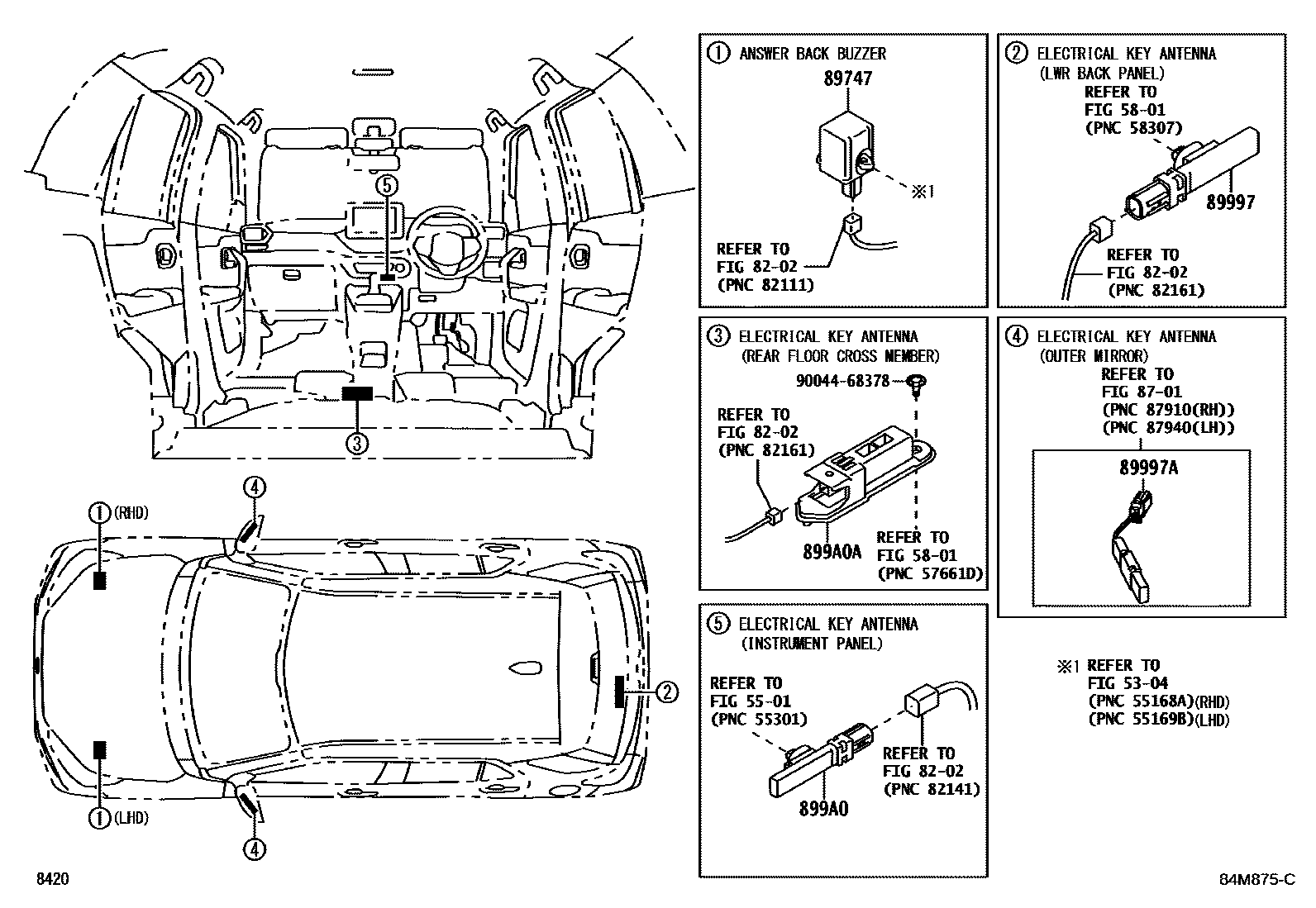

WIRELESS DOOR LOCK

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

89997ANTENNA, ELECTRICAL KEY

main89997-BZ060iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-BZ020iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main89997-BZ010iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main89997-BZ030iA251..V;A251..IDN;A250..GEN,IDN,PHL202303-202608

main89997-BZ090iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202303

9004468378

main90044-68378

11 parts on this diagram · 2 diagrams in section
