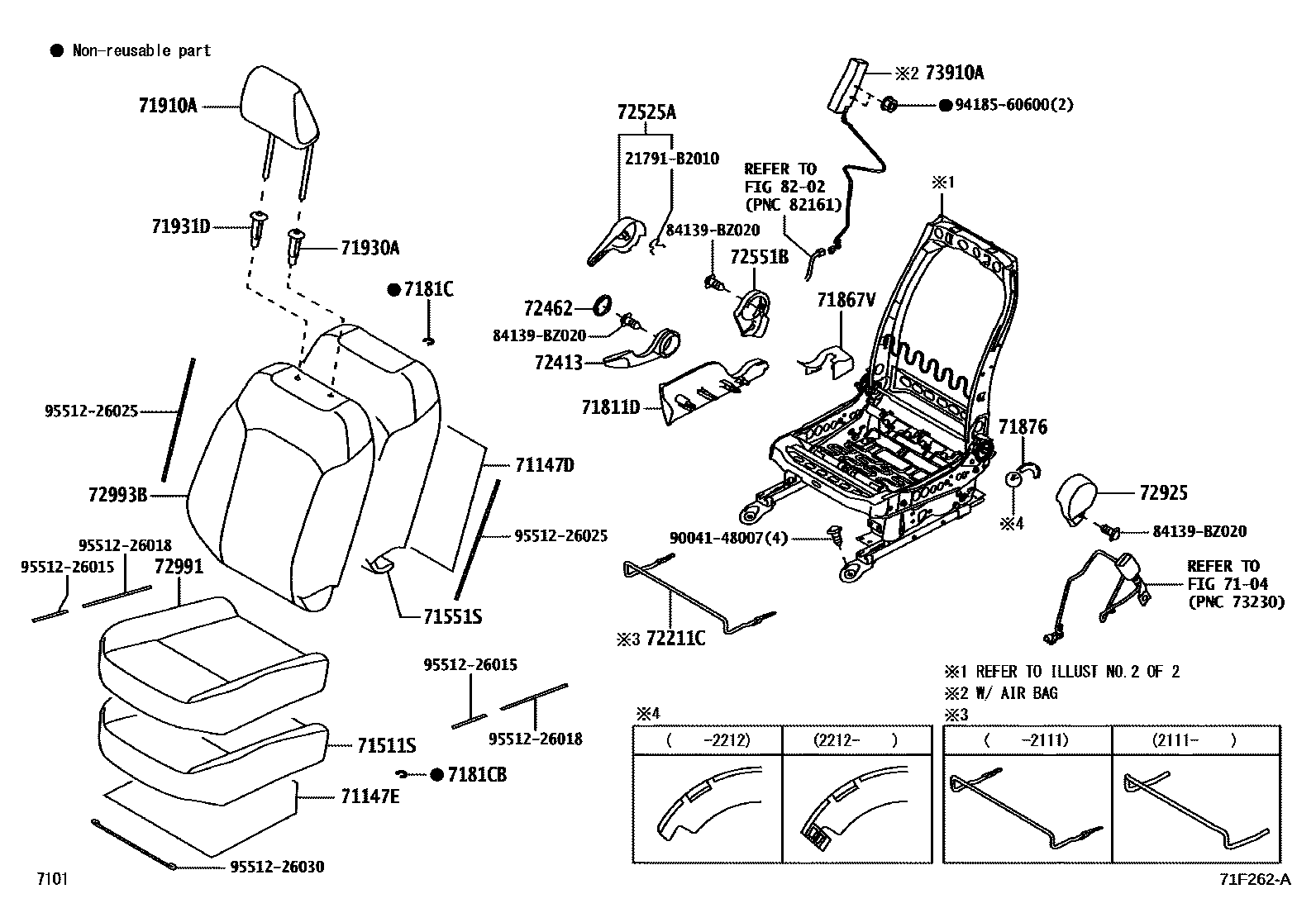

FRONT SEAT & SEAT TRACK

0001 1RH 0002 1LH 0003 1RH(SEAT FRAME) 0004 1RH(SEAT FRAME) 0005 1LH(SEAT FRAME) 0006 1LH(SEAT FRAME) 0007 1RH 0008 1LH 0009 1RH(SEAT FRAME) 0010 1RH(SEAT FRAME) 0011 1LH(SEAT FRAME) 0012 1LH(SEAT FRAME)

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71147DSILENCER, SEAT SPRING, RH(FOR SEATBACK)

main71147-B2160iA25#202104-202209

main71147-BZ180iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202210-202608

71147ESILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

main71147-B1020iA25#202104-202209

main71147-BZ160iA251..5F;A251..L..GCC;A250..GCC,IDN;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202210-202608

main71147-BZ170iA251..V..CHL;A250..GEN,PHL202210-202608

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ550iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ550iA251..5F;A251..L..GCC;A250..GCC,IDN;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

main71505-BZ600iA251..V..CHL;A250..GEN,PHL202108-202608

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ320-C0iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

BLACK,TRIM2#

main71811-BZ330-C0iA25#..RHD202104-202607

BLACK,TRIM2#

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main9004A-46143×10iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main9004A-46143×11iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-B1010-C0iA25#..RHD202104-202607

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-B2060-C0iA25#202104-202212

BLACK,TRIM2#

main71876-BZ250-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202212-202608

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-BZG50-C5iA250..X;A251..5F;A25#..(L,V)..GCC;A251..CVT..X..CHL;A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202104-202608

-,TRIM2#

main71910-BZG60-C5iA251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

BLACK,TRIM2#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-B2030-C0×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

W(LOCK),BLACK,TRIM2#

71931DSUPPORT, FRONT SEAT HEADREST, RH

main71931-B2030-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-B1050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202111-202608

main72211-B2150iA25#202104-202111

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-B1050iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202111-202608

main72211-B2150iA25#202104-202111

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-BZ070-C0iA25#..RHD202104-202311

BLACK,TRIM2#

main72413-BZ071-C0iA25#..RHD202312-202607

BLACK,TRIM2#

main72413-BZ090-C0iA250..LHD;A251..V..PHL;A251..LHD..(CHL,GCC,GEN)202108-202311

BLACK,TRIM2#

main72413-BZ091-C0iA250..LHD;A251..LHD..5F..(CHL,GEN);A251..CVT..(L,V)..(CHL,GCC,PHL);A251..LHD..CVT..X..(CHL,GCC,GEN)202312-202608

BLACK,TRIM2#

72462COVER, VERTICAL ADJUSTER RH

main72462-BZ060-C0iA25#..RHD202104-202607

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-BZ140-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72551BCOVER, RECLINING HINGE, RH

main72551-BZ070-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72925COVER, FRONT SEAT CUSHION

main72991-BZ250-C0iA25#202104-202205

BLACK,TRIM2#

main72991-BZ340-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202206-202608

BLACK,TRIM2#

72991COVER, FRONT SEAT CUSHION, RH

main71071-BZP10-C4iA250..GCC;A251..LHD..X;A251..V..PHL202108-202608

BLACK,TRIM2#

main71071-BZP20-C5iA25#..RHD..X202104-202607

BLACK,TRIM2#

main71071-BZP31-C5iA251..V..CHL;A250..LHD..(GEN,PHL)202108-202608

BLACK,TRIM2#

main71071-BZP40-C4iA250..V202104-202106

BLACK,TRIM2#

main71071-BZP41-C4iA250..RHD..V202107-202607

BLACK,TRIM2#

main71071-BZP70-C2iA251..5F..L;A251..L..GCC202108-202608

BLACK,TRIM2#

72993COVER, FRONT SEATBACK

main72993-B2010-C0iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

BLACK,TRIM2#

72993BCOVER, FRONT SEATBACK, RH

main71073-BZQ30-C2iA25#..RHD..X202104-202607

BLACK,TRIM2#

main71073-BZQ60-C3supersedes 71073-BZQ50-C4iA250..RHD..GEN202108-202607

BLACK,TRIM2#

main71073-BZQ70-C2iA250..GCC;A251..LHD..X;A251..V..PHL202108-202608

BLACK,TRIM2#

main71073-BZR30-C0iA251..5F..L;A251..L..GCC202108-202608

BLACK,TRIM2#

main71073-BZR70-C2iA251..V..CHL;A250..LHD..(GEN,PHL)202108-202608

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-BZ040iA251..V..CHL;A250..GEN,PHL202108-202608

8202WIRING & CLAMP

→ Go to FIG 82-02

21791B2010RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-B2010

84139BZ020

main84139-BZ020

9004148007

main90041-48007

9418560600

main94185-60600

9551226015

main95512-26015

9551226018

main95512-26018

9551226025

main95512-26025

9551226030

main95512-26030

33 parts on this diagram · 12 diagrams in section
