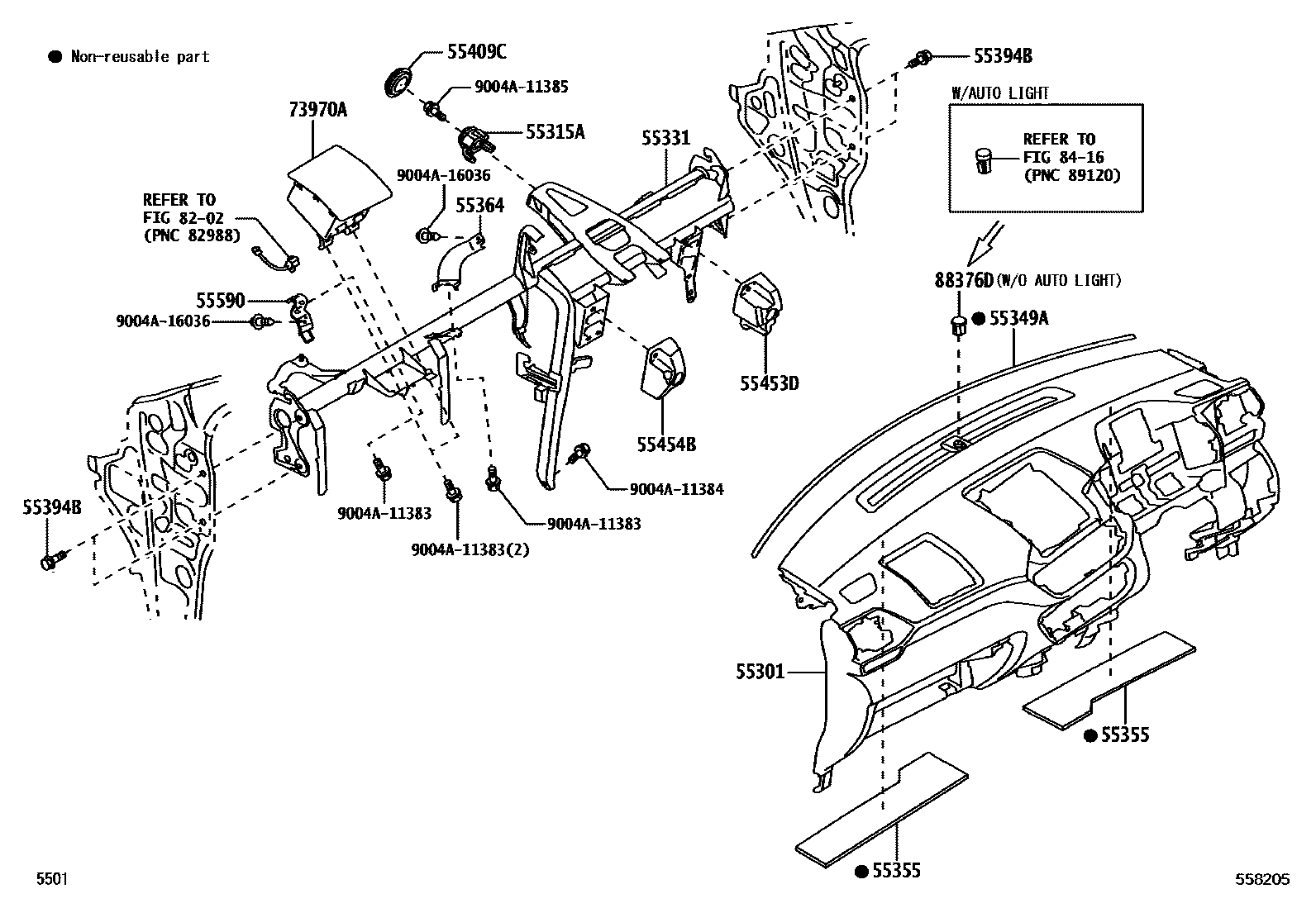

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0013 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ850-C0iA25#..IDN202104-202606

BLACK,TRIM2#

main55311-BZ860-C0iA251..LHD..5F;A250..LHD..(GEN,PHL);A251..LHD..CVT..(V,X)..(CHL,GEN,PHL)202108-202608

BLACK,TRIM2#

main55311-BZ870-C0iA25#..RHD..GEN202108-202607

BLACK,TRIM2#

main55311-BZ880-C0iA25#..GCC202110-202608

BLACK,TRIM2#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZB60iA25#..RHD..CVT202104-202607

main55305-BZB70iA25#..RHD..5F202104-202607

main55305-BZB80iA250..LHD..CVT;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main55305-BZB90iA25#..LHD..5F202108-202608

55349ACUSHION, INSTRUMENT PANEL

main55349-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-BZ130iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55364BRACKET, RADIO TUNER MOUNTING

main55365-BZ010iA25#..RHD202104-202607

main55365-BZ020iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55409CPLUG, HOLE

main90048-71319iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ120iA25#..RHD202104-202607

main55453-BZ130iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ130iA25#..RHD202104-202607

main55454-BZ140iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-BZ080iA25#..RHD202104-202607

main55590-BZ090iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ280-C0iA25#..RHD202104-202607

BLACK,TRIM2#

main73970-BZ290-C0iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

BLACK,TRIM2#

8202WIRING & CLAMP

→ Go to FIG 82-02

8416AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

→ Go to FIG 84-16

88376DCAP, BLIND

main88376-B2010iA25#..(L,X)..GCC202104-202608

9004A11383

main9004A-11383

9004A11384

main9004A-11384

9004A11385

main9004A-11385

9004A16036

main9004A-16036

19 parts on this diagram · 12 diagrams in section
