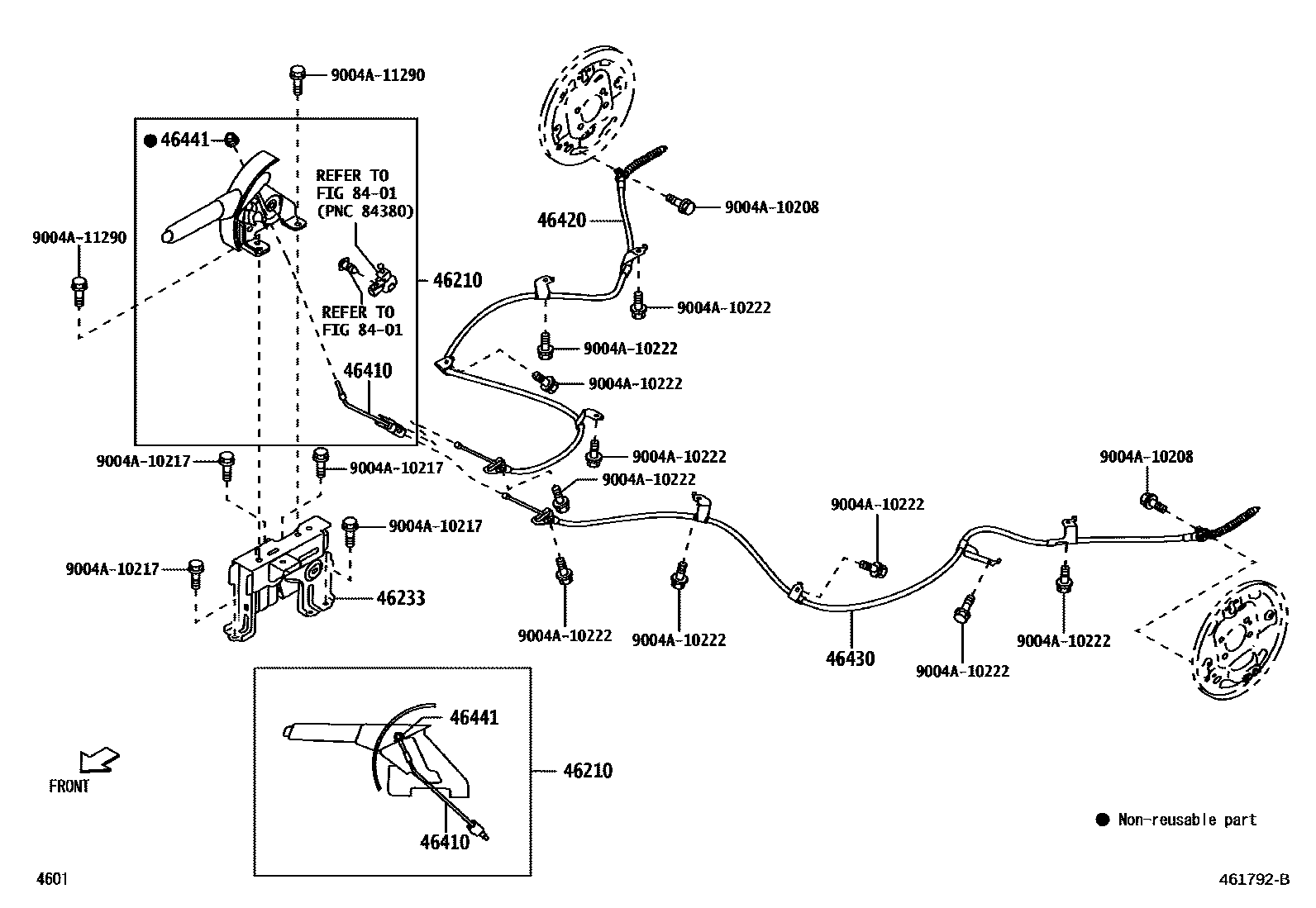

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-BZ240-C0iA251..5F..L;A251..X..PHL;A251..L..GCC202108-202608

BLACK

main46210-BZ250-C0iA250;A251..V..PHL;A251..(V,X)..(CHL,GCC,GEN,IDN)202104-202608

BLACK

46233SUPPORT, PARKING BRAKE CENTER

main46233-BZ040iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-BZ130iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ300iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ300iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

46441NUT, WIRE ADJUSTING, NO.1

main90041-78060iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8401

9004A10208

main9004A-10208

9004A10217

main9004A-10217

9004A10222

main9004A-10222

9004A11290

main9004A-11290

11 parts on this diagram · 1 diagram in section
