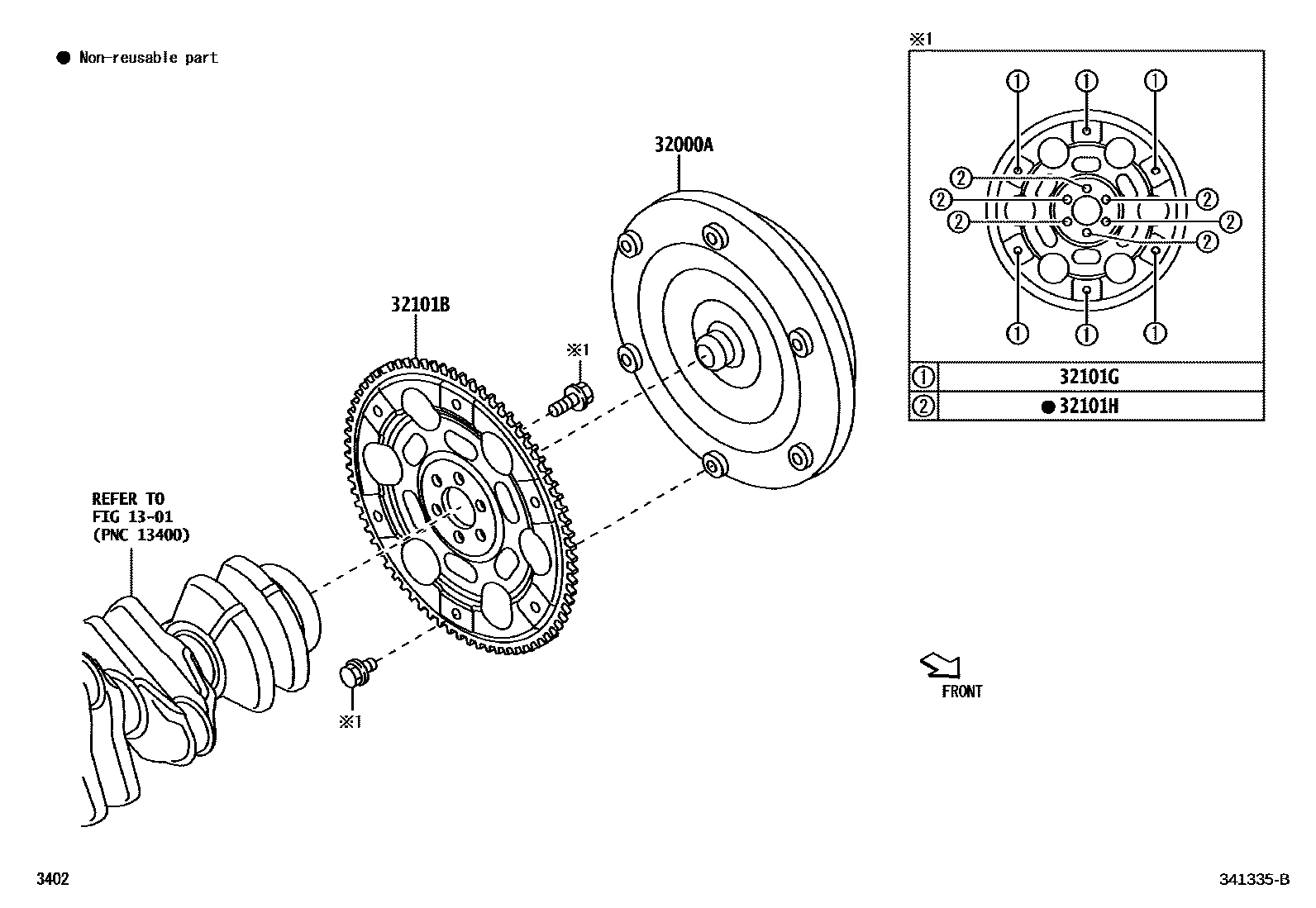

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

32000ACONVERTER ASSY, TORQUE

main32000-B2230iA250..CVT202104-202608

main32000-B2240iA251..CVT202104-202307

IDENTIFICATION M01

main32000-B2280iA251..L..GCC;A251..CVT..(V,X)202211-202608

IDENTIFICATION M04

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B1070iA250..CVT202104-202608

main32101-B1080iA251..CVT202104-202608

main32101-BZ120iA251..L..GCC;A251..CVT..(V,X)202302-202608

##

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05595iA251..L..GCC;A25#..CVT..(V,X)202104-202608

M8,L=9,SILVER(M8,L=9)

main90041-05596iA251..L..GCC;A25#..CVT..(V,X)202104-202608

M8,L=9,BLACK(M8,L=9)

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90041-05601iA251..CVT202104-202210

main9004A-10200iA250..CVT202104-202608

main9004A-10277iA251..L..GCC;A251..CVT..(V,X)202211-202608

5 parts on this diagram · 1 diagram in section
