CLUTCH RELEASE CYLINDER

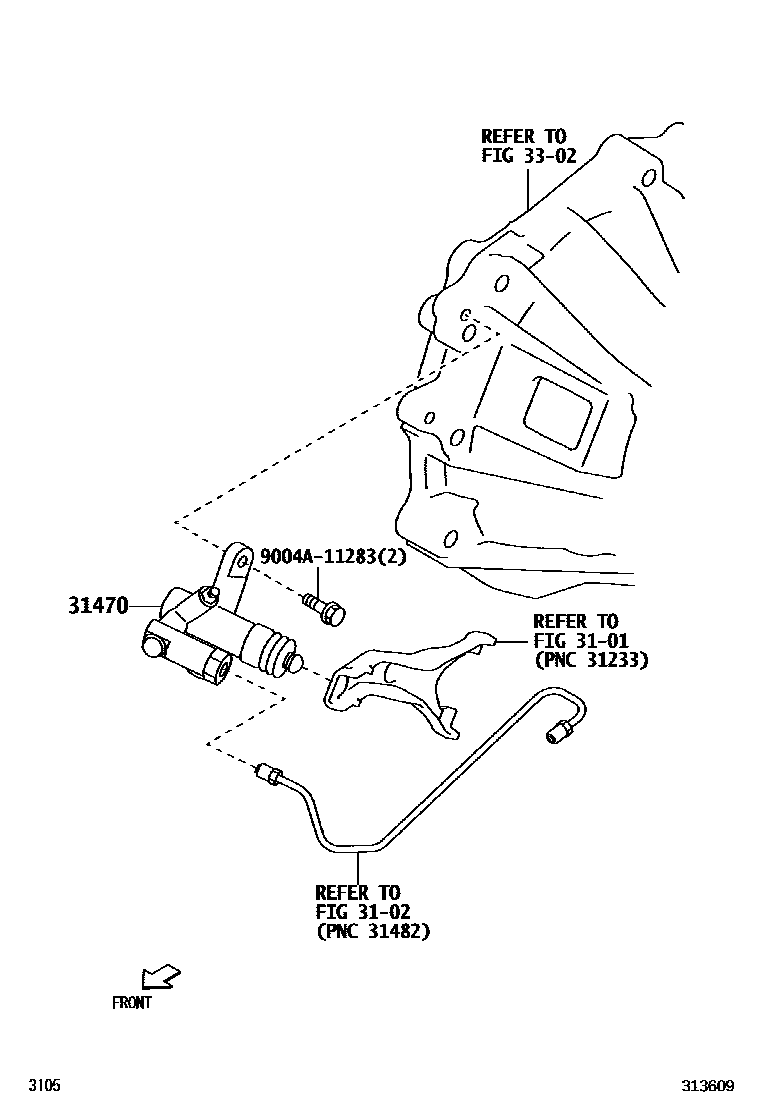

Parts diagram

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-BZ040i202104-202607

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

9004A11283

main9004A-11283

5 parts on this diagram · 1 diagram in section
