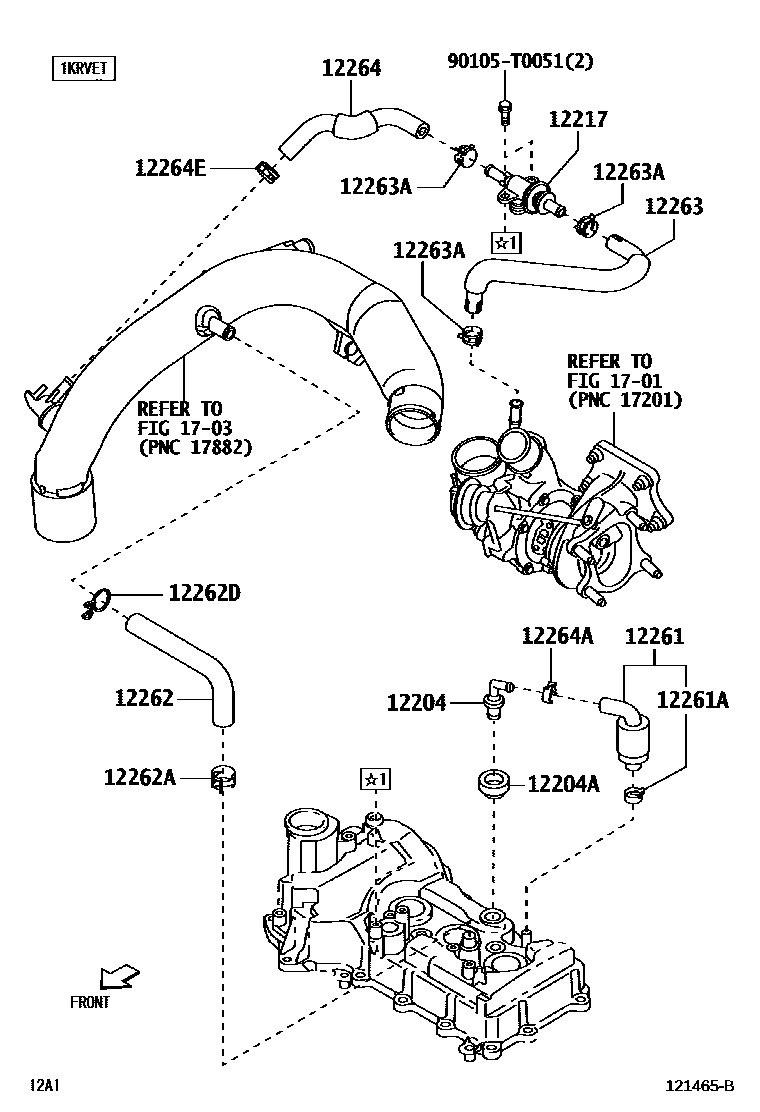

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12204AGROMMET(FOR VENTILATION SYSTEM)
12217EJECTOR, VENTILATION
12261HOSE, VENTILATION
W/PROTECTOR
W/O(PROTECTOR)
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12262DCLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
12264HOSE, VENTILATION, NO.4
12264ACLIP(FOR VENTILATION HOSE)
12264ECLIP(FOR VENTILATION HOSE)
1701MANIFOLD
1703AIR CLEANER
90105T0051
main90105-T0051
16 parts on this diagram · 3 diagrams in section
