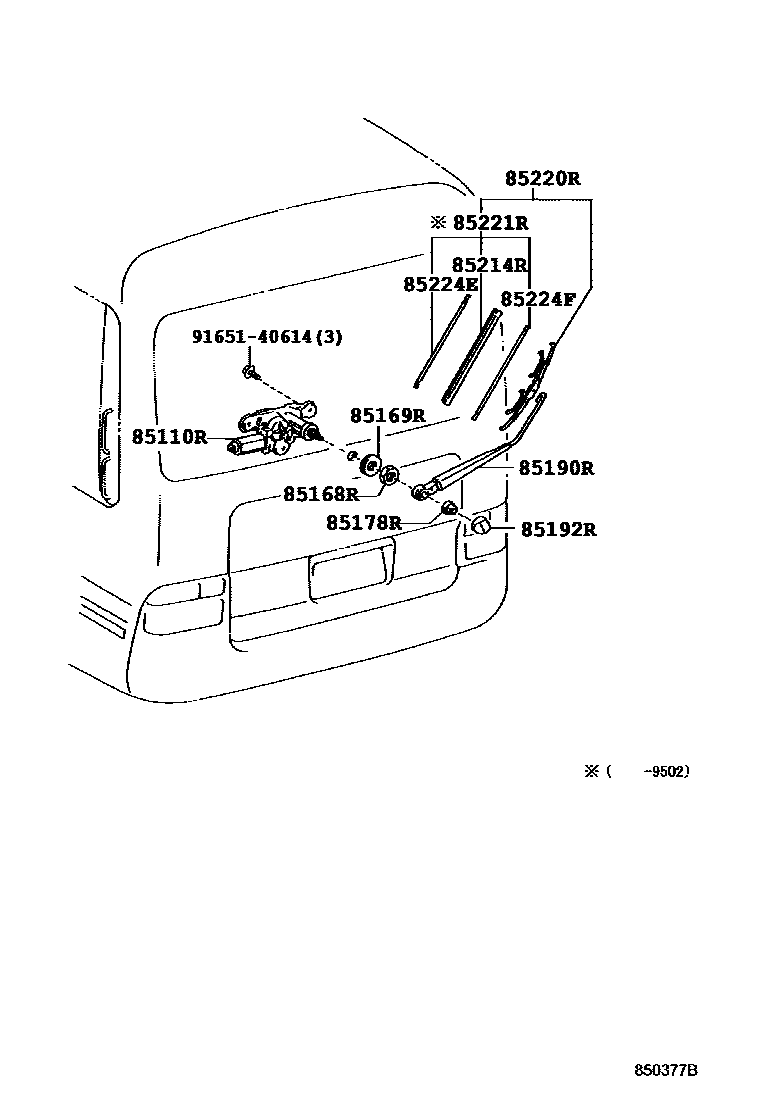

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-36010iHZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

12V

main85130-36020iBB42..WOC;BB42..RHD..HRF;BB50,HZB50..30S;BB42..LHD..SRF..WC199301-201501

24V

sub85130-36030

main85130-36030iBB42;HZB50..30S201501

24V

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-201501

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06070iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-200008

sub90179-06159

main90179-06158iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN200008-201501

85190RARM ASSY, REAR WIPER

main85241-36010iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199301-199705

sub85241-36011

main85241-36011iBB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S199705-201501

85192RCOVER, REAR WIPER ARM

main85292-36010iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

85214RRUBBER, REAR WIPER

main85214-10100iHZB50..(GCC,GEN)..5F;BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199705-201501

main85214-20340iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199502-199705

sub85214-50090

85220RBLADE ASSY, REAR WIPER

main85242-36010iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199301-199705

sub85242-60060

main85242-60050iBB50..GEN..6F199705-201501

85221RBLADE, REAR WIPER

main85243-36010iBB42,HZB50,RZB40,50..GCC,GEN199301-199502

sub85214-20340

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-10200iHZB50..(GCC,GEN)..5F;BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199705-201501

main85224-60070iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199502-199705

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-10200iHZB50..(GCC,GEN)..5F;BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199705-201501

main85224-60070iBB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199502-199705

9165140614

main91651-40614

12 parts on this diagram · 1 diagram in section
