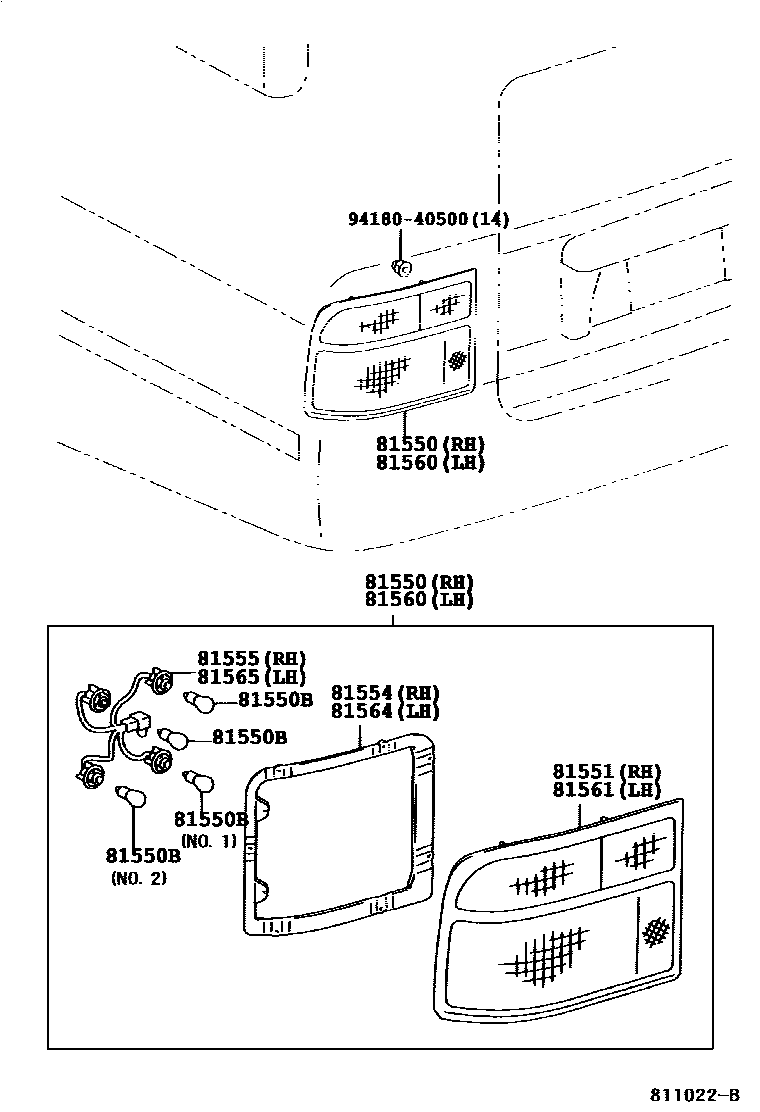

REAR COMBINATION LAMP

0001 1 0002 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-36260iBB42,HZB50..RHD..STD..GEN; HZB50..EX..GEN;BB42,HZB50..LHD..STD..DSL199301-199505

24V; W(SINGLE SWING BACK DOOR),24V

main81550-36270iBB42,HZB50..LHD..HRF..WC..GEN..5F199505-199705

CHINA SPEC

main81550-36271iBB42,HZB50..LHD..HRF..WC..GEN; BB50..WC..CBU199705-199907

CHINA SPEC

main81550-36272iBB50..STD..WC..IV..5F199907-200105

W(DOUBLE SWING BACK DOOR)

main81550-36280iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN; RZB40,50;BB42,HZB50..LHD..WOC..DSL199301-199705

12V; W(SINGLE SWING BACK DOOR),12V

main81550-36281iRZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199705-199907

12V

main81550-36282iHZB50..RHD..SRF;RZB40,50..GCC,GEN;BB42,HZB50..WOC..(GCC,GEN)199907-200108

12V

main81550-36290iBB42,HZB50..RHD..STD..GEN199301-199505

24V

main81550-36300iBB40,HZB50..ARL199301-199705

main81550-36301iBB40,HZB50..ARL199705-199907

main81550-36302iBB4#,50..RHD..5F;HZB50..RHD..(DX,STD)199907-200108

main81550-36310iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199301-199705

12V

main81550-36311iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199705-199907

W(SINGLE SWING BACK DOOR),12V

main81550-36312iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199907-200108

W(SINGLE SWING BACK DOOR),12V

main81550-36320iBB42,HZB50..SCO199301-199505

main81550-36321iBB42,HZB50..SCO199505-199705

main81550-36322iBB43199802-199907

24V

main81550-36323iBB50..EX..GEN..CBU199907-200108

SINGAPORE SPEC

main81550-36330iBB42..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199505-199705

24V

main81550-36331iBB50..GEN..IV;BB42,58,HZB50..(GCC,GEN)..5F199705-199907

24V

main81550-36340iBB42,HZB50..RHD..STD..GEN199505-199705

main81550-36341iBB42,HZB50..RHD..STD..GEN..5F; HZB50..4FC199705-199907

24V; W(SINGLE SWING BACK DOOR),24V

main81550-36350iBB43,50..RHD..CBU199808-199907

W(DOUBLE SWING BACK DOOR)

main81550-36400iBB50..CHI200008-200211

main81550-36410iRZB40,50..CHI200012-200211

main81550-36420iBB42..LHD..HRF200408-201108

DOUBLE LEAF TYPE & UNPAINTED;24V,DOUBLE LEAF & UNPAINTED

main81550-36430iBB50..EX..TDEFI; HZB50..EX200108-200408

24V, DOUBLE LEAF TYPE; PAINTED(RED),24V

main81550-36440iBB42,50,HZB50..RHD..(20S,26S,30S); BB59;BB50..RHD..(DX,STD)..CBU200108-200408

W(SINGLE SWING BACK DOOR),24V

main81550-36450iXZB50..EX200408-200908

24V,RED PAINTED

main81550-36460iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

12V,UNPAINTED

main81550-36470iRZB40..EX200108-200408

PAINTED(RED),12V

main81550-36480iBZB50200211-200408

main81550-36490iBZB50..EX200211-200408

PAINTED(RED),12V

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-12015×2iXZB50..STD..GEN200408-200803

24V 5W,NO.3

main90981-16014×2iBB40,50,HZB50..(19S,22S)..5F; HZB50..SCO;BB42,43,50..17S,20S199301-199907

24V 21W

main90981-16015×2iBB58,59;BB42..RHD..SRF;BB42..LHD..HRF..WOC;BB42,HZB50..WC..GCC;BB50..(19S,20S)..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,HZB50..RHD..HRF..STD..WC..GEN..5F; HZB50..LHD..GEN;BB42..LHD..26S..WC..GEN;BB42..LHD..SRF..WOC..GEN199907-200408

24V 21/5W; 24V 21/5W,CHINA SPEC

main90981-16021×2iBB42,HZB50..GCC,GEN,SCO199301-199505

24V 25/10W

main90981-16026×2iBB43,50..RHD..CBU; BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50..GCC,GEN199808-199907

24V 25W; 24V 25W,NO.1

main90981-16027×2iBB50..EX..GEN..CBU199907-200108

24V 25/10W,NO.2

main99132-11210×6iXZB40,5#..ARL,GEN; XZB50..TAIW200908-201501

12V 21W,NO.1

main99132-12050×2iBZB50..EX200408-200608

12V 5W,NO.3

main99132-21210×2iRZB40..HRF..GCC200408-200602

12V 21/5W,NO.2

main99134-11250×4iBB50..EX;BB50..GEN..IV;BB42,43,58,HZB50..GCC,GEN,SCO199505-199907

24V 25W,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-36260iBB42,HZB50..LHD..HRF..WC..GEN..5F199301-199705

CHINA SPEC

main81551-36271iBB42,HZB50..LHD..HRF..WC..GEN; BB42..LHD..SRF;HZB50..LHD..WOC;HZB50..HRF..GCC;HZB50..LHD..SRF..WC;BB42,HZB50..RHD..GEN..5F;BB42,50..LHD..HRF..WOC..5F;BB43,5#,RZB40,50..(GCC,GEN)..CBU199907-200108

CHINA SPEC

main81551-36290iBB40,HZB50..ARL; HZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199505-199705

W(SINGLE SWING BACK DOOR)

main81551-36301iBB40,HZB50..ARL; HZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199705-199907

W(SINGLE SWING BACK DOOR),12V

main81551-36321iBB42,HZB50..RHD..STD..GEN..5F; HZB50..SCO;BB42,HZB50..RHD..(17S,22S)..(GEN,SCO)199505-199705

W(SINGLE SWING BACK DOOR),24V

main81551-36322iBB50..EX..GEN..CBU199907-200108

W(SINGLE SWING BACK DOOR),24V

main81551-36330iBB42..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)199505-199705

24V

main81551-36331iBB50..GEN..IV;BB42,58,HZB50..(GCC,GEN)..5F199705-199808

W(SINGLE SWING BACK DOOR)

main81551-36370iXZB50..TAIW201501

main81551-36390iBB50,RZB40,50..CHI200008-200211

main81551-36420iBB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S200408-201501

main81551-36430iBB50..EX200408-200608

PAINTED

main81551-36440iBZB40,XZB40,5#..RHD; HZB50..RHD201501

W(SINGLE SWING BACK DOOR)

main81551-36450iBB50,BZB50..EX..GEN200108-200408

PAINTED(RED)

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-36260iXZB50..STD..GEN200408-200803

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-36260iBB50..GEN..IV;BB42,58,HZB50..GCC,GEN199301-199907

24V

main81555-36270iBB40,50,HZB50..(19S,22S)..5F;BB42,HZB50..LHD..HRF..WC..GEN..5F199301-199907

main81555-36272iBB50..EX..IV200104-200108

main81555-36280iRZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199301-199907

12V

main81555-36282iHZB50..RHD..SRF;RZB40,50..GCC,GEN;BB42,HZB50..WOC..(GCC,GEN)199907-200108

12V

main81555-36320iHZB50..SCO;BB42,43,50..17S,20S199301-199907

main81555-36323iBB50..EX..GEN..CBU199907-200108

SINGAPORE SPEC

main81555-36400iBB50..CHI200008-200211

main81555-36410iXZB50..TAIW201501

main81555-36420iXZB50..STD..GEN200408-200803

24V

main81555-36460iBZB50..EX200408-200608

12V

81560LAMP ASSY, REAR COMBINATION, LH

main81560-36200iBB42,HZB50..GCC,GEN199301-199505

W(SINGLE SWING BACK DOOR),24V

main81560-36210iBB42,HZB50..LHD..HRF..WC..GEN..5F199505-199705

CHINA SPEC

main81560-36211iBB40,50,HZB50..(19S,22S)..5F;BB42,HZB50..LHD..HRF..WC..GEN199705-199907

main81560-36212iBB4#,58,HZB50;BB50..WOC..5F;BB50..EX..GEN;BB50..STD..GEN..CBU199907-200108

main81560-36220iRZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199301-199705

W(SINGLE SWING BACK DOOR),12V

main81560-36221iRZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199705-199907

12V

main81560-36222iHZB50..RHD..SRF;RZB40,50..GCC,GEN;BB42,HZB50..WOC..(GCC,GEN)199907-200108

W(SINGLE SWING BACK DOOR),12V

main81560-36230iBB42,HZB50..SCO199301-199505

main81560-36231iBB42,HZB50..SCO199505-199705

main81560-36232iBB42,43,50..17S,20S199705-199907

main81560-36233iBB50..EX..GEN..CBU199907-200108

SINGAPORE SPEC

main81560-36240iBB42,HZB50..GCC,GEN199505-199705

main81560-36241iBB50..GEN..IV;BB42,58,HZB50..GCC,GEN199705-199907

24V

main81560-36290iBB50..CHI200008-200211

main81560-36300iRZB40,50..CHI200012-200211

main81560-36310iBB5#..(ARL,GEN)..TDEFI200408-200608

24V,UNPAINTED;UNPAINTED

main81560-36320iXZB50..EX200408-200908

24V,RED PAINTED

main81560-36330iBZB50..EX200408-200608

12V,UNPAINTED

main81560-36340iBZB50..EX200408-200608

12V,RED PAINTED;PAINTED(RED)

81561LENS, REAR COMBINATION LAMP, LH

main81561-36200iHZB50..ARL;BB40,RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199505-199705

main81561-36211iBB40,50,HZB50..(19S,22S)..5F; BB42,HZB50..LHD..HRF..WC..GEN; RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199705-199907

12V; CHINA SPEC

main81561-36240iBB42,HZB50..GCC,GEN,SCO199505-199705

24V

main81561-36241iBB50..WC..GEN..IV;BB42,58,HZB50..GCC,GEN; BB50..WOC..GEN;BB42,43,50..17S,20S199705-199907

24V

main81561-36260iXZB50..TAIW201501

main81561-36280iBB50,RZB40,50..CHI200008-200211

main81561-36310iBB42..LHD..HRF200408-201108

UNPAINTED

main81561-36320iBB50,BZB50..EX200408-200608

PAINTED(RED)

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-36260iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-36260iBB50..GEN..IV;BB42,58,HZB50..GCC,GEN199301-199907

24V

main81555-36270iBB42,HZB50..RHD..STD..GEN; BB42..LHD..SRF..GEN;HZB50..LHD..WOC..DSL;HZB50..LHD..SRF..WC..GEN199301-199505

CHINA SPEC; W(SINGLE SWING BACK DOOR)

main81555-36272iBB50..EX..IV200104-200108

main81555-36280iRZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199301-199907

12V

main81555-36282iHZB50..RHD..SRF;RZB40,50..GCC,GEN;BB42,HZB50..WOC..(GCC,GEN)199907-200108

12V

main81555-36320iHZB50..SCO;BB42,43,50..17S,20S199301-199907

main81555-36323iBB50..EX..GEN..CBU199907-200108

SINGAPORE SPEC

main81555-36400iBB50..CHI200008-200211

main81555-36410iXZB50..TAIW200908-201501

main81555-36420iHZB50..GCC,GEN;BB42,5#..ARL,GCC,GEN200108-200408

24V

main81555-36460iRZB40..HRF..GCC200408-200602

12V

9418040500

main94180-40500

10 parts on this diagram · 3 diagrams in section
