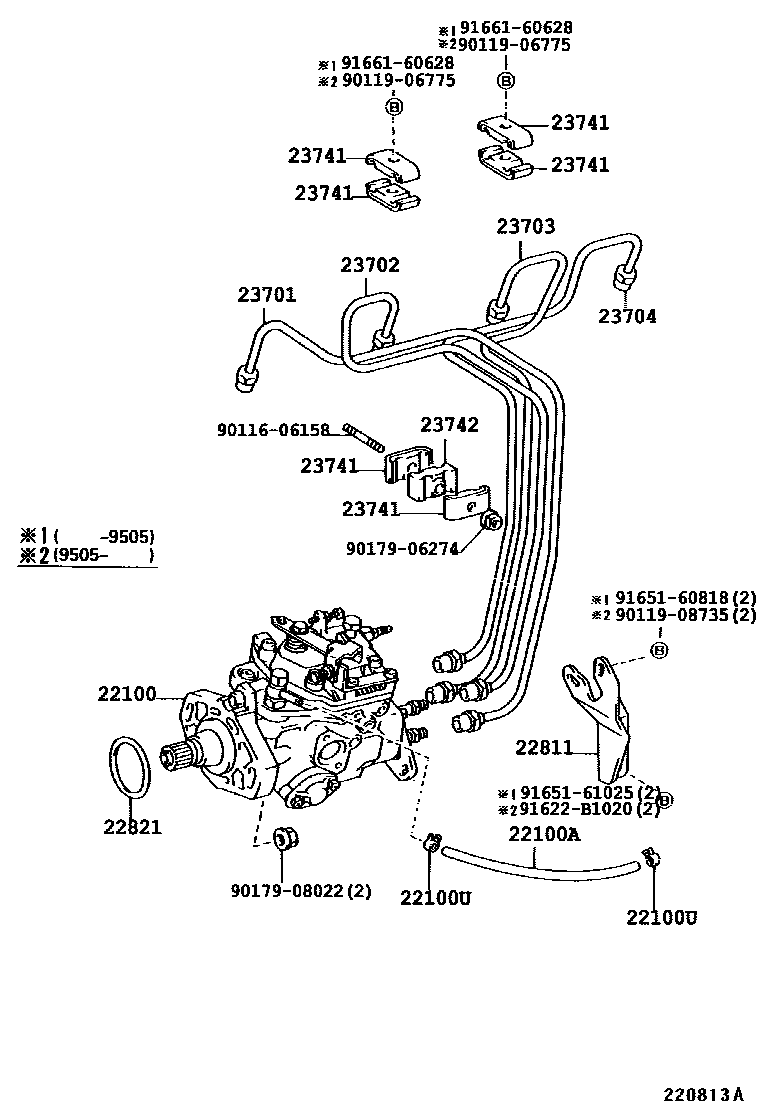

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1NB PUMP 0004 1VE PUMP 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-17350i1HZ..HZB50..HRF..WC..GEN..5F;1HZ..HZB50..LHD..SRF..WC..GEN199301-199705

*HAC

sub22100-17351

main22100-17350i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199505-199705

*HAC & W(BATTERY X2)

sub22100-17351

main22100-17350i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199505

*HAC & BATTERY(48D26R X2)

sub22100-17351

main22100-17351i1HZ..HZB50..HRF..WC..GEN..5F;1HZ..HZB50..LHD..SRF..WC..GEN199705-199907

*HAC & W(BATTERY X2)

main22100-17351i1HZ..HZB50..HRF..WC..GEN..5F;1HZ..HZB50..LHD..SRF..WC..GEN199705-199907

*HAC

main22100-17410i1HZT..HZB50199301-199605

main22100-17480i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199705

*HAC

sub22100-17481

main22100-17481i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199705-199907

*HAC

main22100-17500i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199705

sub22100-17510

main22100-17630i1HZ..HZB50..(ARL,GCC)..5F199301-199907

main22100-17650i1HZ..HZB50..LHD..SRF..WC..GEN;1HZ..HZB50..HRF..WC..(GEN,SCO)..5F199301-199705

sub22100-17651

main22100-17650i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199505

BATTERY(48D26R X2)

sub22100-17651

main22100-17650i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199505-199705

W(BATTERY X 2)

sub22100-17651

main22100-17651i1HZ..HZB50..HRF..WC..GEN..5F;1HZ..HZB50..LHD..SRF..WC..GEN199705-199907

W(BATTERY X 2)

main22100-17660i1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F199301-199705

*EX-USSR

sub22100-17661

main22100-17661i1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN199705-199907

*EX-USSR

main22100-17690i1HZ..HZB50..4FC199301-199705

sub22100-17691

main22100-17691i1HZ..HZB50..4FC199705-199907

main22100-17830i1HZ..HZB50..ARL199505-199907

main22100-17A40i1HZ..HZB50..HRF..30S..GCC201501

*HAC

main22100-1C030i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199705-199907

W(BATTERY X1)

main22100-1C190i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN199907-201501

main22100-1C200i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199907-200002

*HAC

sub22100-1C201

main22100-1C201i1HZ..HZB50..WOC200002-201501

*HAC

main22100-1C201i1HZ..HZB50..WOC201501

*HAC,L/EGR

main22100-1C270i1HZ..HZB50..4FC199907-200108

main22100-1C290i1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN199907-200610

*EX-USSR

main22100-1C300i1HZ..HZB50..GEN..5F199907-200002

*HAC & BATTERY(48D26R X2)

sub22100-1C301

main22100-1C301i1HZ..HZB50..WOC200408-201501

*HAC & BATTERY(55D23R X2)

main22100-1C301i1HZ..HZB50..WC..GEN200408-201501

*HAC

main22100-1C301i1HZ..HZB50..RHD..EX;1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN200002-200408

*HAC & BATTERY(48D26R X2)

main22100-1C310i1HZ..HZB50..ARL199907-200211

main22100-1C320i1HZ..HZB50..WC200408-201501

BATTERY(55D23R X2)

main22100-1C320i1HZ..HZB50..RHD..EX;1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN199907-200408

BATTERY(48D26R X2)

main22100-58880i3B..BB40199301-199505

main22100-58890i14B..BB42..WOC199301-199505

main22100-58891i14B..BB42..SRF..WOC..GEN;14B..BB42..LHD..HRF..WOC199505-201501

main22100-58A00i14B..BB42..GCC201108-201501

*HAC

main22100-5C010i14B..BB42..WOC..GEN199301-199505

*HAC

main22100-5C011i14B..BB42..RHD..HRF..WOC199505-201501

*HAC

main22100-5C020i14B..BB42..WC..(GCC,GEN)199301-199505

BATTERY(48D26R X2)

main22100-5C021i14B..BB42..RHD..WC;14B..BB42..LHD..SRF..WC..GEN200408-201501

BATTERY=(55D23R X2)

main22100-5C021i14B..BB42..WOC199505-200408

BATTERY(48D26R X2)

main22100-5C021i14B..BB42..WC..GEN201501

BATTERY(55D23R X2)

main22100-5C021i14B..BB42..LHD..HRF200408-201108

main22100-5C030i14B..BB42..WC..GEN199301-199505

*HAC & BATTERY(48D26R X2)

main22100-5C030i14B..BB42..WOC..GEN199301-199505

*HAC

main22100-5C031i14B..BB42..WC..GEN201501

*HAC;BATTERY(55D23R X2)

main22100-5C031i14B..BB42..WC..GEN199505-201501

*HAC

main22100-5C031i14B..BB42..WC..GEN199505-200408

*HAC & BATTERY(48D26R X2)

main22100-5C031i14B..BB42..RHD..HRF;14B..BB42..LHD..SRF..WC..GEN200408-201501

*HAC & BATTERY(55D23R X2)

main22100-5C040i14B..BB42..LHD..WOC..GEN199301-199505

CHINA SPEC & BATTERY(48D26R X2)

main22100-5C040i14B..BB42..LHD..WOC..GEN199301-199505

CHINA SPEC

main22100-5C041i14B..BB42..LHD..HRF..26S..WC200012-200108

YOJO SPEC

main22100-5C041i14B..BB42..LHD..HRF..WC199505-200012

CHINA SPEC

main22100-5C050i14B..BB42..SCO199301-199502

sub22100-5C051

main22100-5C051i14B..BB42..SCO199502-199706

sub22100-5C530

main22100-5C060i14B..BB42..LHD..HRF..26S199301-199305

TAIWAN SPEC

main22100-5C061i14B..BB42..LHD..HRF..26S199305-199505

TAIWAN SPEC

main22100-5C062i14B..BB42..LHD..HRF..26S199505-199602

TAIWAN SPEC

sub22100-5C063

sub11298-58013

main22100-5C063i14B..BB42..LHD..HRF..26S199602-199705

TAIWAN SPEC

main22100-5C070i14B..BB42..LHD..WOC..GEN199301-199505

CIS SPEC & BATTERY(95D31R X2)

main22100-5C071i14B..BB42..LHD..WOC..GEN199505-200701

CIS SPEC & BATTERY(95D31R X2)

main22100-5C320i3B..BB40199505-199907

main22100-5C350i15BFT..BB50..IV..6F199605-201501

main22100-5C420i15BFT..BB50..STD..WC..IV..5F199705-200108

main22100-5C470i14B..BB42..WOC..GCC199705-200108

main22100-5C480i14B..BB42..WOC..GCC199705-200108

BATTERY(48D26R X2)

main22100-5C480i14B..BB42..GCC199907-201501

main22100-5C530i14B..BB42..SCO199706-199808

main22100-5C590i15BFTE..BB58199907-200106

sub22100-5C591

sub82989-36010

sub82999-12020

main22100-5C591i15BFTE..BB58200106-200608

main22100-5C660i15BFTE..BB50,59200105-200608

main22100-78183iN04C..XZB40,5#200608-200908

*196

sub22100-78184

main22100-78235iN04C..XZB40,5#200908-200909

sub22100-78236

main22100-78236iN04C..XZB40,5#200909-200912

sub22100-78237

main22100-78237iN04C..XZB40,5#200912-201501

sub22100-E0067

main22100-E0067iN04C..XZB40,5#201501

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-17090i1HZ..HZB50..ARL199309-201008

sub23271-17091

main23271-17091i1HZ..HZB50201009-201501

main23271-58080i15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F199705-201008

sub23271-58081

main23271-58081i15BFT..BB50201009-201501

main23271-58100i15BFTE..BB5#199907-200608

main23271-78301iN04C..XZB50..STD..GEN200608-201012

sub23271-78302

main23271-78302iN04C..XZB40,5#201101-201108

main23271-78680iN04C..XZB50..IV201108-201501

main95332-10030i15BFT..BB58;15BFT..BB50..WC..GEN..IV199705-199907

L=300(*H,L=260)

main95332-10040i14B..BB42..22S;14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;14B..BB42..RHD..HRF..WOC199301-201008

L=400(*H,L=340)

main95332-10044i15BFT..BB50199605-199907

L=480(*H,L=440)

sub95332-10048

main95332-12028i1HZ#..HZB50199301-199309

L=280

main95338-10034i14B..BB42..RHD;14B..BB42..LHD..SRF201009-201501

L=340

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-18002i15BFTE..BB5#199907-200408

sub90467-18008

main90467-18008iN04C..XZB50..IV200408-201501

main96132-41500i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199301-201501

22811STAY, INJECTION PUMP, NO.1

main22811-17010i1HZT..HZB50199301-199605

sub22811-17011

main22811-17011i1HZ..HZB50..ARL199505-201501

main22811-56050i14B,3B..BB4#199301-199505

main22811-58030i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199505-200109

sub22811-58031

main22811-58031i14B..BB42..LHD..HRF200109-201501

main22811-58040i15BFT..BB50..IV..6F199605-201501

main22811-58060i15BFTE..BB5#199907-200608

22821GASKET, INJECTION PUMP

main90301-49003i14B..BB42..22S;14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;14B..BB42..RHD..HRF..WOC199301-201501

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-17010i1HZ..HZB50..GCC,GEN,SCO199301-199907

main23701-17040i1HZT..HZB50199301-201501

main23701-56080i14B..BB42..LHD..HRF199301-201501

main23701-58010i3B..BB40199301-199505

main23701-58011i3B..BB40199505-199907

main23701-58030i15BFT..BB50..STD..WC..IV..5F199705-200108

main23701-58040i15BFT..BB50..CHI199605-201501

main23701-58050i15BFTE..BB58199907-200608

main23701-58071i15BFTE..BB50,59200105-200608

main23701-78090iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S200608-200908

subS2371-12650

main23701-78131iN04C..XZB40,5#200908-201101

sub23701-E0012

main23701-E0012iN04C..XZB40,5#..ARL,GEN,TAIW201101-201501

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-17010i1HZ..HZB50199301-199907

main23702-17040i1HZ..HZB50199301-201501

main23702-56080i14B..BB42..LHD..HRF199301-201501

main23702-58010i3B..BB40199301-199505

main23702-58011i3B..BB40199505-199907

main23702-58030i15BFT..BB50..WOC..5F199705-200108

main23702-58040i15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F199605-201501

main23702-58050i15BFTE..BB58199907-200608

main23702-58071i15BFTE..BB50,59200105-200608

main23702-78090iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S200608-200908

subS2371-22620

main23702-78131iN04C..XZB40,5#200908-201101

sub23702-E0012

main23702-E0012iN04C..XZB40,5#201101-201501

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-17010i1HZ..HZB50..GCC,GEN,SCO199301-199907

main23703-17040i1HZ..HZB50199301-201501

main23703-56080i14B..BB42199301-201501

main23703-58010i3B..BB40199301-199505

main23703-58011i3B..BB40199505-199907

main23703-58030i15BFT..BB50..WOC..5F199705-200108

main23703-58040i15BFT..BB50..CHI199605-201501

main23703-58050i15BFTE..BB58199907-200608

main23703-58071i15BFTE..BB50,59200105-200608

main23703-78090iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S200608-200908

subS2371-32550

main23703-78121iN04C..XZB40,5#200908-201101

sub23703-E0012

main23703-E0012iN04C..XZB40,5#..ARL,GEN,TAIW201101-201501

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-17010i1HZ..HZB50..GCC,GEN,SCO199301-199907

main23704-17040i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

main23704-56080i14B..BB42199301-201501

main23704-58010i3B..BB40199301-199505

main23704-58011i3B..BB40199505-199907

main23704-58030i15BFT..BB50..STD..WC..IV..5F199705-200108

main23704-58040i15BFT..BB50..STD..GEN..CBU..5F199605-201501

main23704-58050i15BFTE..BB58199907-200608

main23704-58071i15BFTE..BB50,59200105-200608

main23704-78080iN04C..XZB50..STD..GEN200608-200908

subS2371-42570

main23704-78121iN04C..XZB40,5#200908-201101

sub23704-E0012

main23704-E0012iN04C..XZB50..IV201101-201501

23741CLAMP, INJECTION PIPE, NO.1

main23741-17010i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

NO.1

main23741-17020i1HZ#..HZB50199301-201501

NO.2

main23741-17030i1HZ..HZB50..ARL199301-201501

NO.3

main23741-54010i14B..BB42199301-199505

main23741-56010i3B..BB40199301-199505

main23741-58010i15BFT..BB50..STD..WC..IV..5F199505-201501

main90034-68032iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S200608-200908

sub21576-E0020

23742CLAMP, INJECTION PIPE, NO.2

main23741-56010i14B..BB42199301-199505

main23741-56020i3B..BB40199301-199605

sub23741-56021

main23741-56021i3B..BB40199605-199907

main23741-58020i15BFTE..BB5#200105-200608

NO.1

main23742-17010i1HZ..HZB50..ARL199301-201501

NO.1

main23742-17020i1HZ..HZB50..ARL199301-201501

NO.2

main23742-27010i15BFTE..BB58199907-200105

NO.1

main23742-58010i15BFT..BB50..WOC..5F199505-201501

main23742-58020i15BFTE..BB58199907-200105

NO.2

main23742-58030i15BFTE..BB5#200105-200608

NO.2

main23742-66020iN04C..XZB50..IV200908-201501

mainS799041250iN04C..XZB40,5#201501

sub23742-66020

9011606158

main90116-06158

9011906775

main90119-06775

9011908735

main90119-08735

9017906274

main90179-06274

9017908022

main90179-08022

91622B1020

main91622-B1020

9165160818

main91651-60818

9165161025

main91651-61025

9166160628

main91661-60628

20 parts on this diagram · 11 diagrams in section
