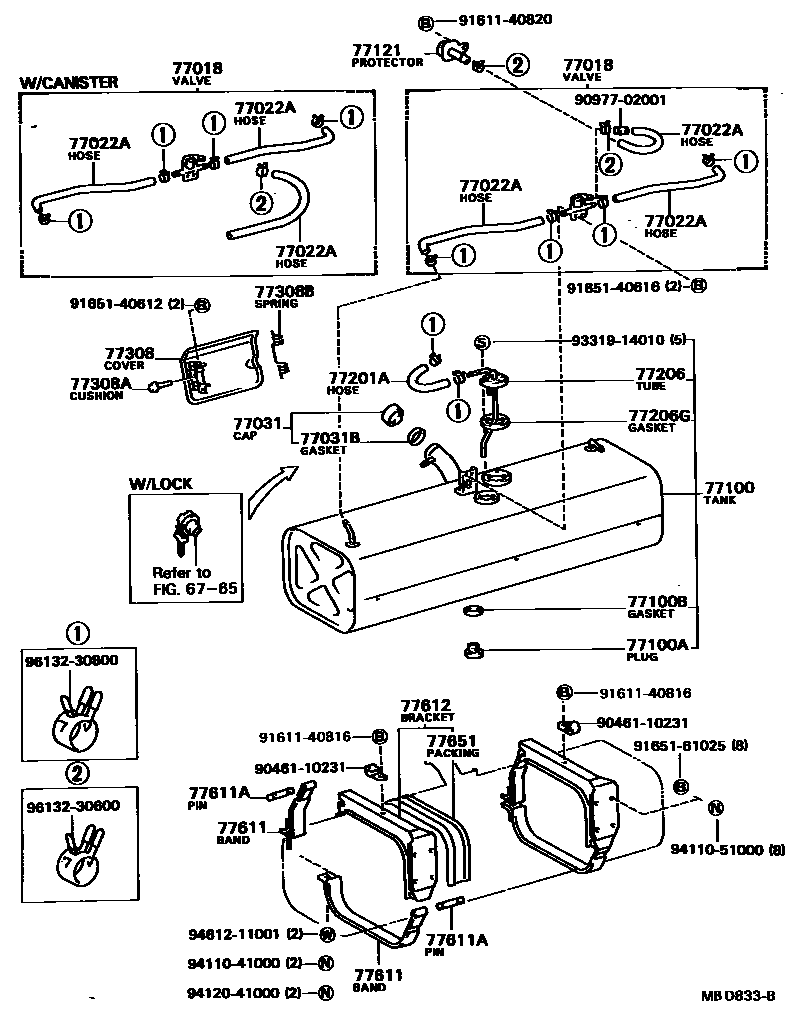

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0022 1

6765

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36110iBB2#,30,HB3#198205-198808

main77018-36120iRB20..ARL198205-199301

main77018-36220iRB20..GEN,ME198610-199301

main77018-36240iHDB30..GEN198808-199301

main77018-36250iHDB30..EUR199109-199301

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-36020iRB20..ARL198211-199301

L=340

main95332-06010iFB30198610-198702

L=100(*H,L=60)

sub95333-06010

main95332-06030iBB2#,30,HB3#198611-198702

L=300(*H,L=260)

sub95333-06030

main95332-06030iFB30198610-198702

L=300(*H,L=220)

sub95333-06030

main95332-06040iBB2#,30,HB3#198205-198611

L=400(*H,L=340)

sub95333-06040

main95332-08060iBB2#,30,FB30,HB3#,RB20198205-198702

L=600(*H,L=460)

sub95333-08060

main95333-06010iRB20..GEN,ME198702-199301

L=100(*H,L=60)

main95333-06030iRB20..GEN,ME198702-199301

L=300(*H,L=260)

sub95338-06030

main95333-06030iFB30198702-199301

L=300(*H,L=220)

sub95338-06030

main95333-06030iHDB30..EUR199109-199301

L=300

sub95338-06030

main95333-06100iHDB30..EUR199109-199301

L=1000

main95333-08060iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198702-199301

L=600(*H,L=460)

77031CAP ASSY, FUEL TANK

main77310-12041iFB30,RB20198205-199301

main77310-55080iBB2#,30,HB30,HZB30..DLX,EX,STD198205-199301

sub77310-60100

77031BGASKET (FOR FUEL TANK CAP)

main77316-12040iFB30,RB20198205-199301

main77316-27010iBB2#,30,HB30,HZB30..DLX,EX,STD198205-199301

77100TANK ASSY, FUEL

main77001-36390iBB20..RHD198205-198302

sub77001-36918

main77001-36400iBB20..LHD198205-198302

sub77001-36919

main77001-36410iRB20..RHD198205-198302

sub77001-36918

main77001-36420iRB20..LHD198205-198302

sub77001-36919

main77001-36690iBB2#,30,HB3#,HDB30,HZB30..RHD198510-199301

main77001-36790iBB20,21,3#,HB30,HZB30,RB20..LHD198510-199301

main77001-36800iRB20..ARL198510-199301

main77001-36890iFB30198610-199301

main77001-36918iBB20,30,RB20..RHD198302-198510

sub77100-3B220

main77001-36919iBB20,30,RB20..LHD198302-198510

sub77100-3B230

77100APLUG(FOR FUEL TANK)

main90341-20003iBB20,30,RB20198205-198510

sub90341-20004

main90341-20004iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198510-199301

77100BGASKET(FOR FUEL TANK)

main90430-20006iBB20,30,RB20198205-198510

main90430-20007iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198510-199301

77121PROTECTOR, FUEL TUBE

main77243-36010iBB20,21,22,30,FB30,HB3#,HDB30198205-199301

main77258-36010iRB20..ARL198205-199301

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95332-08030iBB20,21,30,FB30,HB30,RB20..LHD198205-198702

L=300(*H,L=260)

sub95333-08030

main95332-08040iBB2#,30,HB3#,RB20..RHD198205-198702

L=400(*H,L=320)

sub95333-08040

main95333-08030iBB21,3#,FB30,HB30,HZB30,RB20..LHD198702-199301

L=300(*H,L=260)

main95333-08040iBB2#,30,HB3#,HDB30,HZB30,RB20..RHD198702-199301

L=400(*H,L=320)

sub95337-08040

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-36210iBB22,HB31198510-199001

main77017-36220iFB30198610-199301

main77017-36230iHB30..RHD198610-199001

main77017-36240iBB20,21,30..RHD198510-198808

main77017-36250iBB20,21,30,HB30..LHD198510-199001

main77017-36260iRB20..RHD198510-198612

sub77017-36300

main77017-36270iRB20..LHD198510-198612

sub77017-36310

main77017-36300iRB20..RHD198612-199301

main77017-36310iRB20..LHD198612-199301

main77017-36370iBB2#..RHD198808-199301

main77017-36380iBB21,32,HZB30..LHD198808-199301

main77017-36390iHDB30199001-199301

main77017-36400iHZB30..RHD199001-199301

main77203-36090iBB20..RHD198205-198302

sub77203-36900

main77203-36100iBB20..LHD198205-198302

sub77203-36903

main77203-36110iRB20..RHD198205-198302

sub77203-36901

main77203-36120iRB20..LHD198205-198302

sub77203-36904

main77203-36900iBB20,30..RHD198302-198510

sub77017-36240

main77203-36901iRB20..RHD198302-198510

sub77017-36300

main77203-36903iBB20,30..LHD198302-198510

sub77017-36250

main77203-36904iRB20..LHD198302-198510

sub77017-36310

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

main77305-90B01iBB20,21,FB30,HB30,HZB30,RB20..LHD198205-199301

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05080iBB2#,FB30,HB30,HZB30,RB20198205-199301

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main90508-23058iBB20,22,23,RB20198205-199301

77611BAND, FUEL TANK

main77601-36110iBB2#,32,FB30,HDB30,HZB30,RB20199001-199301

LWR

main77603-36070iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

UPR

77611APIN (FOR FUEL TANK BAND)

main77629-25010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

77612BRACKET SUB-ASSY, FUEL TANK

main77501-36040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

77651PACKING, FUEL TANK BRACKET

main77651-36090iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

9046110231

main90461-10231

9097702001

main90977-02001

9161140816

main91611-40816

9161140820

main91611-40820

9165140612

main91651-40612

9165140616

main91651-40616

9165161025

main91651-61025

9331914010

main93319-14010

9411041000

main94110-41000

9411051000

main94110-51000

9412041000

main94120-41000

9461211001

main94612-11001

9613230600

main96132-30600

9613230800

main96132-30800
