Toyota COASTER — BRAKE TUBE & CLAMP

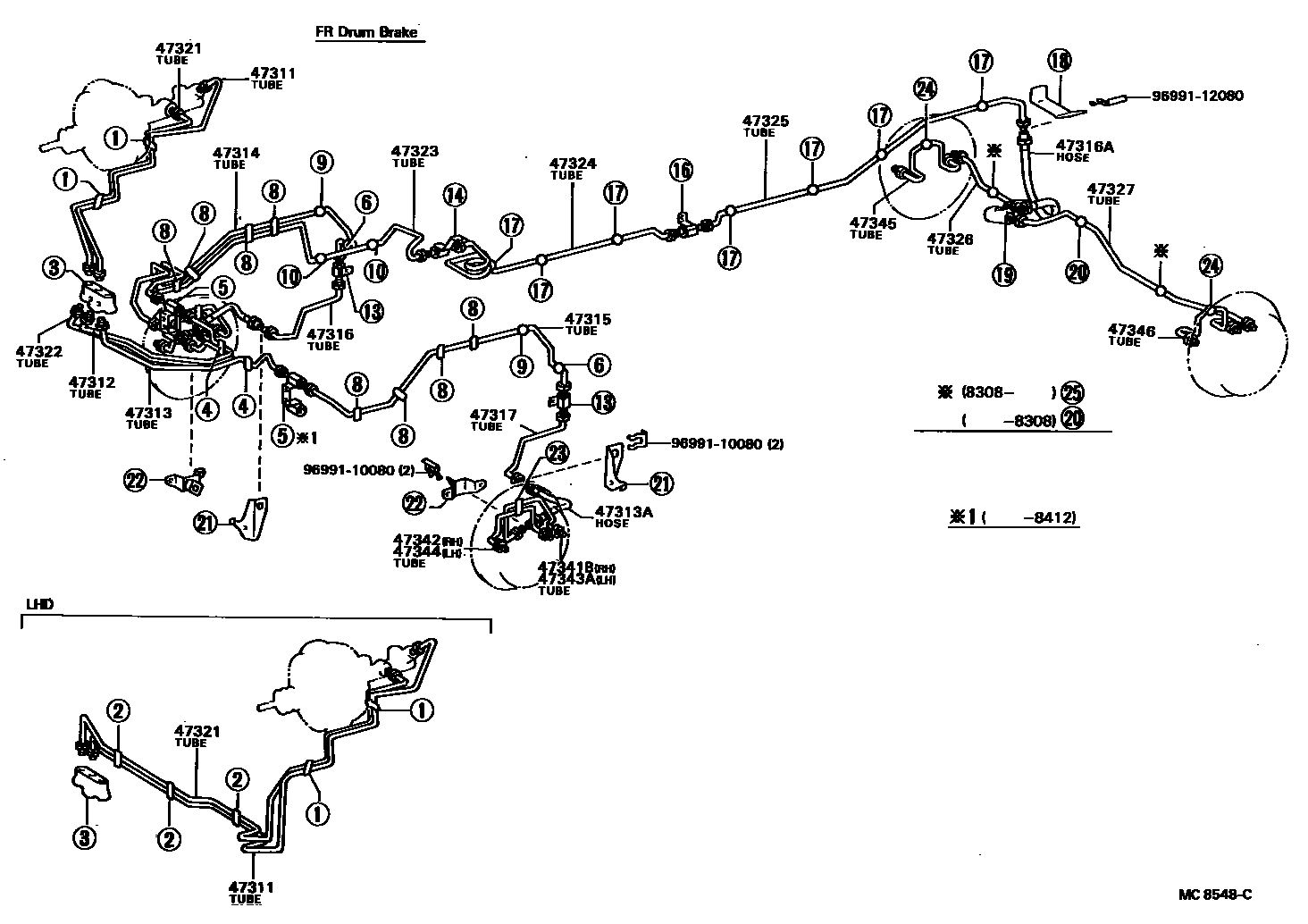

Parts diagram

47311TUBE, FRONT BRAKE, NO.1

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47314TUBE, FRONT BRAKE, NO.4

47315TUBE, FRONT BRAKE, NO.5

47316TUBE, FRONT BRAKE, NO.6

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317TUBE, FRONT BRAKE, NO.7

47321TUBE, REAR BRAKE, NO.1

47322TUBE, REAR BRAKE, NO.2

47323TUBE, REAR BRAKE, NO.3

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47326TUBE, REAR BRAKE, NO.6

47327TUBE, REAR BRAKE, NO.7

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

47345TUBE, WHEEL CYLINDER, REAR RH

47346TUBE, WHEEL CYLINDER, REAR LH

9699110080

9699112080

24 parts on this diagram · 4 diagrams in section

BRAKE TUBE & CLAMP for Toyota COASTER

This section contains 88 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota COASTER. Key components include: BUSH & BOOT KIT, LOAD SENSING SPRING, FRONT DISC BRAKE CALIPER & DUST COVER, TUBE, FRONT BRAKE, NO.1, WAY, NO.1(FOR FRONT BRAKE TUBE), GROMMET, NO.1(FOR FRONT BRAKE TUBE).
