EPC Data

MANIFOLD

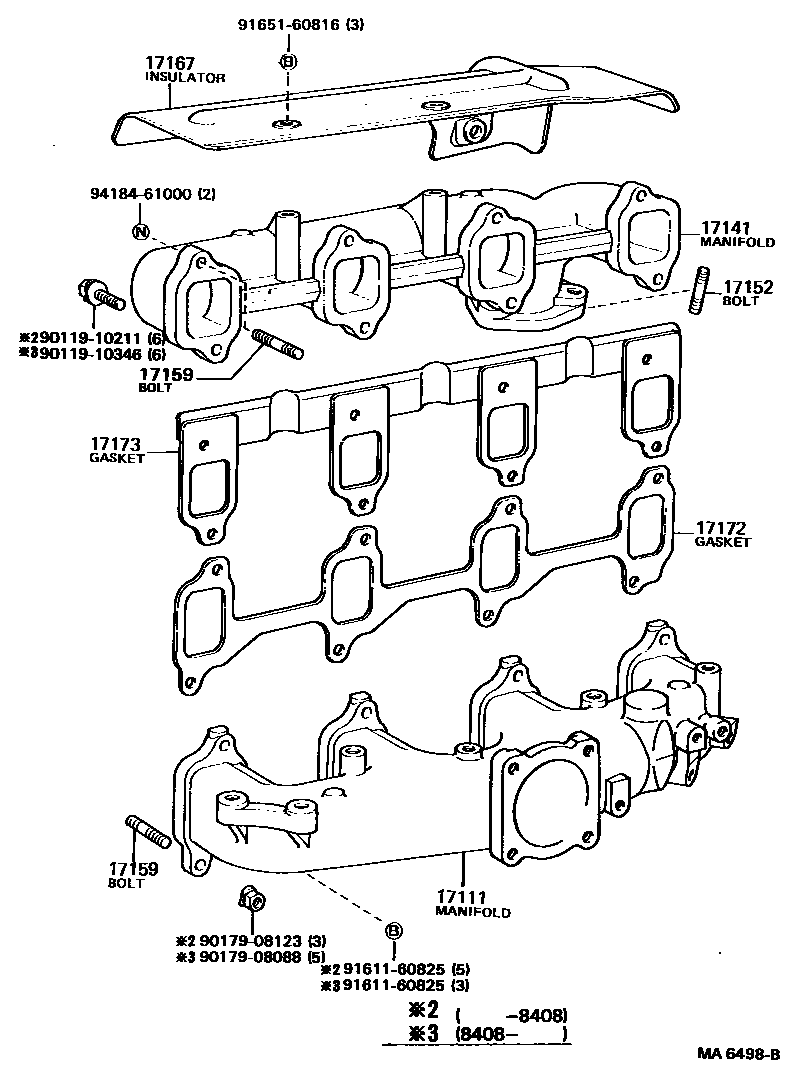

Parts diagram
17111MANIFOLD, INTAKE
main17111-17010i199001-199206
sub17111-17011
main17111-17011i199206-199301
sub17111-17012
main17111-35012i198205-198208
main17111-35040i198208-198808
main17111-35100i198808-199301
main17111-56110i198205-198301
sub17111-56150
main17111-56150i198301-198808
sub17111-56180
main17111-56160i198510-198808
main17111-56170i198808-199204
sub17111-56200
main17111-56180i198808-199301
sub17111-58090
sub17171-58020
sub90341-18006
sub90430-18002
main17111-56190i198808-199301
sub17111-58060
sub17171-58020
main17111-56200i199204-199301
sub17111-58090
sub17171-58020
main17111-68030i198610-198808
sub17111-68023
sub90341-18050
sub90430-18002
main17111-68041i198610-198808
main17111-68042i198808-199001
main17111-68060i198610-199001
17141MANIFOLD, EXHAUST
main17140-68010i198610-199001
main17140-68020i198610-199001
main17141-17010i199001-199301
sub17141-17011
main17141-17020i199001-199301
main17141-35020i198205-198207
sub17141-35050
main17141-35050i198207-198408
main17141-35100i198408-198606
main17141-35130i198606-199301
main17141-56030i198205-198210
sub17141-56031
main17141-56031i198210-198408
sub17141-56050
main17141-56050i198408-198808
main17141-56060i198808-199301
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
main90116-10048i198205-198408
L=40,S=19&12
sub90116-10093
main90116-10056i198408-198705
sub90116-10087
main90116-10058i198205-198303
L=46.5,S=14&20
main90116-10087i198705-199301
main90116-10087i198303-199301
L=46.5,S=14&20
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
main90116-08013i198205-198210
L=34.5,S=9&16
main90116-08131i198610-199001
INTAKE MANIFOLD
main90116-08172i198210-199301
INTAKE MANIFOLD SIDE
main90116-08222i198610-199001
EXHAUST MANIFOLD
main90116-08352i199002-199301
INTAKE MANIFOLD
main90116-10011i198205-198206
L=42,S=12&25
main90116-10048i198205-198406
EXHAUST MANIFOLD
sub90116-10093
main90116-10064i198206-199301
EXHAUST MANIFOLD SIDE,LWR
main90116-10067i198206-199301
EXHAUST MANIFOLD SIDE UPR
main90116-10098i198406-199301
EXHAUST MANIFOLD
sub90116-10063
main90116-10147i198808-198904
EXHAUST MANIFOLD
sub90116-10098
main90116-10171i199001-199301
main90116-10317i198205-198206
L=36,S=13&13
main90116-12011i198610-199301
main92132-60822i198205-198408
INTAKE MANIFOLD
main92132-60825i198408-199002
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
main17167-17010i199001-199301
sub17167-17011
main17167-17020i199001-199301
sub17167-17021
main17167-35021i198205-198208
main17167-35060i198208-198408
main17167-35110i198408-199301
main17167-35130i198410-198606
sub17167-35110
main17167-56020i198205-198408
sub17167-56022
main17167-56022i198408-198708
sub17167-56023
main17167-56023i198708-198808
main17167-56040i198808-199301
sub17167-56060
sub91621-B0816
main17167-56050i198808-199212
sub17167-56060
main17167-56060i199212-199301
main17167-61040i198610-199301
main17167-68010i198610-198705
sub17167-68011
main17167-68011i198705-199001
main17167-68020i198610-199001
17172GASKET, MANIFOLD TO CYLINDER HEAD
main17171-56010i198808-199301
main17172-56021i198205-198408
sub17172-56022
main17172-56022i198408-198808
sub17171-56010
main17172-61050i198610-199301
sub17172-61070
17173GASKET, EXHAUST MANIFOLD TO HEAD
main17173-17010i199001-199301
main17173-56021i198205-198301
sub17173-56022
main17173-56022i198301-198408
main17173-56040i198808-199301
main17173-58010i198408-198808
main17173-68010i198610-199001
main17173-68021i198610-199001
9011910211
main90119-10211
9011910346
main90119-10346
9017908088
main90179-08088
9017908123
main90179-08123
9161160825
main91611-60825
9165160816
main91651-60816
9418461000
main94184-61000

14 parts on this diagram · 12 diagrams in section
