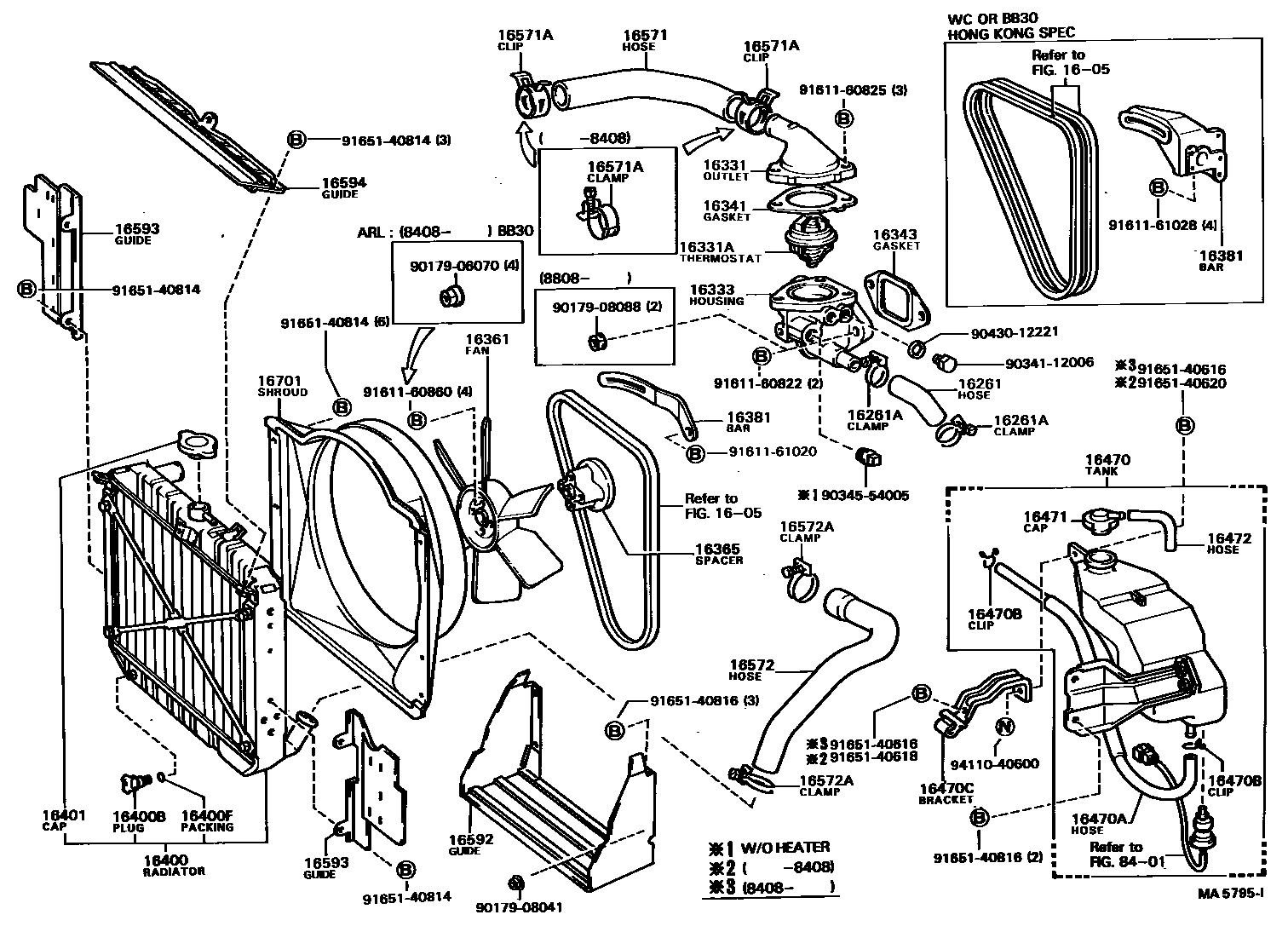

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1605

16261HOSE, WATER BY-PASS

main16261-17010i1HDT..HDB30199001-199301

main16261-35010i22R..RB20..ARL198205-198207

sub16261-35040

main16261-35020i22R..RB20..GEN198205-198408

main16261-35040i22R..RB20..ARL198207-199301

main16261-35050i22R..RB20..GEN,ME198408-199301

main16261-56012i13B,14B,3B..BB2#,3#198205-199301

main16261-61010i3F..FB30198610-198706

main16261-61020i3F..FB30198706-199301

main99555-40090i12HT,2H..HB3#198610-199001

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053i13B,3B..BB2#,30198205-198609

main90044-67103i13B,3B..BB2#,30198609-198808

main90467-15022i1HDT..HDB30199001-199301

main90467-20005i22R..RB20198205-199301

sub96134-41900

main90467-28004i14B,3B..BB2#,32198808-199301

sub90467-28007

main96111-10330i12HT,2H..HB3#198610-199001

ID=33

main96112-10250i3F..FB30198610-199301

16331OUTLET, WATER

main16303-61010i3F..FB30198610-199301

main16304-17010i1HDT..HDB30199001-199301

main16331-17010i1HZ..HZB30199001-199301

main16331-35020i22R..RB20198205-198208

main16331-35050i22R..RB20198208-199301

sub16331-35051

main16331-56020i13B,14B,3B..BB2#,3#198205-199301

main16331-68011i12HT,2H..HB3#198610-199001

16331ATHERMOSTAT

main90916-03026i2H..HB30198610-199001

*WAX 82-95

main90916-03034i22R..RB20198205-198208

*WAX 82-95

main90916-03052i3F..FB30198805-199301

*WAX 88-100

main90916-03054i22R..RB20198208-199301

*WAX 82-95

sub90916-03083

main90916-03059i12HT..HB31198408-199001

*WAX 88-100

sub90916-03080

main90916-03066i3B..BB20,30198205-198808

*WAX 82-95

sub90916-03077

main90916-03071i3F..FB30198610-198805

*WAX 88-100

sub90916-03052

main90916-03077i14B,3B..BB2#198808-199301

*WAX 82-95

sub90916-03102

main90916-03080i14B..BB32..5F198808-199301

*WAX 88-100

sub90916-03103

main90916-03089i1H#..HDB30,HZB30199001-199301

*WAX 76-90

16333HOUSING, WATER OUTLET

main16304-61010i3F..FB30199001-199301

main16304-61010i3F..FB30198610-199301

W/HEATER

main16331-61060i3F..FB30198610-199001

main16333-56060i13B,3B..BB2#,30198205-198808

sub16333-58080

sub16341-56030

sub16343-56023

sub90341-12006

sub90430-12221

sub92122-60832

sub94185-60800

main16333-56070i14B,3B..BB2#,32198808-198904

sub16333-56071

sub92112-60835

main16333-56071i14B,3B..BB2#,32198904-198908

sub16333-56072

sub16343-56020

main16333-56072i14B,3B..BB2#,32198908-199301

sub16333-58050

main16333-68010i12HT..HB31198610-199001

main16333-68030i2H..HB30198610-199001

16341GASKET, WATER OUTLET

main16341-17010i1H#..HDB30,HZB30199001-199301

main16341-35010i22R..RB20198208-199301

main16341-38020i22R..RB20198205-198208

sub16341-38021

main16341-56020i13B,3B..BB2#,30198205-198808

sub16341-56021

main16341-56030i14B,3B..BB2#,32198808-199301

main16341-61020i3F..FB30198610-199001

sub16341-61030

main16341-61030i3F..FB30199001-199301

main16341-68010i12HT,2H..HB3#198610-199001

sub16341-68020

16343GASKET, WATER OUTLET HOUSING

main16343-56020i13B,3B..BB2#,30198205-198808

sub16343-56022

main16343-56021i14B,3B..BB2#,32198908-199001

sub16343-56022

main16343-56022i14B,3B..BB2#,32199001-199301

sub16343-56023

main16343-61010i3F..FB30198610-199001

sub16343-61020

main16343-61020i3F..FB30199001-199301

main16343-68010i12HT,2H..HB3#198610-199001

sub16343-68020

16361FAN

main16361-17010i1H#..HDB30,HZB30199001-199301

main16361-38010i22R..RB20198205-199301

7 BLADES,OD=380

main16361-41070i3B..BB20,21..ARL198205-199301

sub16361-41071

main16361-41090i12HT,2H..HB3#198610-199001

main16361-47010i3B..BB20,30..GEN,IRQ198205-199301

main16361-68030i3F..FB30198610-199301

16365SPACER, FAN

main16365-57011i13B,14B,3B..BB2#,30..GEN,IRQ,ME198205-199301

16381BAR, FAN BELT ADJUSTING

main16381-17020i1HZ..HZB30..WC..(GEN,ME)199001-199301

24V

main16381-17030i1HZ..HZB30..WOC..GEN199001-199301

main16381-17040i1HDT..HDB30199001-199301

main16381-35010i22R..RB20..WOC198408-199301

W/O POWER STEERING

main16381-38020i22R..RB20..WOC198205-198408

W/O POWER STEERING

main16381-56030i3B..BB20,21..(20S,22S,25S,26S)..WOC198205-198808

main16381-56060i3B..BB21..WOC..(GEN,ME)198808-199301

W/48D26R X 2 BATTERY

sub16381-58120

main16381-56060i3B..BB21..WOC..ARL199001-199301

sub16381-58120

main16381-56070i14B..BB32..4FC198808-199301

sub16381-58110

main16381-58010i3B..BB20..RHD..STD..HRF198405-198610

HONG KONG SPEC

main16381-58010i3B..BB30;3B..BB20..15S;13B,3B..BB2#..WC198205-198808

main16381-58040i3B..BB21..WC198808-199301

main16381-68010i2H..HB30..WOC198610-199001

main16381-68020i12HT..HB31198610-199001

16400RADIATOR ASSY

main16400-17110i1H#..HDB30,HZB30..RHD..GEN199001-199301

sub16400-17140

main16400-17120i1HZ..HZB30..LHD..GEN199001-199301

sub16400-17150

main16400-17130i1HZ..HZB30..ARL199001-199301

main16400-17150i1HZ..HZB30..ME199001-199301

main16400-35090i22R..RB20..GEN198205-198510

sub16400-35400

main16400-35100i22R..RB20..ARL198205-198408

TROPICAL AREA

sub16400-35260

main16400-35260i22R..RB20..ARL198408-198510

TROPICAL AREA

sub16400-35410

main16400-35400i22R..RB20..GEN198510-198710

sub16400-35401

main16400-35401i22R..RB20..GEN198710-199301

sub16400-35411

main16400-35410i22R..RB20..ARL,ME198510-198710

TROPICAL AREA

sub16400-35411

main16400-35411i22R..RB20..ARL,ME198710-199301

main16400-35411i22R..RB20..GEN198710-199301

TROPICAL AREA

main16400-58040i3B..BB20..ARL,IRQ198205-198408

TROPICAL AREA

sub16400-58041

sub16572-58021

main16400-58041i3B..BB20..GEN198408-198510

TROPICAL AREA

sub16400-58042

main16400-58042i3B..BB20..GEN198510-198609

TROPICAL AREA

sub16400-58043

main16400-58043i3B..BB20,21..ARL,ME198609-198612

TROPICAL AREA

sub16400-58044

sub90179-08041

main16400-58044i3B..BB21..ARL,ME198612-199301

main16400-58044i3B..BB21..GEN198612-199301

TROPICAL AREA

main16400-58050i3B..BB20,30..GEN198205-198408

sub16400-58051

sub16572-58021

main16400-58051i3B..BB20,30..GEN198408-198510

sub16400-58052

main16400-58052i3B..BB20,30..GEN198510-198609

sub16400-58053

main16400-58053i3B..BB20,21,30..GEN198609-198612

sub16400-58054

sub90179-08041

main16400-58054i3B..BB21,30..GEN198612-199301

main16400-58240i13B..BB22198510-198609

sub16400-58241

main16400-58241i13B..BB22198609-198612

sub16400-58242

sub90179-08041

main16400-58242i13B,14B..BB22,23,32..5F198612-199301

sub16400-58054

main16400-58300i14B..BB32..4FC199001-199301

main16400-61130i3F..FB30198610-198701

sub16400-61131

sub90179-08041

main16400-61131i3F..FB30198701-199301

main16400-68042i2H..HB30..GEN198610-198612

FIN PITCH 4.5

sub16400-68043

sub90179-08041

main16400-68043i2H..HB30..GEN198612-199001

FIN PITCH 4.5

sub16400-68142

main16400-68141i12HT,2H..HB3#198610-198612

FIN PITCH 4.0

sub16400-68142

sub90179-08041

main16400-68142i12HT,2H..HB3#198612-199001

FIN PITCH 4.0

sub16400-68152

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i12HT,2H..HB3#198205-199301

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i13B,14B,3B..BB2#,3#198205-199301

16401CAP SUB-ASSY, RADIATOR

main16401-41021i22R..RB20198205-198510

main16401-71010i13B,14B,3B..BB2#,3#198510-199301

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-17020i1HZ..HZB30..WC..ARL199001-199301

W/OK MONITOR

main16470-17030i1H#..HDB30,HZB30..RHD..(DLX,STD)199001-199301

main16470-17040i1HZ..HZB30..ME199001-199301

W/OK MONITOR

main16470-17050i1HZ..HZB30..LHD199001-199301

sub16470-17040

main16470-61030i3F..FB30198610-199301

sub16470-61040

main16470-61040i3F..FB30198610-199301

W/OK MONITOR

main16470-68050i12HT,2H..HB3#..RHD..(DLX,STD)198610-199001

main16470-68060i2H..HB30..26S198610-199001

W/OK MONITOR

main16470-68070i2H..HB30..LHD198610-199001

main16470-90B00i3B..BB20,21..(DLX,EXS)..ARL198205-199301

W/OK MONITOR

main16470-90B00i3B..BB21..16S198808-199205

main16470-90B01i13B,3B..BB2#,30..RHD..(DLX,STD)198205-198808

W/O OK MONITOR

main16470-90B01i22R..RB20..RHD198205-199301

main16470-90B02i22R..RB20..LHD..(DLX,EXS)198205-199301

W/OK MONITOR

main16470-90B03i14B,3B..BB20,21,3#..LHD198205-199301

W/O OK MONITOR

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16567-17020i1H#..HDB30,HZB30..RHD..(DLX,STD)199001-199301

W/OK MONITOR

main16567-17040i1HDT..HDB30..EUR199109-199301

main16567-17040i1HZ..HZB30..LHD199001-199301

W/OK MONITOR

main90099-33534i3F..FB30198610-199301

L=1000(*H,L=180),NO.1

main90445-12078i2H..HB30..LHD198610-199001

L=1000(*H,L=220)

main90445-12078i2H..HB30..LHD198610-199001

L=1000(*H,L=280)

main90445-12078i3F..FB30198610-199301

L=1800(*H,L=260),NO.2

main90447-12035i13B,14B,3B..BB2#,3#198205-199301

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3F..FB30198205-199301

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-68030i2H..HB30..LHD198610-199301

main16611-90B00i22R..RB20..RHD198205-199301

main16611-90B01i22R..RB20..LHD198205-199301

main16611-90B02i12HT,2H..HB3#..RHD198610-199001

16471CAP SUB-ASSY, RESERVE TANK

main16405-17020i1H#..HDB30,HZB30199001-199301

main16405-61020i3F..FB30198610-199301

main16405-68040i12HT,2H..HB3#..RHD198610-199001

sub16405-56080

main16405-68050i2H..HB30..LHD198610-199001

main16405-90B00i22R..RB20198205-199301

sub16405-70120

16472HOSE, BREATHER

main85338-22020i3B..BB20,30198205-198609

main85338-41150i3F..FB30198610-199301

main85338-70100i12HT,2H..HB3#198609-199301

main85338-74040i1H#..HDB30,HZB30199001-199301

16571HOSE, RADIATOR, INLET

main16571-17040i1H#..HDB30,HZB30..RHD199001-199301

main16571-17050i1HDT..HDB30..EUR199001-199301

main16571-35050i22R..RB20198205-199301

main16571-58020i13B,14B,3B..BB2#,3#198205-199301

main16571-61120i3F..FB30198610-199301

main16571-68030i12HT,2H..HB3#..RHD198610-199001

main16571-68060i2H..HB30..LHD198610-199001

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-50016i3B..BB20,30198205-198609

sub96111-10500

main90467-37001i22R..RB20198205-199301

sub90467-37003

main90467-42001i12HT,1H#,2H..HB3#,HDB30,HZB30198408-199301

sub90467-41002

main96111-10490i13B,3B..BB2#,30198609-198702

16572HOSE, RADIATOR, OUTLET

main16572-17040i1HZ..HZB30..RHD..GEN199001-199301

main16572-17050i1HZ..HZB30..ARL199001-199301

main16572-17060i1HZ..HZB30..LHD199001-199301

main16572-17070i1HDT..HDB30199001-199102

main16572-17071i1HDT..HDB30..GEN199102-199301

main16572-17081i1HDT..HDB30..EUR199109-199301

main16572-35020i22R..RB20198205-199301

RADIATOR SIDE

main16572-58020i3B..BB20,30198205-198408

main16572-58021i13B,14B,3B..BB2#,3#198408-199301

main16572-68060i12HT,2H..HB3#..RHD198610-199001

main16572-68070i2H..HB30..LHD198610-199001

main16573-35010i22R..RB20198205-199301

PUMP SIDE

main16573-61050i3F..FB30198610-199301

RADIATOR SIDE

main90445-49001i3F..FB30198610-199301

WATER PUMP SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016i13B,3B..BB2#,30198205-199001

RADIATOR SIDE

sub96111-10500

main96111-10450i22R..RB20198205-199301

ID=45

main96111-10490i1H#..HDB30,HZB30199001-199301

RADIATOR SIDE

main96111-10500i3F..FB30198803-199301

main96111-10510i13B,14B,3B..BB2#,3#198609-199301

RADIATOR SIDE

main96111-10510i3F..FB30198610-198803

main96111-10530i1H#..HDB30,HZB30199001-199301

ENGINE SIDE

main96111-10560i13B,3B..BB2#,30198205-199001

WATER PUMP SIDE

main96111-10570i13B,14B,3B..BB2#,3#198609-199301

WATER PUMP SIDE

16592GUIDE, RADIATOR AIR, NO.3

main16592-17010i1HZ..HZB30..GEN199001-199301

W/RADIATOR DUCT

main16592-35010i22R..RB20198710-199301

W/RADIATOR DUCT

main16592-58010i13B,14B,3B..BB2#198610-199301

W/RADIATOR DUCT

main16592-68010i2H..HB30198610-199002

W/RADIATOR DUCT

sub16592-68011

main16592-68011i3F..FB30199001-199301

W/RADIATOR DUCT

16593GUIDE, RADIATOR AIR, NO.1

main16593-17010i1H#..HDB30,HZB30..RHD199001-199301

RH,LWR

main16593-58010i1HZ,2H..HB30,HZB30..LHD198205-199301

RH

main16593-58020i22R..RB20..LHD198205-199301

RH

main16593-61010i3F..FB30198610-199301

RH

main16593-68010i12HT,2H..HB3#..RHD198610-199001

RH

main16593-68010i1H#..HDB30,HZB30199001-199301

RH,UPR

main16595-17010i1H#..HDB30,HZB30..RHD199001-199301

LH

main16595-17020i1HZ..HZB30..LHD199001-199301

LH

main16595-58010i22R..RB20..RHD198205-199301

LH

main16595-58020i14B,3B..BB20,21,3#..LHD198205-199301

LH

main16595-61010i2H..HB30..LHD198610-199301

LH

main16595-68010i12HT,2H..HB3#..RHD198610-199001

LH

16594GUIDE, RADIATOR AIR, NO.2

main16594-17010i1H#..HDB30,HZB30199001-199301

main16594-58010i22R..RB20198205-199301

main16594-68010i12HT,2H..HB3#198610-199301

16701SHROUD SUB-ASSY, FAN

main16701-17010i1H#..HDB30,HZB30..RHD..GEN199001-199301

main16701-17020i1HDT..HDB30..EUR199001-199301

main16701-17030i1HZ..HZB30..ARL199001-199301

main16701-35020i22R..RB20..RHD198408-199301

main16701-35030i22R..RB20..LHD198408-199301

main16701-38020i22R..RB20..RHD198205-198408

sub16701-35020

main16701-38030i22R..RB20..LHD198205-198408

sub16701-35030

main16701-47030i12HT,2H..HB3#..RHD198610-199001

main16701-56220i13B,3B..BB2#,30..RHD198205-198808

main16701-56230i3B..BB20,21,30..LHD198205-198808

main16701-58100i14B,3B..BB2#..RHD198808-199301

main16701-58110i14B,3B..BB21,32..LHD198808-199301

main16701-68010i2H..HB30..LHD198610-199001

main16711-61250i3F..FB30198610-199301

8401

9017906070

main90179-06070

9017908041

main90179-08041

9017908088

main90179-08088

9034112006

main90341-12006

9034554005

main90345-54005

9043012221

main90430-12221

9161160822

main91611-60822

9161160825

main91611-60825

9161160860

main91611-60860

9161161020

main91611-61020

9161161028

main91611-61028

9165140616

main91651-40616

9165140618

main91651-40618

9165140620

main91651-40620

9165140814

main91651-40814

9165140816

main91651-40816

9411040600

main94110-40600

47 parts on this diagram · 8 diagrams in section
