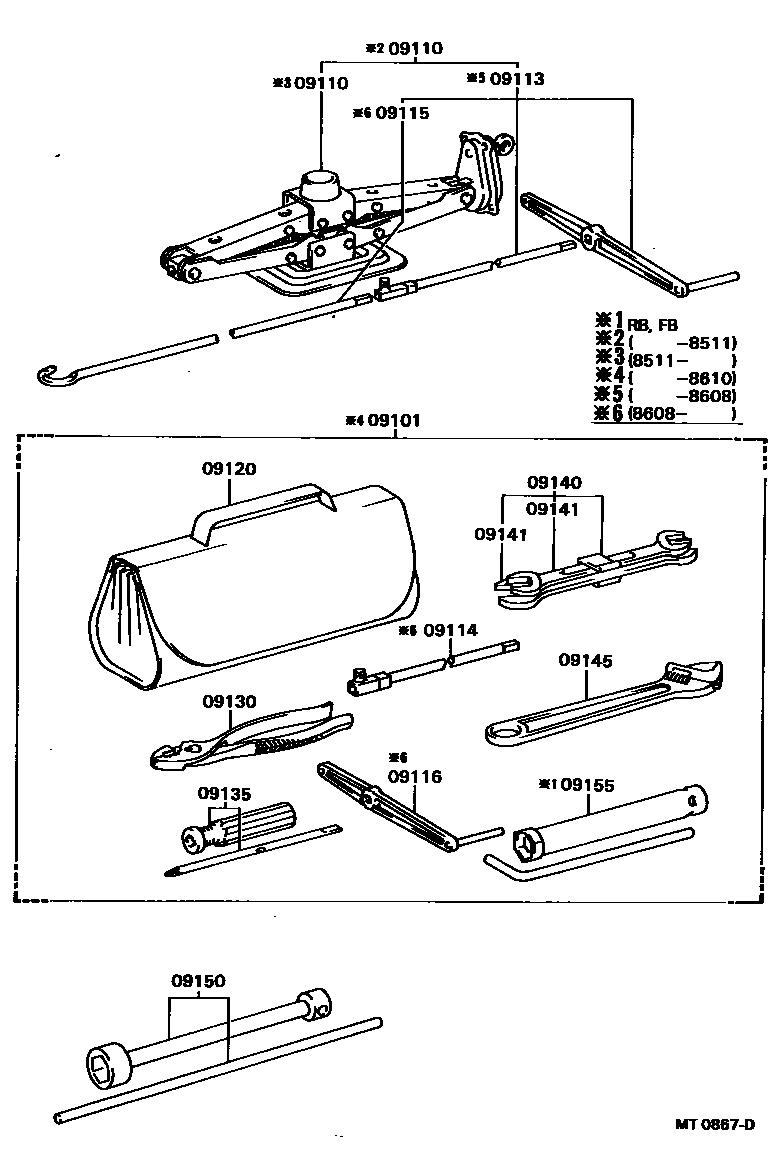

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-36250iBB2#,30198205-198610

main09102-36251iRB20198205-198610

09110JACK ASSY

main09110-36120iBB2#,30,RB20..GEN,IRQ,ME198205-198511

sub09111-36120

sub09113-25040

main09110-36230iBB20,RB20..ARL198601-198608

sub09110-36231

main09110-36231iBB20,21,HB30,HZB30,RB20..ARL198608-199301

main09111-36120iBB2#,30,RB20..GEN,ME198511-198608

sub09111-36230

main09111-36230iBB20,21,23,3#,FB30,HB3#,HDB30,HZB30,RB20..EUR,GEN,ME198608-199301

09113HANDLE, JACK

main09113-25040iBB2#,30,RB20198205-198608

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-25020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198608-199301

09115ROD SUB-ASSY, JACK HANDLE

main09115-28020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198608-199301

09116LEVER, JACK HANDLE

main09116-35020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198608-199301

sub09116-35041

09120BAG, TOOL

main09120-36030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

09130PLIERS

main99913-11500iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

09135DRIVER, SCREW

main99915-10700iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

09140SPANNER SET

main09140-27010iBB2#,30,FB30,HB3#,RB20198205-198807

09141SPANNER

main99914-11012iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

10 X 12,10X12

main99914-11417iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iBB2#,30,RB20198205-198605

sub99911-11200

main99911-11200iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198605-199301

09150WRENCH, HUB NUT BOX

main09150-55020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

09155WRENCH, SPARK PLUG

main09155-41020iFB30198610-199301

main09155-43012iRB20198205-199301

14 parts on this diagram · 1 diagram in section
