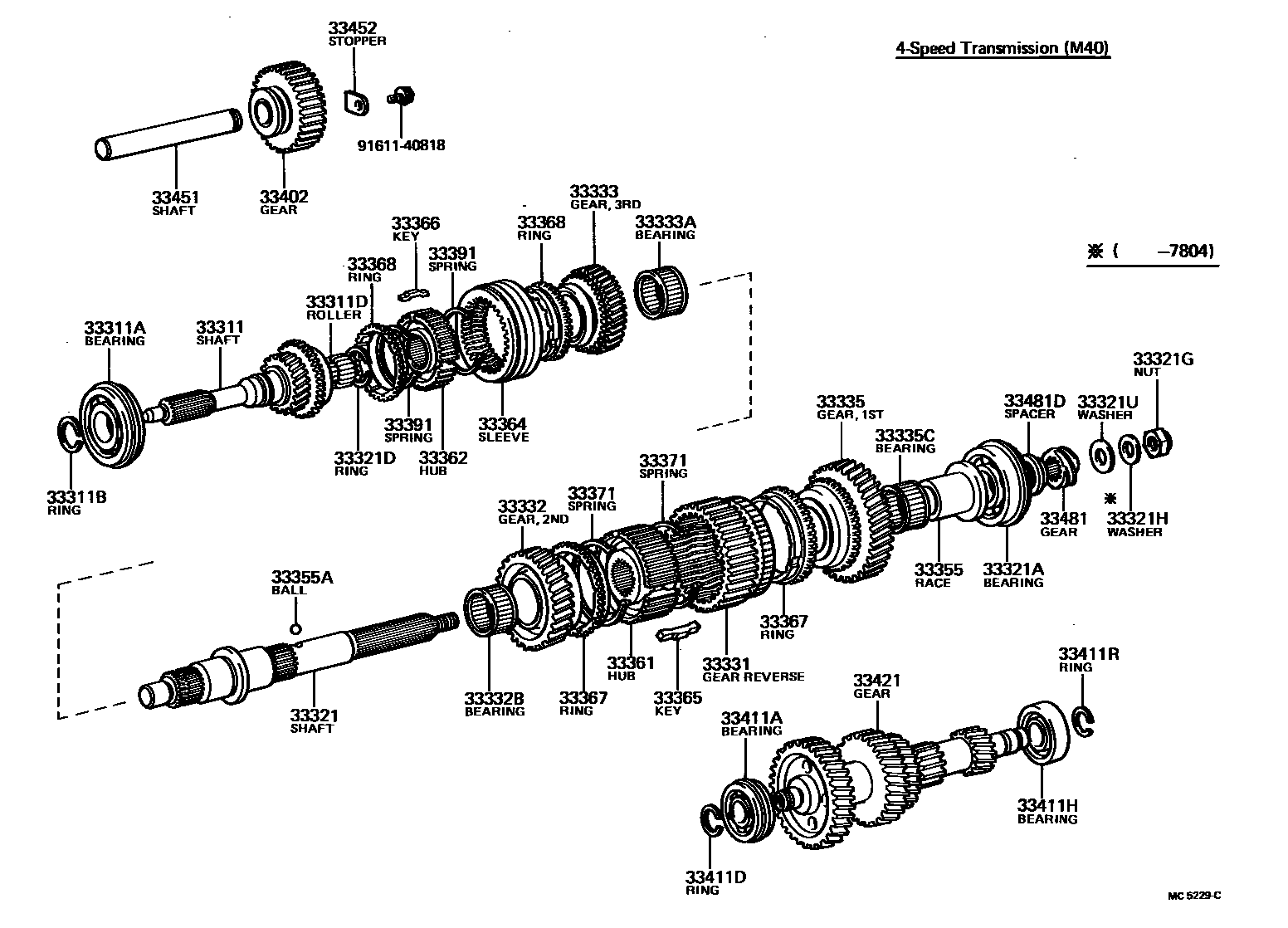

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.40,MARK 13,T=2.40-2.45
T=2.50,MARK 15,T=2.50-2.55
T=2.35-2.40,MARK 12,T=2.35-2.40
T=2.45,MARK 14,T=2.45-2.50
T=2.55,MARK 16,T=2.55-2.60
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
T=2.60-2.65,T=2.60-2.65
T=2.65-2.70,T=2.65-2.70
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
sub90364-46003
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
sub90364-43004
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
sub90364-46003
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
sub33364-60010
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
2ND
1ST
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.90-1.95,MARK E,T=1.9
T=2.00-2.05,MARK F,T=2.0
T=2.10-2.15,MARK G,T=2.1
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.1
T=1.5
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=4,DRIVEN GEAR N=16
N=4,DRIVEN GEAR N=17
N=4
N=5,DRIVEN GEAR N=19
N=4,DRIVEN GEAR N=19
N=4,DRIVEN GEAR N=16
N=4,DRIVEN GEAR N=17
N=4
N=5,DRIVEN GEAR N=19
N=4,DRIVEN GEAR N=19
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
9161140818
main91611-40818
39 parts on this diagram · 2 diagrams in section
