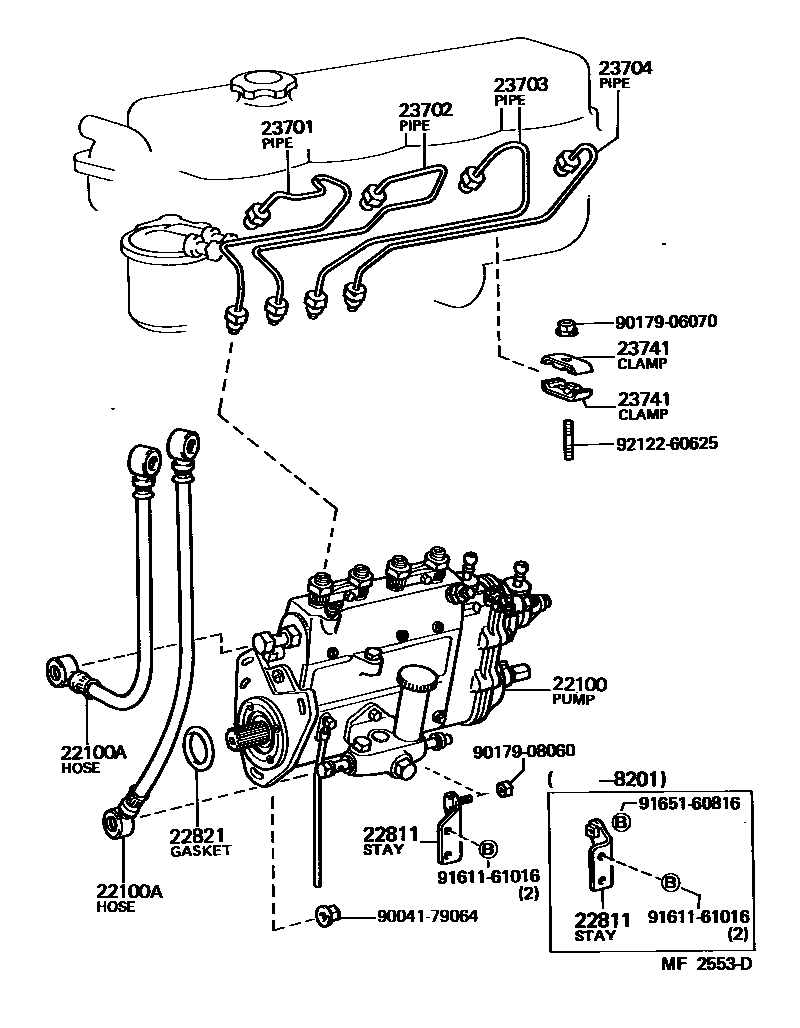

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-57011i2B..BB10..GEN197708-197903

W/EDIC

main22100-57021i2B..BB10197708-197903

W/EDIC & HAC

main22100-57031i2B..BB10197708-197804

main22100-57032i2B..BB10..GEN197804-197911

sub22100-57033

main22100-57033i2B..BB10..GEN,IRQ197911-198201

main22100-57034i2B..BB10..GEN,IRQ198201-198204

main22100-57041i2B..BB10197708-197804

W/HAC

main22100-57042i2B..BB10..GEN197804-197911

W/HAC

sub22100-57043

main22100-57043i2B..BB10..GEN197911-198201

W/HAC

main22100-57044i2B..BB10..GEN198201-198204

W/HAC

main22100-57050i2B..BB10..DLX,STD197804-198201

W/EDIC

sub22100-57011

main22100-57051i2B..BB10..DLX,STD198201-198204

W/EDIC

sub22100-58011

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56030i2B..BB10197708-198008

L=370

main23801-56040i2B..BB10198008-198204

L=312

main23802-56030i2B..BB10197708-198008

L=275

main23802-56040i2B..BB10198008-198204

HOSE L=210

22811STAY, INJECTION PUMP, NO.1

main22811-56010i2B..BB10197708-198201

main22811-56011i2B..BB10198201-198204

22821GASKET, INJECTION PUMP

main90301-77001i2B..BB10197811-198204

main90301-78177i2B..BB10197708-197811

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56010i2B..BB10197708-198008

main23701-56030i2B..BB10198008-198204

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56010i2B..BB10197708-198008

main23702-56030i2B..BB10198008-198204

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020i2B..BB10198008-198204

main23703-56030i2B..BB10197708-198008

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020i2B..BB10198008-198204

main23704-56030i2B..BB10197708-198008

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2B..BB10197708-198204

9004179064

main90041-79064

9017906070

main90179-06070

9017908060

main90179-08060

9161161016

main91611-61016

9165160816

main91651-60816

9212260625

main92122-60625

15 parts on this diagram · 1 diagram in section
