NAVIGATION & FRONT MONITOR DISPLAY

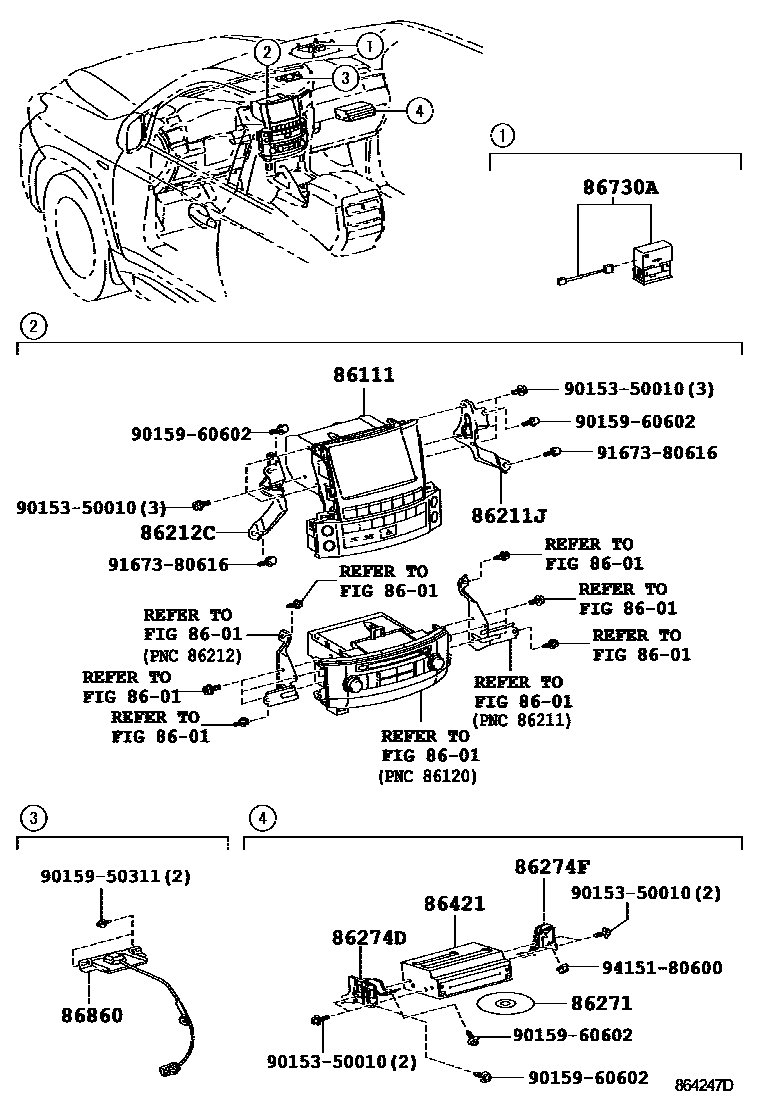

Parts diagram
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
→ Go to FIG 86-01
86111MULTI-DISPLAY
main86111-60370supersedes 86111-60450i200711-200907
FUJITSU TEN,TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
main86111-60380i200711-200809
FUJITSU TEN,EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
main86111-60460supersedes 86111-60450i200809-200907
FUJITSU TEN,EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
86211JBRACKET, RADIO RECEIVER, NO.1
main86211-60250i200711-200907
main86211-60320i200907-201201
main86211-60360i201201-201509
86212CBRACKET, RADIO RECEIVER, NO.2
main86212-60250i200711-200907
main86212-60320i200907-201201
86271DISC, DISC PLAYER
main86271-48340i201509-201512
main86271-48341i201601-201607
main86271-48342i201608-201701
main86271-48343i201702-201707
main86271-48344i201708-201801
main86271-48345i201802-201807
main86271-48346i201808-201901
main86271-48347i201902-201907
main86271-48348i201908-201912
main86271-48349i202001-202006
main86271-60600i202007-202101
main86271-60601i202102-202107
main86271-60602i202108
main86271-48361i201608-201708
TAIWAN SPEC
main86271-48362i201709-201808
TAIWAN SPEC
main86271-48363i201809-201908
TAIWAN SPEC
main86271-48364i201909-202008
TAIWAN SPEC
main86271-48374i201908-202006
VIETNAM SPEC
main86271-48375i202007-202106
VIETNAM SPEC
main86271-48376i202107
VIETNAM SPEC
main86271-53381i201509-201607
TAIWAN SPEC
main86807-0W032i200711-200807
TAIWAN SPEC&WITH(MAP DISC(DOP))
main86807-0W033i200808-200907
TAIWAN SPEC&WITH(MAP DISC(DOP))
main86807-0W035i201008-201107
TAIWAN SPEC&WITH(MAP DISC(DOP))
main86807-0W036i201108-201201
TAIWAN SPEC&WITH(MAP DISC(DOP))
main86807-0W071i200909-201007
TAIWAN SPEC&WITH(MAP DISC(DOP))
main86807-0W110i200907-200908
TAIWAN SPEC&WITH(MAP DISC(DOP))
main86807-0W200i201201-201207
TAIWAN SPEC&MAP DISC(DOP)-WITH
main86807-0W220i201201-201307
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
main86807-0W221i201308-201409
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
main86807-0W222i201410-201509
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
86274DBRACKET, DISC PLAYER
main86274-60320i200711-201201
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
86274FBRACKET, DISC PLAYER, NO.2
main86274-60310i200711-201201
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
86421BOARD, NAVIGATION MODULE
main86421-33030i200711-200907
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
main86421-48010i200907-201201
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
main86421-53030i200711-200907
EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
86730AMICROPHONE ASSY, TELEPHONE
main86730-48040i200907-201201
main86730-50060i200711-200907
main86730-60060i201201-201509
86860ANTENNA ASSY, NAVIGATION
main86860-60230i201201-201301
main86860-60140i200711-200907
EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH); EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
main86860-60200i200907-201201
EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH); EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
main86860-60300i201402-201408
CHILE SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)
main86860-60320i201509-201608
9015350010
main90153-50010
9015950311
main90159-50311
9015960602
main90159-60602
9167380616
main91673-80616
9415180600
main94151-80600

15 parts on this diagram · 6 diagrams in section
