5252FRONT BUMPER & BUMPER STAY

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

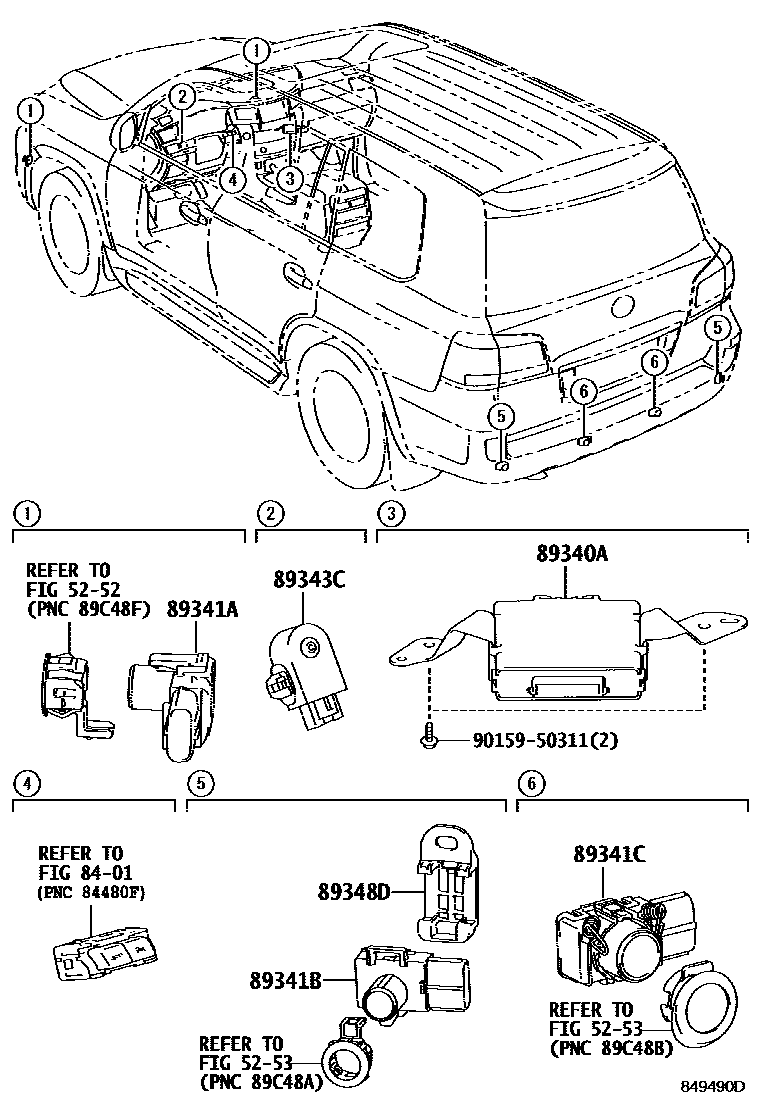

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-60010i201008-201201

main89340-60160i201509

89341ASENSOR, ULTRASONIC, NO.1

main89341-33160-C0×2supersedes 89341-33190-C2i201008-201201

BLACK,202

main89341-33190-B6×6i201201-201301

PREMIUM SILVER,1F2

main89341-33190-B7×6i201201-201509

MERCURY GRAY MC.,1H9

main89341-33190-B9×6i201301-201509

PLATINUM SILVER ME.,1J4

main89341-33190-C3×6i201201-201509

STARLIGHT BLACK GF.,217

main89341-33190-D2×6i201201-201301

DK.RED MC.CS.,3R7

main89341-33190-D3×6i201301-201408

GARNET RED MC.,3S0

main89341-33190-E3×6i201201-201509

SLEEK ECRU ME.,4U7

main89341-33160-A3×2supersedes 89341-33190-A2i200711-200903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-33160-B3×2i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),PREMIUM SILVER,1F2; PREMIUM SILVER,1F2; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),PREMIUM SILVER,1F2

main89341-33160-B6×2i200904-200907

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),GRAY M.M.,1G8; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,GRAY M.M.,1G8

main89341-33160-C2×2i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),STARLIGHT BLACK GF.,217; STARLIGHT BLACK GF.,217; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),STARLIGHT BLACK GF.,217

main89341-33160-D3×2i200711-200903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),DK.RED MC.CS.,3R7; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,DK.RED MC.CS.,3R7; CLEARANCE & BACK SONAR-WITH,DK.RED MC.CS.,3R7

main89341-33160-E4×2i200907-201008

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),BEIGE ME.,4T1; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEWMONITOR(FRONT&SIDE),BEIGE ME.,4T1

main89341-33160-J4×2i200711-200903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),BLUE M.M.,8U4; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,BLUE M.M.,8U4; CLEARANCE & BACK SONAR-WITH,BLUE M.M.,8U4

89341BSENSOR, ULTRASONIC, NO.2

main89341-33140-C0×2i201008-201201

BLACK,202

main89341-33140-A3×2i200711-200907

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,WHITE PEARL CS.,077

main89341-33140-B3×2i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),PREMIUM SILVER,1F2; PREMIUM SILVER,1F2; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),PREMIUM SILVER,1F2

main89341-33140-B6×2i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),GRAY M.M.,1G8; GRAY M.M.,1G8; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),GRAY M.M.,1G8

main89341-33140-C2×2i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),STARLIGHT BLACK GF.,217; STARLIGHT BLACK GF.,217; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),STARLIGHT BLACK GF.,217

main89341-33140-D3×2i201008-201201

DK.RED MC.CS.,3R7; EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK.RED MC.CS.,3R7; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),DK.RED MC.CS.,3R7

main89341-33140-E4×2i200907-201008

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),BEIGE ME.,4T1; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEWMONITOR(FRONT&SIDE),BEIGE ME.,4T1

main89341-33140-J4×2i200711-200907

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),BLUE M.M.,8U4; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,BLUE M.M.,8U4

89341CSENSOR, ULTRASONIC, NO.3

main89341-28450-A2×2i200907-201008

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),WHITE PEARL CS.,077; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEWMONITOR(FRONT&SIDE),WHITE PEARL CS.,077

main89341-28450-B2×2i200711-200907

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),PREMIUM SILVER,1F2; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,PREMIUM SILVER,1F2

main89341-28450-B4×2i201008-201010

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),GRAY M.M.,1G8; GRAY M.M.,1G8; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),GRAY M.M.,1G8

main89341-28450-C0×2i200711-200907

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),BLACK,202; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,BLACK,202

main89341-28450-C1×2i201008-201010

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),STARLIGHT BLACK GF.,217; STARLIGHT BLACK GF.,217; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),STARLIGHT BLACK GF.,217

main89341-28450-D1×2i200711-200907

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),DK.RED MC.CS.,3R7; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE,DK.RED MC.CS.,3R7

main89341-28450-E1×2i201008-201010

BEIGE ME.,4T1; EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BEIGE ME.,4T1; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),BEIGE ME.,4T1

main89341-28450-J3×2i200907-201008

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),BLUE M.M.,8U4; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEWMONITOR(FRONT&SIDE),BLUE M.M.,8U4

main89341-28451-A2×2i201011-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),WHITE PEARL CS.,077; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),WHITE PEARL CS.,077; WHITE PEARL CS.,077

main89341-28451-B2×2i201011-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),PREMIUM SILVER,1F2; PREMIUM SILVER,1F2; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),PREMIUM SILVER,1F2

main89341-28451-B4×2i201011-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),GRAY M.M.,1G8; GRAY M.M.,1G8; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),GRAY M.M.,1G8

main89341-28451-C0×2i201011-201201

BLACK,202; EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BLACK,202; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),BLACK,202

main89341-28451-C1×2i201011-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),STARLIGHT BLACK GF.,217; STARLIGHT BLACK GF.,217; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),STARLIGHT BLACK GF.,217

main89341-28451-D1×2i201011-201201

DK.RED MC.CS.,3R7; EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK.RED MC.CS.,3R7; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),DK.RED MC.CS.,3R7

main89341-28451-E1×2i201011-201201

BEIGE ME.,4T1; EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BEIGE ME.,4T1; TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),BEIGE ME.,4T1

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010i201008-201201

main89343-48010i201509

main89343-72010i201201-201509

89348DCLIP, ULTRASONIC SENSOR

main89348-33090i201201-201509

9015950311

main90159-50311
