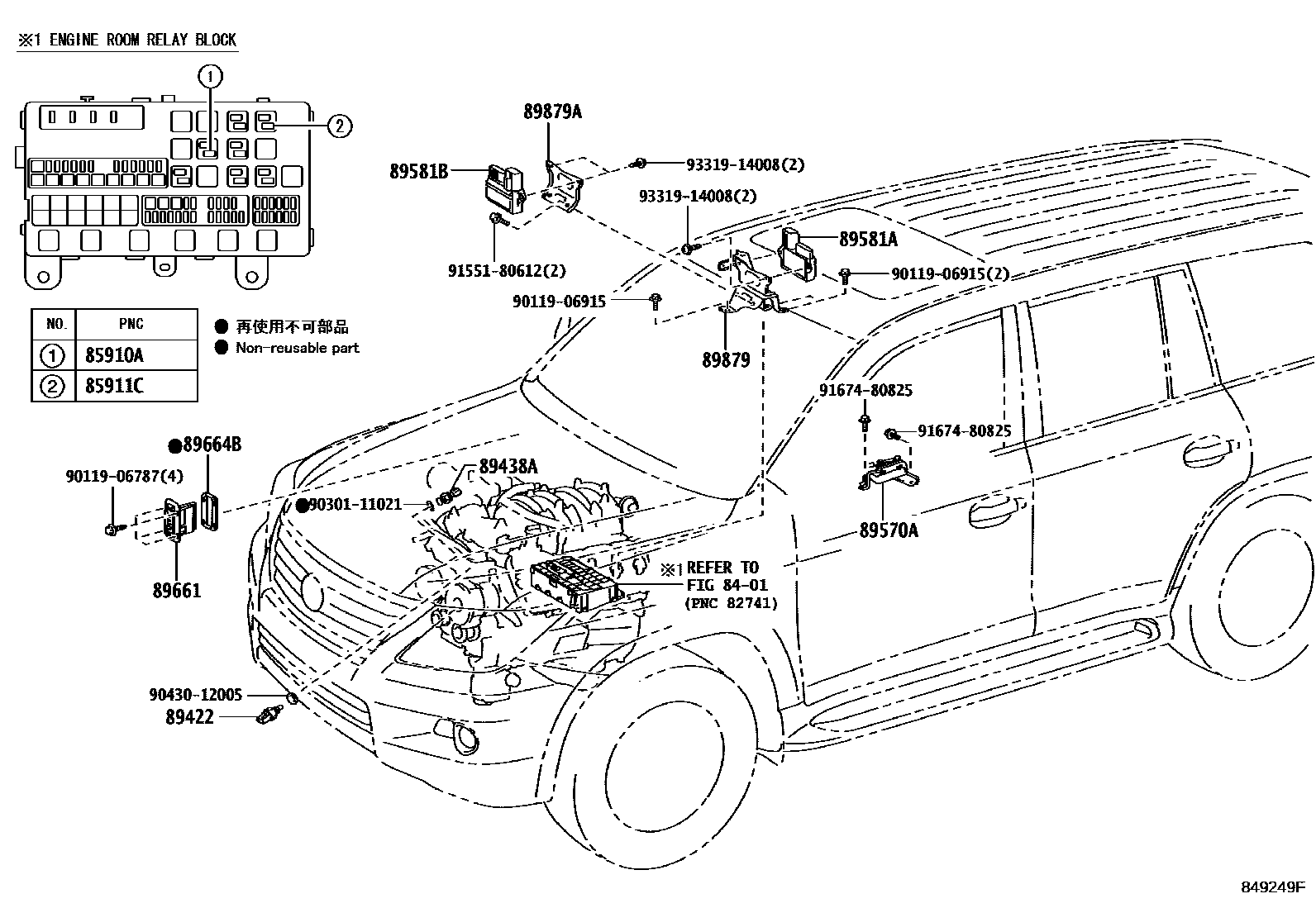

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iURJ201200711-201201

85911CRELAY, EFI 2

main90987-02027iURJ201200711-201201

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iURJ201200711-201201

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34010iURJ201200711-200802

main89448-34020iURJ201200803-201201

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60150iURJ201200711-201201

89581ADRIVER, AIR INJECTION CONTROL

main89581-34041iURJ201200711-201201

main89581-60010iURJ201201308-201509

89581BDRIVER, AIR INJECTION CONTROL

main89581-34051iURJ201201201-201308

main89581-34080iURJ201201509

89661COMPUTER, ENGINE CONTROL

main89661-60G70iURJ201200711-201201

main89661-60R20supersedes 89661-60V20iURJ201201201-201301

main89661-60Y70iURJ201201509

main89661-60G80iURJ201200907-201201

CHILE SPEC; KAZAKHSTAN SPEC

main89661-60U90supersedes 89661-60U70iURJ201201308-201509

TAIWAN SPEC

main89661-60X90iURJ201201908

EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

main89661-60Y90iURJ201201608

EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

main89666-60C60iURJ201201909-202008

DENSO,EXHAUST EMISSION CONTROL-EUROPE STEP6, WITH(OBD)

89664BSEAL, ENGINE CONTROL COMPUTER

main89664-34010iURJ201200711-201201

89879BRACKET, INJECTOR DRIVER

main89589-34020iURJ201200711-201201

89879ABRACKET, INJECTOR DRIVER

main89589-34030iURJ201200711-201201

9011906787

main90119-06787

9011906915

main90119-06915

9030111021

main90301-11021

9043012005

main90430-12005

9155180612

main91551-80612

9167480825

main91674-80825

9331914008

main93319-14008

19 parts on this diagram · 3 diagrams in section
