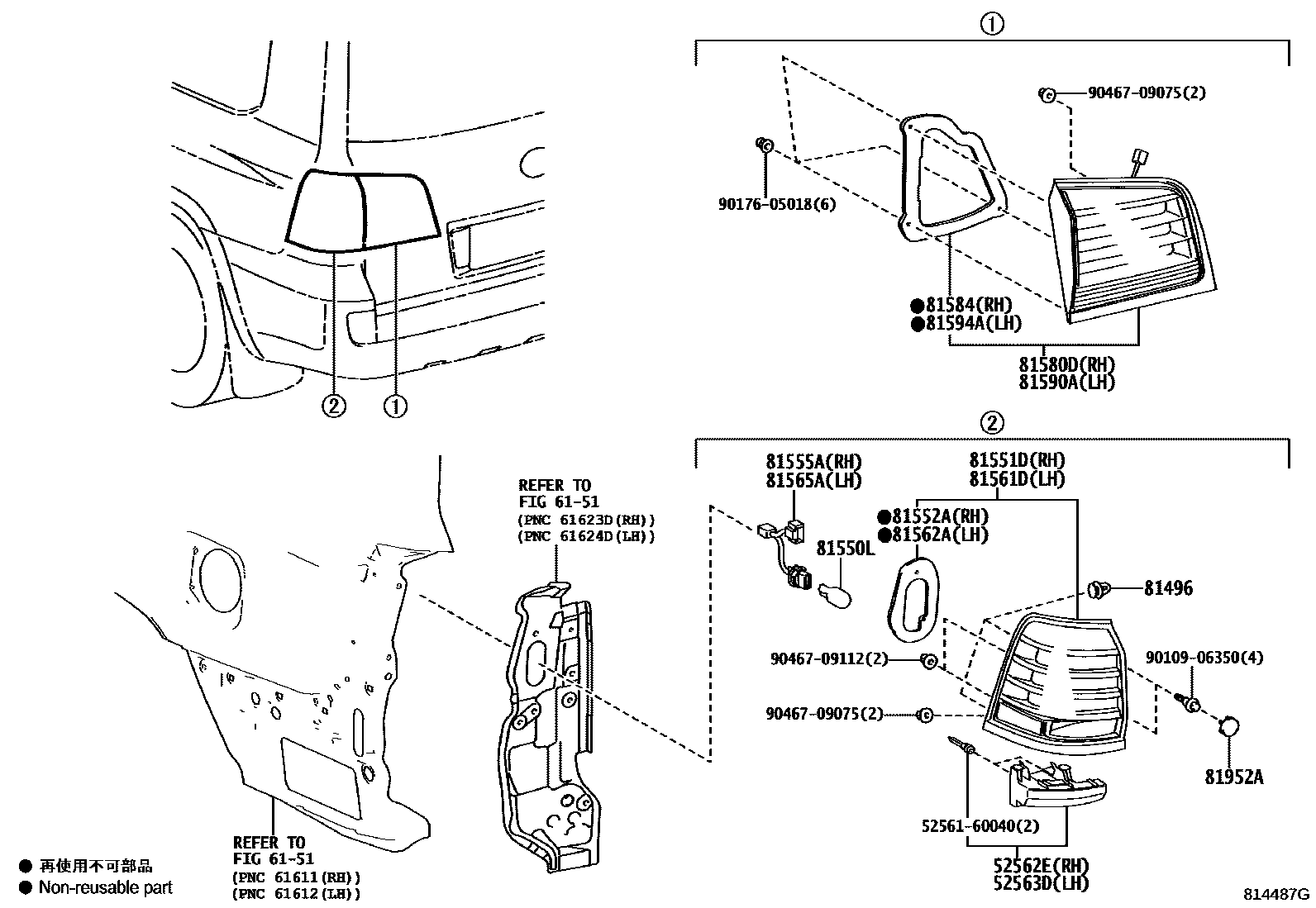

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60050iURJ201200711-201201

main52562-60080iURJ201,VDJ201201509

main52562-60100iURJ201201201-201509

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60050iURJ201200711-201201

main52563-60080iURJ201,VDJ201201509

main52563-60100iURJ201201201-201509

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iURJ201200711-201509

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iURJ201200711-201201

12V 21W

main90981-15021iURJ201201201-201509

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60840iURJ201200711-200812

main81551-60880iURJ201200812-201201

main81551-60B20iURJ201201201-201509

main81551-60C00iURJ201,VDJ201201509-201708

main81551-60C20iURJ201,VDJ201201708

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-60850iURJ201200711-201509

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60850iURJ201200711-201201

main81555-60A70iURJ201201201-201509

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60770iURJ201200711-200812

main81561-60820iURJ201200812-201201

main81561-60B00iURJ201201201-201509

main81561-60C00iURJ201,VDJ201201509-201708

main81561-60C20iURJ201,VDJ201201708

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-60780iURJ201200711-201509

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60850iURJ201200711-201201

main81555-60A70iURJ201201201-201509

81580DLAMP ASSY, REAR, RH

main81580-60210iURJ201200711-200812

main81580-60230iURJ201200812-201201

main81580-60310iURJ201201201-201302

main81580-60311iURJ201201302-201509

81584PACKING, REAR LAMP RH

main81584-60220iURJ201200711-201201

81590ALAMP ASSY, REAR, LH

main81590-60240iURJ201200711-200812

main81590-60260iURJ201200812-201201

main81590-60340iURJ201201201-201302

main81590-60341iURJ201201302-201509

81594AGASKET, REAR LAMP LH

main81584-60350iURJ201,VDJ201201509

main81594-60250iURJ201200711-201201

main81594-60300iURJ201201201-201509

81952ACOVER, REAR LAMP, RH

main81952-22010iURJ201200711-201201

5256160040RETAINER, REAR BUMPER, UPPER CENTER

main52561-60040

9010906350

main90109-06350

9017605018

main90176-05018

9046709075

main90467-09075

9046709112

main90467-09112

21 parts on this diagram · 3 diagrams in section
