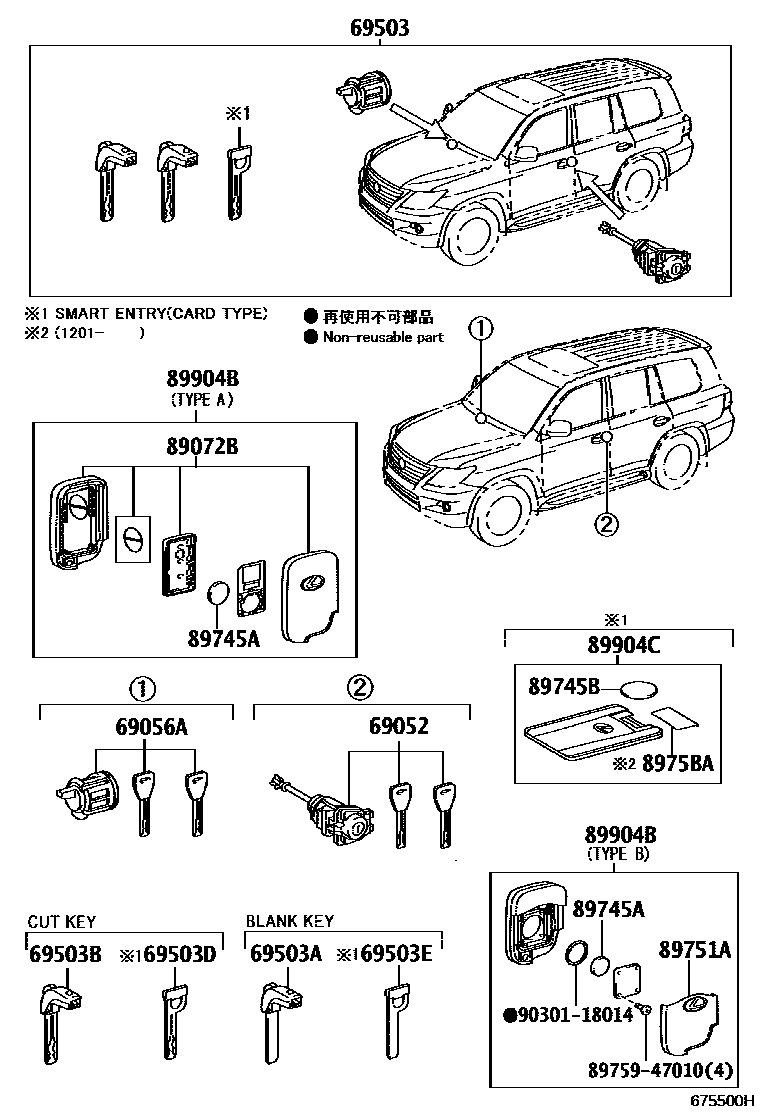

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-60290iURJ201200711-200806

sub69052-60291

main69052-60291iURJ201200807-200811

sub69052-60292

main69052-60292iURJ201200812-201509

main69052-60390iURJ201,VDJ201201509

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iURJ201200711-201509

69503CYLINDER SET, LOCK

main69005-60G80iURJ201,VDJ201201509

main69005-6C310iURJ201200711-200806

sub69005-6C311

main69005-6C311iURJ201200807-200811

sub69005-6C312

main69005-6C312iURJ201200812-201509

sub69005-6C292

69503AKEY, BLANK

main69515-30380iURJ201,VDJ201201509

MASTER KEY,W(*68)

main69515-50260iURJ201200711-201509

BLANK KEY

69503BKEY, CUT

main69515-30370iURJ201,VDJ201201509

MASTER KEY,W(*68)

main69515-50240iURJ201200711-201509

MASTER KEY

69503DKEY, CUT(CARD KEY)

main69515-30330iURJ201,VDJ201201509

MASTER KEY

69503EKEY, BLANK(CARD KEY)

main69515-30350iURJ201,VDJ201201509

MASTER KEY

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

89745ABATTERY, TRANSMITTER

main89745-50020iURJ201,VDJ201201509

CR2032

main89745-52030iURJ201200711-201509

CR1632

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iURJ201,VDJ201201509

CR2412

89751ACOVER, TRANSMITTER HOUSING

main89751-30100iURJ201201001-201509

main89751-48290iURJ201,VDJ201201509

main89751-60050iURJ201200711-200912

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50020iURJ201,VDJ201201509-201908

main8975B-50030iURJ201,VDJ201201908

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-48N20iURJ201,VDJ201201908-202008

main89904-60091iURJ201200805-200912

TYPE B:REFER ILLUST.

sub89904-60820

main89904-60270iURJ201200711-200805

TYPE B:REFER ILLUST.

main89904-60820iURJ201201001-201008

TYPE B:REFER ILLUST.

main89904-60830iURJ201201008-201201

TYPE B:REFER ILLUST.

main89904-60830iURJ201201201-201509

main89904-78590iURJ201,VDJ201201509-201707

sub89904-78591

main89904-78591iURJ201,VDJ201201708-201908

main89904-78J00iURJ201,VDJ201202008

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-48S90iURJ201,VDJ201201908-202005

sub89904-48S91

main89904-48S91iURJ201,VDJ201202006-202008

sub89904-78G01

main89904-53591iURJ201,VDJ201201509-201707

main89904-53592iURJ201,VDJ201201708-201811

main89904-53593iURJ201,VDJ201201812-201908

sub89904-53594

main89904-78G00iURJ201,VDJ201202008

sub89904-78G01

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

9030118014

main90301-18014

16 parts on this diagram · 2 diagrams in section
