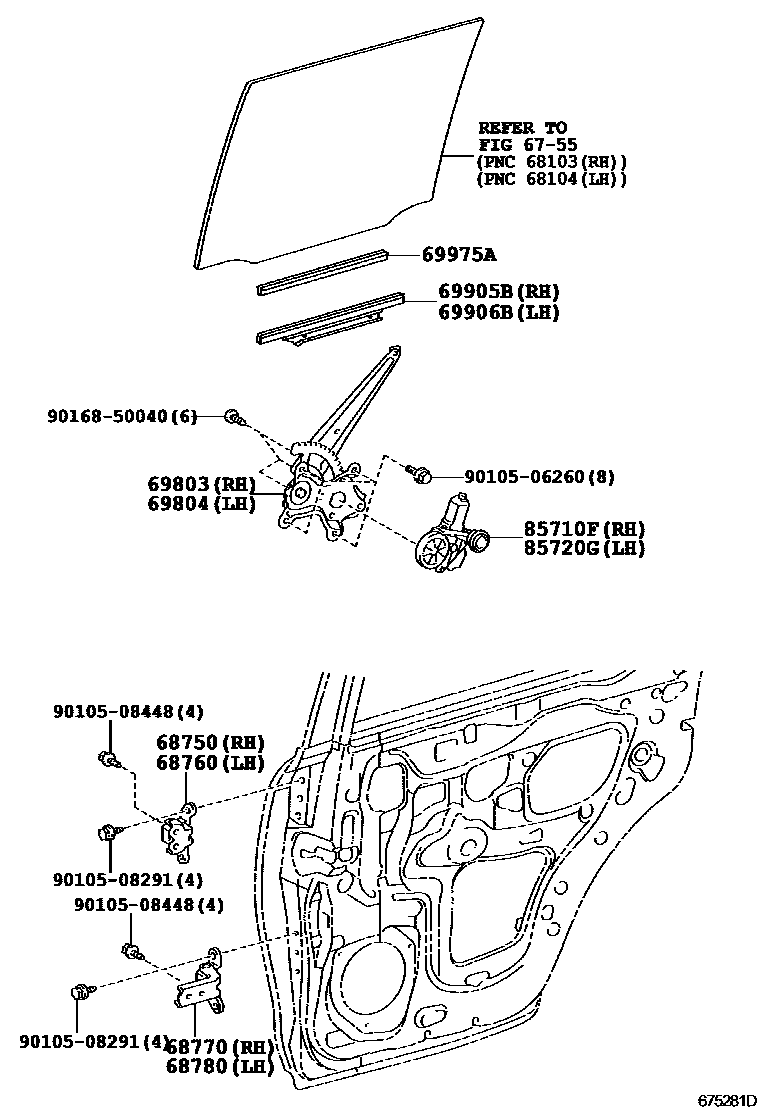

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-60080iURJ201200711-201201

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-60060iURJ201200711-201201

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-60040iURJ201200711-201201

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-60040iURJ201200711-201201

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-35080iURJ201200711-201201

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-35080iURJ201200711-201201

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0C020iURJ201200711-201201

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0C020iURJ201200711-201201

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010×2iURJ201200711-201201

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-60160iURJ201200711-200910

main85720-60161iURJ201200911-201201

main85720-60162iURJ201201301-201509

main85720-60341iURJ201,VDJ201201509

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-60180iURJ201200711-200910

main85710-60181iURJ201200911-201201

main85710-60182iURJ201201301-201509

main85710-60361iURJ201,VDJ201201509

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
