INSIDE TRIM BOARD
51775COVER,REAR STEP
IVORY,TRIM0#
IVORY,TRIM02
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM05,06,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
REAR NO.2 SEAT-WITHOUT
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,44
BLACK,TRIM06,24,31,33,44
62212GARNISH, FRONT PILLAR, LH
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,44
BLACK,TRIM06,24,31,33,44
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,33,44
BLACK,TRIM06,24,31,44
62412GARNISH, CENTER PILLAR, LH
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,33,44
BLACK,TRIM06,24,31,44
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
62421COVER, CENTER PILLAR GARNISH, RH
62422COVER, CENTER PILLAR GARNISH, LH
62431CGARNISH, ROOF SIDE RAIL, FRONT RH
IVORY,TRIM0#,42,5#
IVORY,TRIM02
LT.GRAY,TRIM21,22,43
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,44
BLACK,TRIM24,3#,41
BLACK,TRIM06,24,31,33,44
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
62432CGARNISH, ROOF SIDE RAIL, FRONT LH
IVORY,TRIM02
IVORY,TRIM0#,42,5#
LT.GRAY,TRIM21,22,43
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,44
BLACK,TRIM24,3#,41
BLACK,TRIM06,24,31,33,44
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
62471JCLIP (FOR ROOF SIDE GARNISH)
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62581FCLIP (FOR QUARTER PILLAR GARNISH)
62638GARNISH, REAR QUARTER TRIM, FRONT RH
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,33,44
BLACK,TRIM06,24,31,44
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
62639GARNISH, REAR QUARTER TRIM, FRONT LH
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,44
BLACK,TRIM06,24,31,33,44
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913BPLATE, FRONT DOOR SCUFF, RH
IVORY,TRIM0#
IVORY,TRIM02
BLACK,TRIM05,06,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
67914BPLATE, FRONT DOOR SCUFF, LH
IVORY,TRIM0#
IVORY,TRIM02
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM05,06,2#,3#,4#,5#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917CPLATE, REAR DOOR SCUFF, RH
IVORY,TRIM0#
IVORY,TRIM02
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM05,06,2#,3#,4#,5#
67918EPLATE, REAR DOOR SCUFF, LH
IVORY,TRIM02
IVORY,TRIM0#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM05,06,2#,3#,4#,5#
7152
8715
9015950322
main90159-50322
9015960303
main90159-60303
9018905096
main90189-05096
9018906227
main90189-06227
91631B0625
main91631-B0625

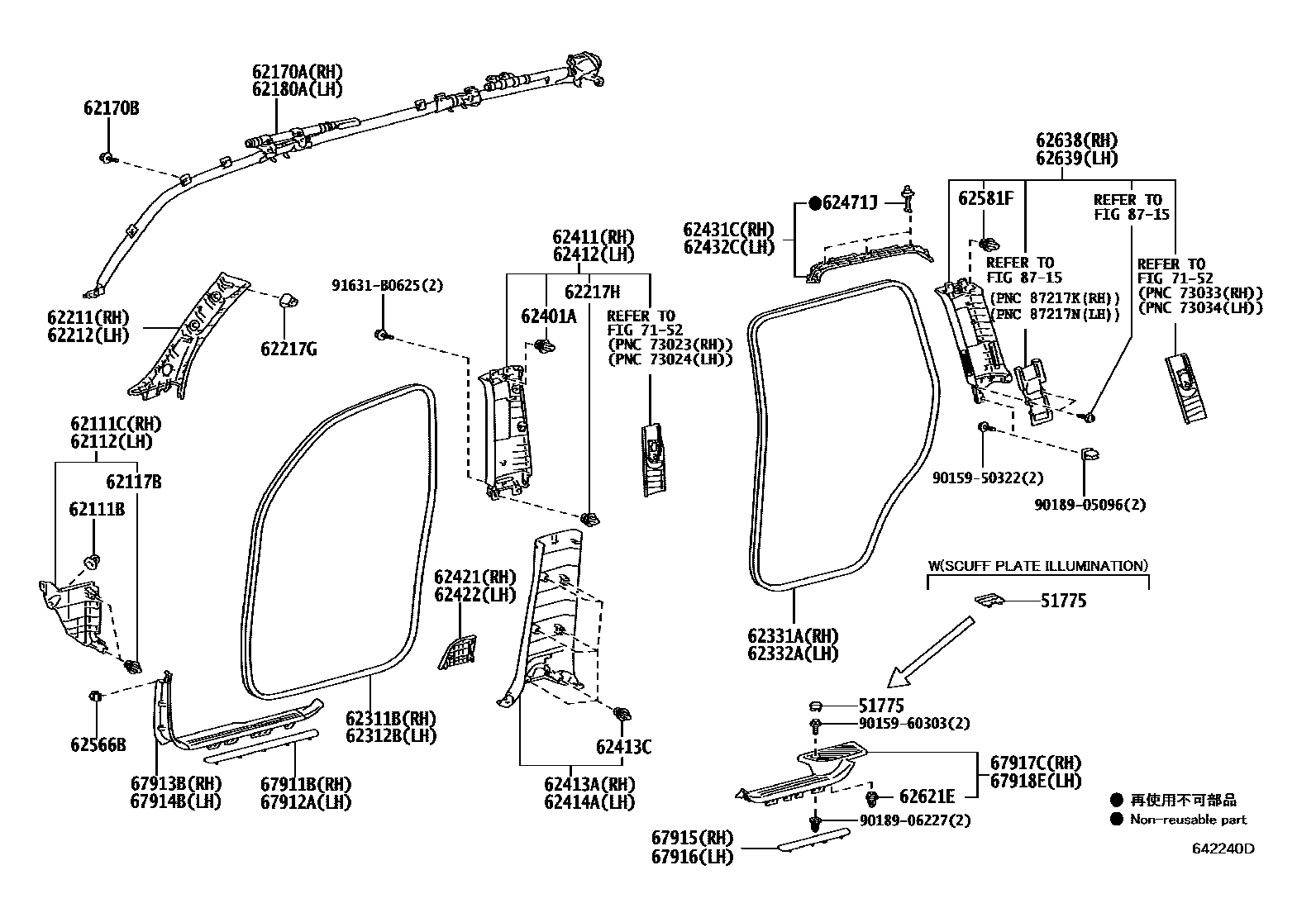

47 parts on this diagram · 3 diagrams in section
