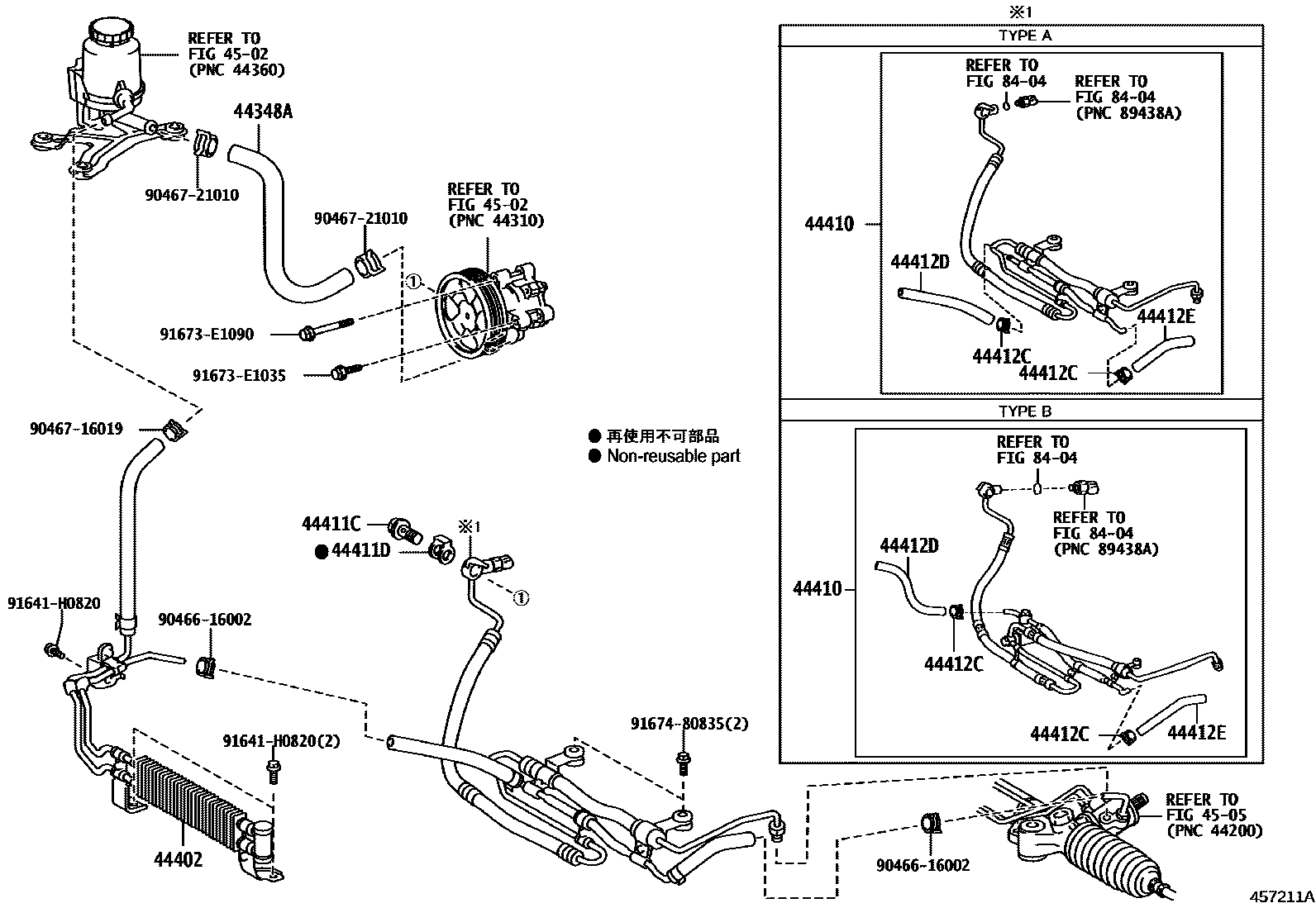

POWER STEERING TUBE

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60410i201201-201509

main44348-60420i201509

main44348-60480i201509

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-60042i201509

main44402-60051i200910-201201

CHILE SPEC; KAZAKHSTAN SPEC; TAIWAN SPEC; UKRAINE SPEC

44410TUBE ASSY, PRESSURE FEED

main44410-60A80i201509-201512

main44410-60710supersedes 44410-60740i201201-201509

AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC,TYPE A:REFER ILLUST.; TAIWAN SPEC,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.; UKRAINE SPEC,TYPE A:REFER ILLUST.

main44410-60890i201509-201608

main44410-60891supersedes 44410-60A82i201908

AZERBAIJAN, GEORGIA, ARMENIA SPEC; MOROCCO SPEC; SOUTH AMERICA SPEC

main44410-60A20supersedes 44410-60A30i201509

AZERBAIJAN, GEORGIA, ARMENIA SPEC; CHILE SPEC; KAZAKHSTAN SPEC

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034i200711-201201

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040i201509

44412CCLAMP(FOR RETURN HOSE)

main90466-16002×2i200711-201201

44412DHOSE, RETURN, NO.1

main44412-60370supersedes 44412-60460i200910-201201

CHILE SPEC; KAZAKHSTAN SPEC; TAIWAN SPEC; UKRAINE SPEC

44412EHOSE, RETURN, NO.2

main44412-60380i200711-201201

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9046616002

main90466-16002

9046716019

main90467-16019

9046721010

main90467-21010

91641H0820

main91641-H0820

91673E1035

main91673-E1035

91673E1090

main91673-E1090

9167480835

main91674-80835

18 parts on this diagram · 3 diagrams in section
