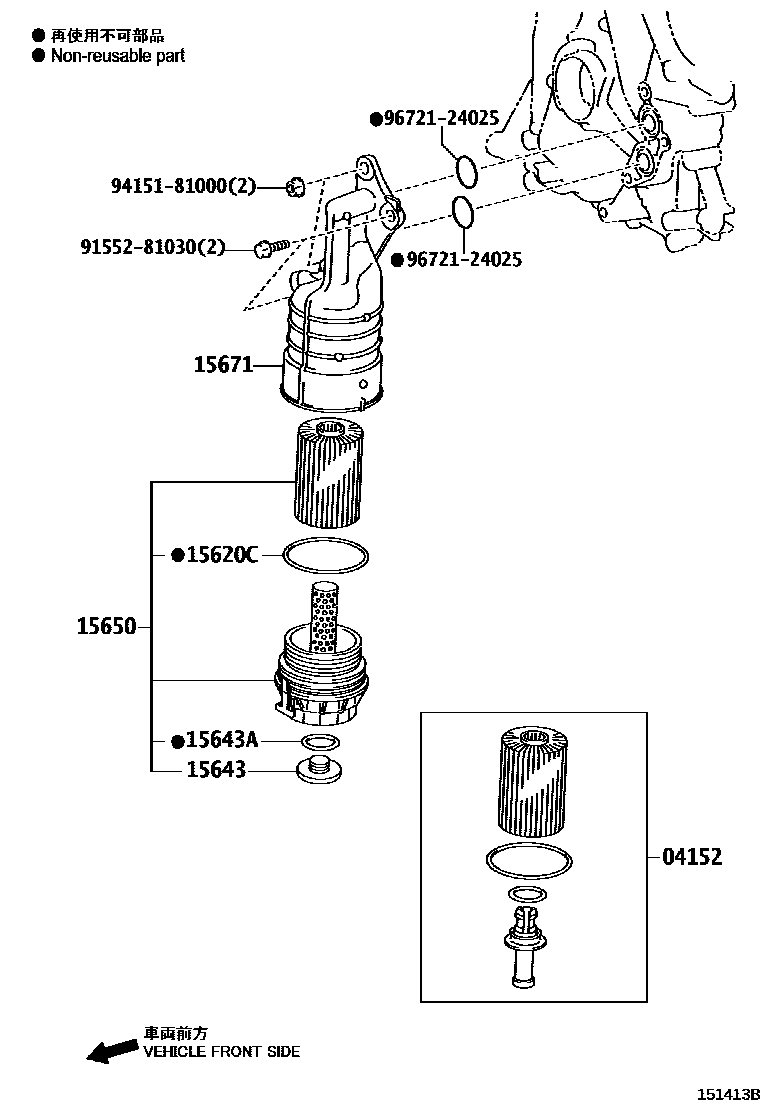

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-38020i3URFE..URJ201200711-201201

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i3URFE..URJ201200711-201201

15643PLUG, OIL FILTER DRAIN

main15643-31050i3URFE..URJ201200711-201201

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i3URFE..URJ201200711-201201

15650CAP ASSY, OIL FILTER W/ELEMEMT

main15650-38010i3URFE..URJ201200711-201201

15671BRACKET, OIL FILTER

main15671-38010i3URFE..URJ201200711-201201

9155281030

main91552-81030

9415181000

main94151-81000

9672124025

main96721-24025

9 parts on this diagram · 2 diagrams in section
