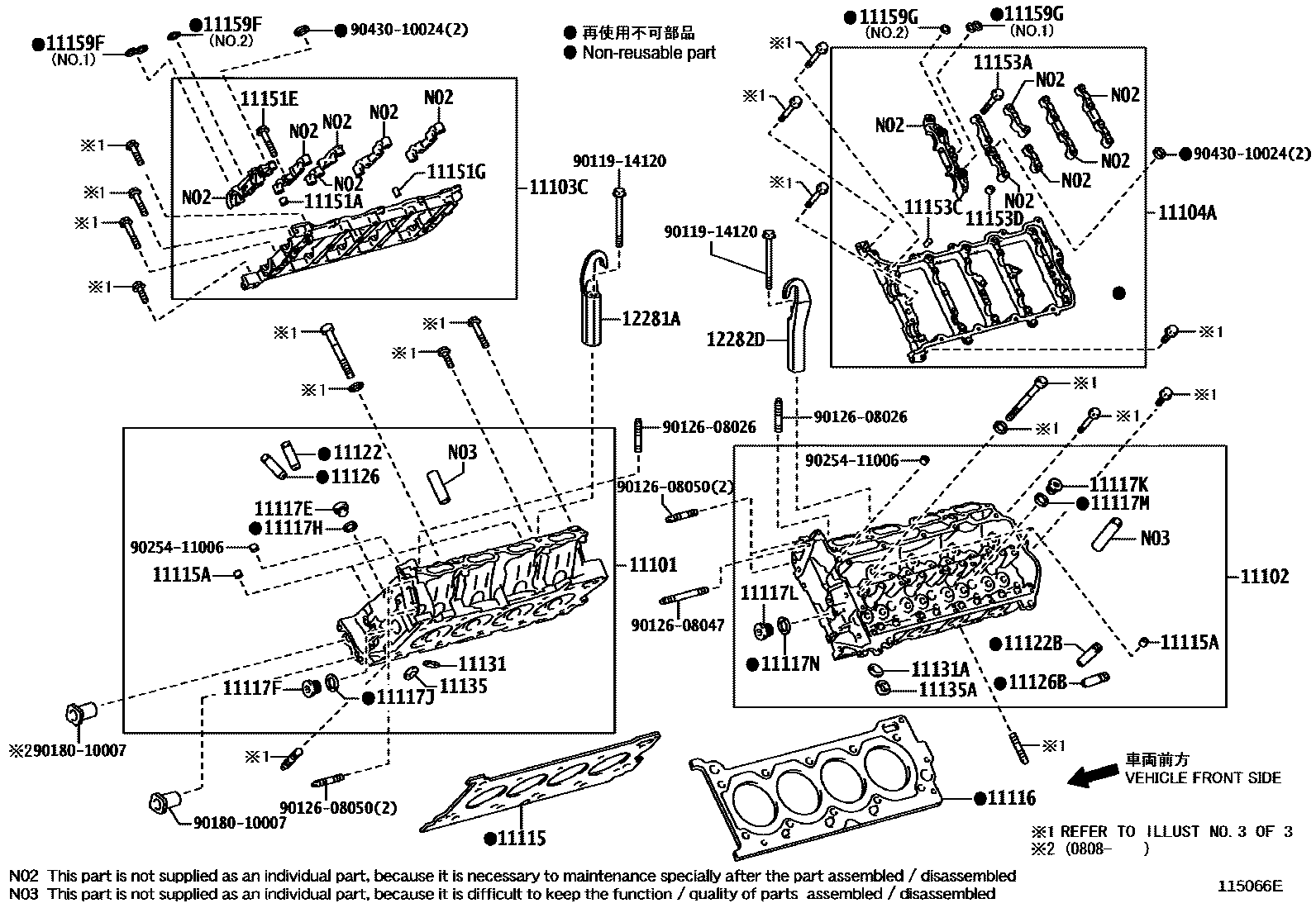

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-39646
sub11101-39827
sub11101-39826
sub11101-38H20
sub11101-51031
*494
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11115GASKET, CYLINDER HEAD
sub11115-38021
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
MARKD,REFER REPAIR MANUAL
MARKE,REFER REPAIR MANUAL
11115APIN, RING
11116GASKET, CYLINDER HEAD, NO.2
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
MARKD,REFER REPAIR MANUAL
MARKE,REFER REPAIR MANUAL
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117MGASKET(FOR WATER HOLE NO.2)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
11151GPIN, STRAIGHT(FOR CAMSHAFT HOUSING RH)
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11153CPIN, STRAIGHT(FOR CAMSHAFT HOUSING LH)
11153DPIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
NO.1
NO.2
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
NO.1
NO.2
9011914120
main90119-14120
9012608026
main90126-08026
9012608047
main90126-08047
9012608050
main90126-08050
9018010007
main90180-10007
9025411006
main90254-11006
9043010024
main90430-10024
40 parts on this diagram · 6 diagrams in section
