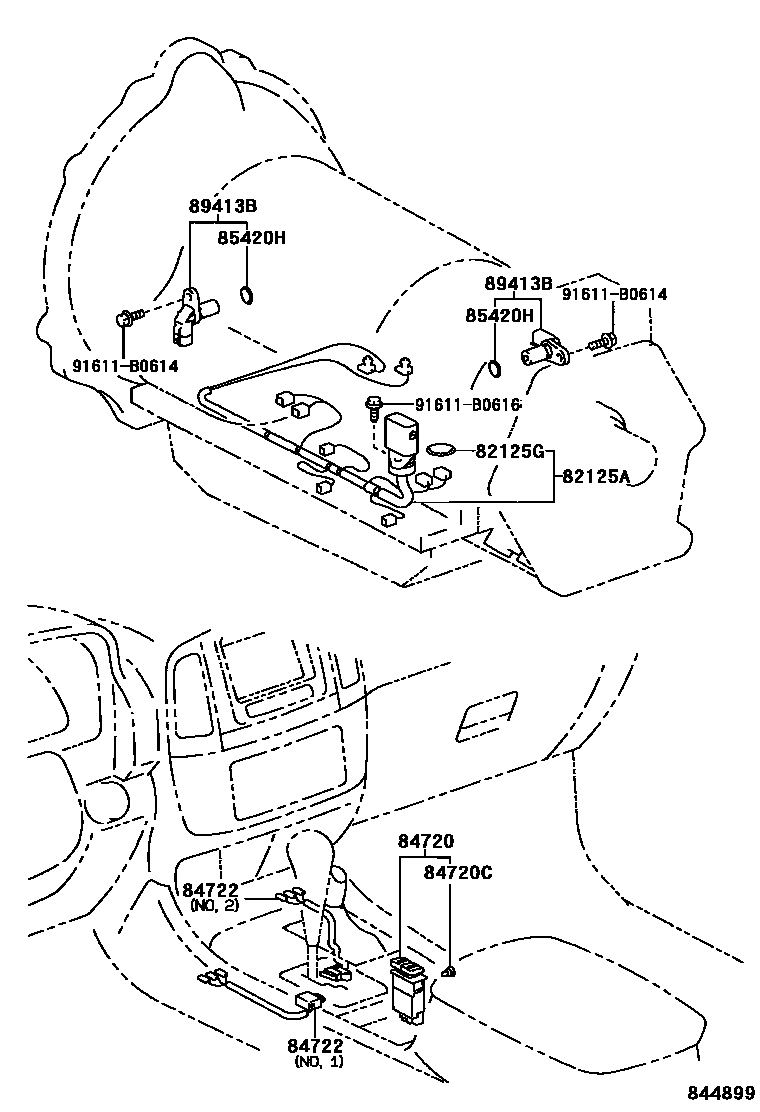

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-35130iUZJ100200308-200505

main82125-60550iUZJ100200208-200308

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iUZJ100200208-200505

84720SWITCH ASSY, PATTERN SELECT

main84720-60120iUZJ100200208-200505

84720CBULB(FOR PATTERN SELECT SWITCH)

main90010-01039iUZJ100200505

14V0.91W,W(GREEN CAP

84722SWITCH, TRANSMISSION CONTROL

main84722-60220iUZJ100200208-200505

NO.1

main84722-60230iUZJ100200208-200505

NO.2

85420HRING, O(FOR SPEED SENSOR)

main90301-11008×2iUZJ100200208-200505

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010×2iUZJ100200208-200505

91611B0614

main91611-B0614

91611B0616

main91611-B0616

9 parts on this diagram · 1 diagram in section
