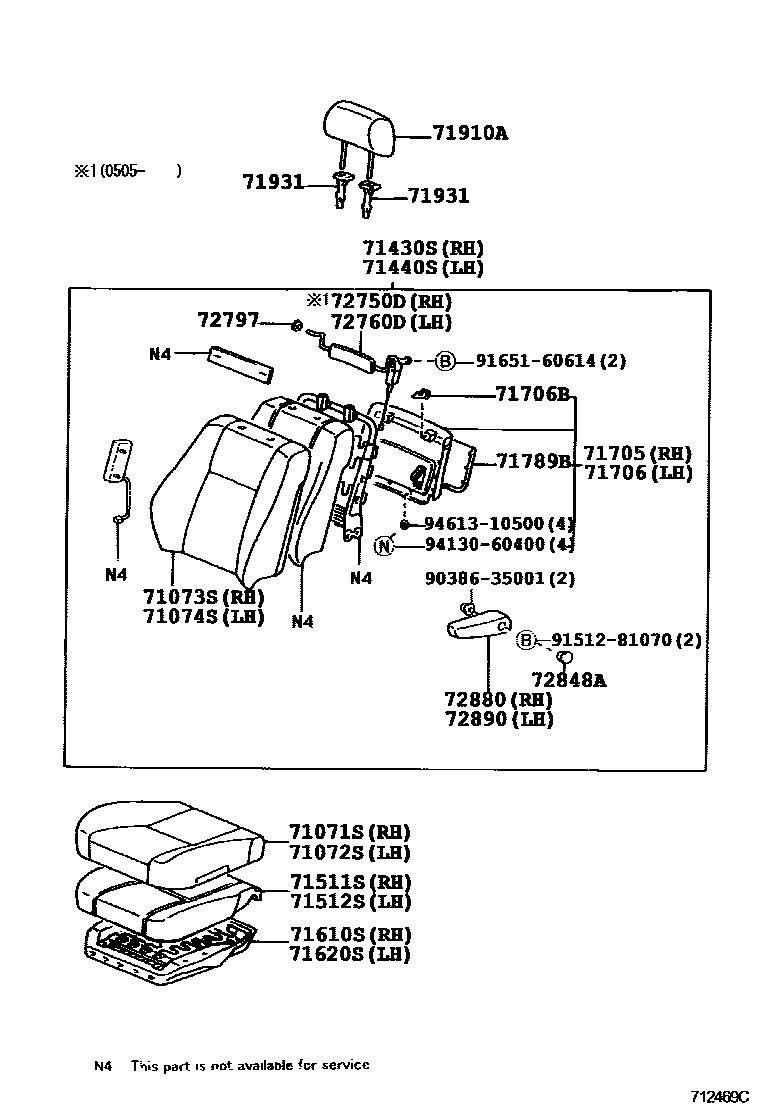

SEAT & SEAT TRACK

0001 1FRONT SEAT 0002 1FRONT SEAT (ADJUSTER) 0003 1REAR NO.1 SEAT (TYPE B) 0004 1REAR NO.1 SEAT (TYPE A) 0005 1REAR NO.1 SEAT (ADJUSTER) (TY0006 1REAR NO.1 SEAT (ADJUSTER) (TY0007 1REAR NO.1 SEAT (HINGE & STRIK0008 1REAR NO.2 SEAT 0009 1REAR NO.2 SEAT (FITTING PARTS0010 1REAR NO.2 SEAT (STRIKER)

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-60810-A1iUZJ100200208-200308

IVORY,TRIM0#

main71071-60810-B1iUZJ100200208-200308

STONE,TRIM1#

main71071-60811-A2iUZJ100200505-200506

IVORY,TRIM0#

main71071-60811-B2iUZJ100200505-200506

DARK GRAY,TRIM1#

main71071-60812-A2iUZJ100200507-200708

IVORY,TRIM0#

main71071-60812-B2iUZJ100200507-200708

STONE,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-60730-A1iUZJ100200208-200308

IVORY,TRIM0#

main71072-60730-B1iUZJ100200208-200308

STONE,TRIM1#

main71072-60731-A2iUZJ100200505-200506

IVORY,TRIM0#

main71072-60731-B2iUZJ100200505-200506

DARK GRAY,TRIM1#

main71072-60732-A2iUZJ100200507-200708

IVORY,TRIM0#

main71072-60732-B2iUZJ100200507-200708

STONE,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-6A371-A1iUZJ100200505-200506

CHINA SPEC,IVORY,TRIM0#

main71073-6A371-B1iUZJ100200505-200506

CHINA SPEC,DARK GRAY,TRIM1#

main71073-6A372-A1iUZJ100200507-200708

CHINA SPEC,IVORY,TRIM0#

main71073-6A372-B1iUZJ100200507-200708

CHINA SPEC,STONE,TRIM1#

main71073-6A380-A0iUZJ100200208-200308

IVORY,TRIM0#

main71073-6A380-B0iUZJ100200208-200308

STONE,TRIM1#

main71073-6A381-A1iUZJ100200308-200505

IVORY,TRIM0#

main71073-6A381-B1iUZJ100200505-200506

DARK GRAY,TRIM1#

main71073-6A382-A1iUZJ100200507-200708

IVORY,TRIM0#

main71073-6A382-B1iUZJ100200507-200708

STONE,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-60881-A1iUZJ100200505-200506

CHINA SPEC,IVORY,TRIM0#

main71074-60881-B1iUZJ100200505-200506

CHINA SPEC,DARK GRAY,TRIM1#

main71074-60882-A1iUZJ100200507-200708

CHINA SPEC,IVORY,TRIM0#

main71074-60882-B1iUZJ100200507-200708

CHINA SPEC,STONE,TRIM1#

main71074-60890-A0iUZJ100200208-200308

IVORY,TRIM0#

main71074-60890-B0iUZJ100200208-200308

STONE,TRIM1#

main71074-60891-A1iUZJ100200505-200506

IVORY,TRIM0#

main71074-60891-B1iUZJ100200505-200506

DARK GRAY,TRIM1#

main71074-60892-A1iUZJ100200507-200708

IVORY,TRIM0#

main71074-60892-B1iUZJ100200507-200708

STONE,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-60A40-A0iUZJ100200505-200506

CHINA SPEC,IVORY,TRIM0#

main71430-60A40-B0iUZJ100200505-200506

CHINA SPEC,DARK GRAY,TRIM1#

main71430-60A41-A0iUZJ100200705-200708

CHINA SPEC,IVORY,TRIM0#

main71430-60A41-B0iUZJ100200507-200610

CHINA SPEC,DARK GRAY,TRIM1#

main71430-60A42-A0iUZJ100200703-200705

CHINA SPEC,IVORY,TRIM0#

main71430-60A42-B0iUZJ100200703-200705

CHINA SPEC,DARK GRAY,TRIM1#

main71430-6A400-A0iUZJ100200208-200308

IVORY,TRIM0#

main71430-6A400-B0iUZJ100200208-200308

STONE,TRIM1#

main71430-6A520-A0iUZJ100200407-200505

IVORY,TRIM0#

main71430-6A520-B0iUZJ100200407-200505

STONE,TRIM1#

main71430-6A521-A0iUZJ100200507-200708

IVORY,TRIM0#

main71430-6A521-B0iUZJ100200507-200708

DARK GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-60A40-A0iUZJ100200505-200506

CHINA SPEC,IVORY,TRIM0#

main71440-60A40-B0iUZJ100200505-200506

CHINA SPEC,DARK GRAY,TRIM1#

main71440-60A41-A0iUZJ100200611-200703

CHINA SPEC,IVORY,TRIM0#

main71440-60A41-B0iUZJ100200507-200610

CHINA SPEC,DARK GRAY,TRIM1#

main71440-60A42-A0iUZJ100200703-200705

CHINA SPEC,IVORY,TRIM0#

main71440-60A42-B0iUZJ100200703-200705

CHINA SPEC,DARK GRAY,TRIM1#

main71440-6A210-A0iUZJ100200208-200308

IVORY,TRIM0#

main71440-6A210-B0iUZJ100200208-200308

STONE,TRIM1#

main71440-6A211-A1iUZJ100200407-200505

IVORY,TRIM0#

main71440-6A211-B1iUZJ100200308-200505

STONE,TRIM1#

main71440-6A212-A0iUZJ100200507-200708

IVORY,TRIM0#

main71440-6A212-B0iUZJ100200507-200708

DARK GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-60060iUZJ100200505-200507

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-60100iUZJ100200208-200505

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-60230iUZJ100200208-200505

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-60230iUZJ100200505-200507

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-60210-A1iUZJ100200703-200705

CHINA SPEC,IVORY,TRIM0#

main71705-60210-B0iUZJ100200703-200705

CHINA SPEC,STONE,TRIM1#

main71705-60240-A0iUZJ100200308-200505

IVORY,TRIM0#

main71705-60240-B0iUZJ100200505-200708

STONE,TRIM1#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-60210-A1iUZJ100200703-200705

CHINA SPEC,IVORY,TRIM0#

main71705-60210-B0iUZJ100200703-200705

CHINA SPEC,STONE,TRIM1#

main71705-60240-A0iUZJ100200208-200308

IVORY,TRIM0#

main71705-60240-B0iUZJ100200208-200308

STONE,TRIM1#

71706BCLIP, FRONT SEATBACK BOARD

main71769-60020×4iUZJ100200208-200505

71789BPOCKET, FRONT SEATBACK BOARD

main71780-60030-A1×2iUZJ100200505-200708

IVORY,TRIM0#

main71780-60030-B1×2iUZJ100200208-200505

STONE,TRIM1#

main71780-60040-A1×2iUZJ100200703-200705

CHINA SPEC,IVORY,TRIM0#

main71780-60040-B0×2iUZJ100200703-200705

CHINA SPEC,STONE,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-60450-A1×2iUZJ100200208-200308

IVORY,TRIM0#

main71910-60450-B1×2iUZJ100200208-200308

STONE,TRIM1#

main71910-60451-A2×2iUZJ100200308-200505

IVORY,TRIM0#

main71910-60451-B2×2iUZJ100200505-200506

STONE,TRIM1#

main71910-60452-A2×2iUZJ100200507-200708

IVORY,TRIM0#

main71910-60452-B2×2iUZJ100200507-200708

STONE,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-60030-A1×2iUZJ100200505-200708

W(LOCK),IVORY,TRIM0#

main71930-60030-B1×2iUZJ100200505-200708

W(LOCK),STONE,TRIM1#

main71931-60020-A1×2iUZJ100200208-200505

W/O(LOCK),IVORY,TRIM0#

main71931-60020-B1×2iUZJ100200208-200505

W/O(LOCK),STONE,TRIM1#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72760-60040iUZJ100200505

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-60070iUZJ100200208-200505

72797SPACER, LUMBAR SUPPORT

main72797-50010iUZJ100200208-200505

72848ACAP, SEAT ARMREST, NO.1

main72848-60010-A1×2iUZJ100200208-200505

IVORY,TRIM0#

main72848-60010-B1×2iUZJ100200208-200505

STONE,TRIM1#

72880ARMREST ASSY, SEAT, C RH

main72880-60030-A1iUZJ100200208-200308

IVORY,TRIM0#

main72880-60030-B1iUZJ100200208-200308

STONE,TRIM1#

main72880-60031-A1iUZJ100200505-200708

IVORY,TRIM0#

main72880-60031-B1iUZJ100200308-200505

STONE,TRIM1#

72890ARMREST ASSY, SEAT, C LH

main72890-60030-A1iUZJ100200208-200308

IVORY,TRIM0#

main72890-60030-B1iUZJ100200208-200308

STONE,TRIM1#

main72890-60031-A1iUZJ100200308-200505

IVORY,TRIM0#

main72890-60031-B1iUZJ100200308-200505

STONE,TRIM1#

9038635001

main90386-35001

9151281070

main91512-81070

9165160614

main91651-60614

9413060400

main94130-60400

9461310500

main94613-10500

27 parts on this diagram · 10 diagrams in section
