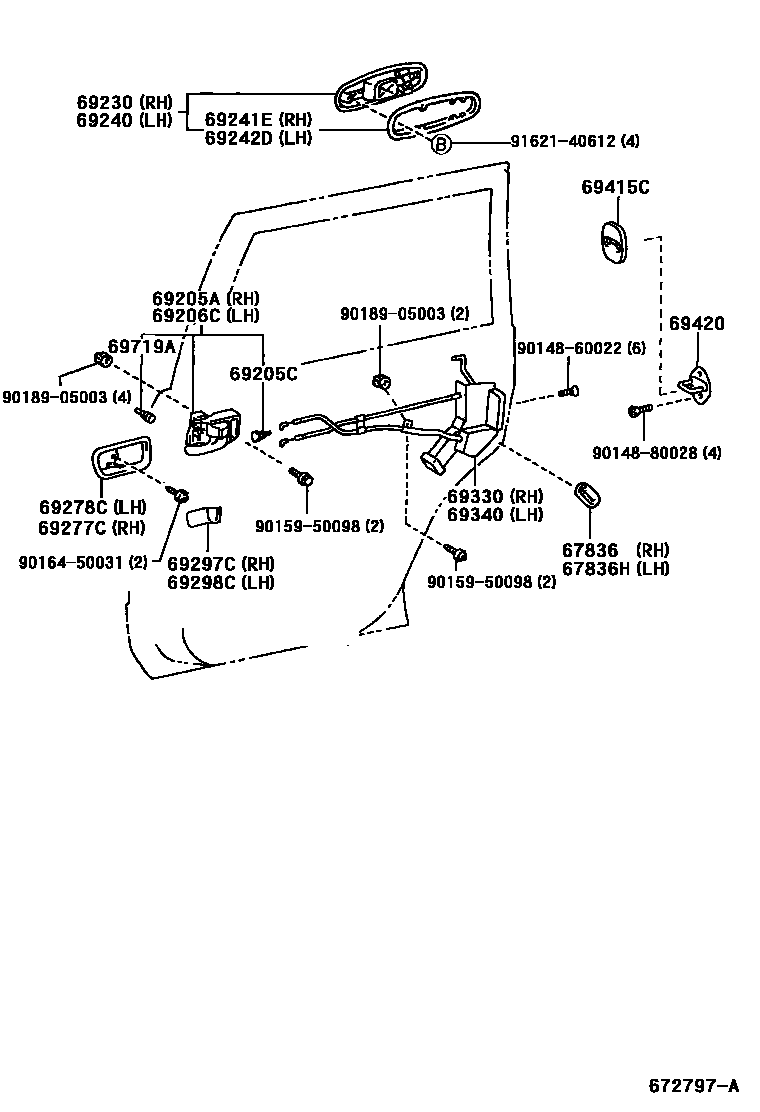

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
STONE,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
STONE,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241EPAD, REAR DOOR OUTSIDE HANDLE, RH
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
STONE,TRIM1#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
IVORY,TRIM0#
STONE,TRIM1#
69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH
IVORY,TRIM0#
STONE,TRIM1#
69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH
IVORY,TRIM0#
STONE,TRIM1#
69415CCOVER, DOOR LOCK STRIKER, REAR
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69719ACUSHION, DOOR LOCK CONTROL
9014860022
main90148-60022
9014880028
main90148-80028
9015950098
main90159-50098
9016450031
main90164-50031
9018905003
main90189-05003
9162140612
main91621-40612
24 parts on this diagram · 1 diagram in section
