EPC Data

INSIDE TRIM BOARD

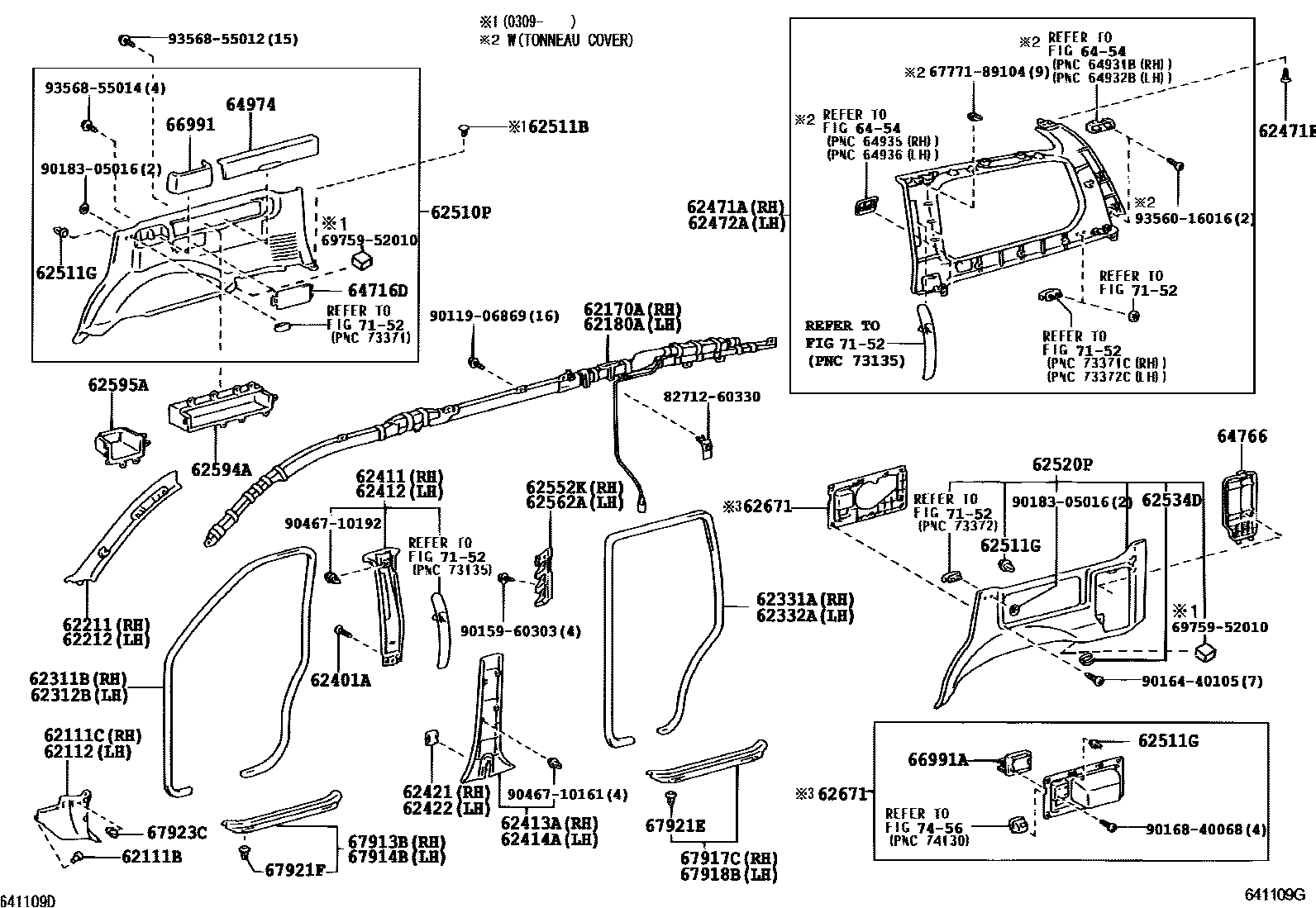

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06183i200208-200505
62111CBOARD, COWL SIDE TRIM, RH
main62111-60071-A1i200208-200612
IVORY,TRIM0#
sub62111-60072
main62111-60071-B1i200208-200612
STONE,TRIM1#
sub62111-60072
main62111-60072-A1i200701-200708
IVORY,TRIM0#
sub62111-60073
main62111-60072-B1i200701-200708
STONE,TRIM1#
sub62111-60073
62112BOARD, COWL SIDE TRIM, LH
main62112-60110-A1i200208-200612
IVORY,TRIM0#
sub62112-60111
main62112-60110-B1i200208-200612
STONE,TRIM1#
sub62112-60111
main62112-60111-A1i200701-200708
IVORY,TRIM0#
sub62112-60112
main62112-60111-B1i200701-200708
STONE,TRIM1#
sub62112-60112
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-60040i200208-200505
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-60030i200208-200505
62211GARNISH, FRONT PILLAR, RH
main62210-60100-A1i200208-200610
IVORY,TRIM0#
sub62210-60101
main62210-60100-B1i200208-200610
STONE,TRIM1#
sub62210-60101
main62210-60101-A1i200611-200708
IVORY,TRIM0#
sub62210-60102
main62210-60101-B1i200611-200708
STONE,TRIM1#
sub62210-60102
62212GARNISH, FRONT PILLAR, LH
main62220-60100-A1i200208-200610
IVORY,TRIM0#
sub62220-60101
main62220-60100-B1i200208-200610
STONE,TRIM1#
sub62220-60101
main62220-60101-A1i200611-200708
IVORY,TRIM0#
sub62220-60102
main62220-60101-B1i200611-200708
STONE,TRIM1#
sub62220-60102
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-60120-A0i200208-200509
IVORY,TRIM0#
sub62311-60121
main62311-60120-B0i200208-200509
STONE,TRIM1#
sub62311-60121
main62311-60121-A0i200510-200708
IVORY,TRIM0#
sub62311-60131
main62311-60121-B0i200510-200708
STONE,TRIM1#
sub62311-60131
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-60120-A0i200208-200509
IVORY,TRIM0#
sub62312-60121
main62312-60120-B0i200208-200509
STONE,TRIM1#
sub62312-60121
main62312-60121-A0i200510-200708
IVORY,TRIM0#
sub62312-60131
main62312-60121-B0i200510-200708
STONE,TRIM1#
sub62312-60131
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-60060-A0i200208-200509
IVORY,TRIM0#
sub62331-60061
main62331-60060-B0i200208-200509
STONE,TRIM1#
sub62331-60061
main62331-60061-A0i200510-200708
IVORY,TRIM0#
sub62331-60071
main62331-60061-B0i200510-200708
STONE,TRIM1#
sub62331-60071
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-60060-A0i200208-200509
IVORY,TRIM0#
sub62332-60061
main62332-60060-B0i200208-200509
STONE,TRIM1#
sub62332-60061
main62332-60061-A0i200510-200708
IVORY,TRIM0#
sub62332-60071
main62332-60061-B0i200510-200708
STONE,TRIM1#
sub62332-60071
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-05021-C0i200208-200708
BLACK,TRIM0#,1#
sub90467-05021
sub90467-06177
62411GARNISH, CENTER PILLAR, RH
main62410-60031-A2i200208-200610
IVORY,TRIM0#
sub62410-60032
main62410-60031-B2i200208-200610
STONE,TRIM1#
sub62410-60032
main62410-60032-A2i200611-200708
IVORY,TRIM0#
sub62410-60033
main62410-60032-B2i200611-200708
STONE,TRIM1#
sub62410-60033
62412GARNISH, CENTER PILLAR, LH
main62420-60031-A2i200208-200610
IVORY,TRIM0#
sub62420-60032
main62420-60031-B2i200208-200610
STONE,TRIM1#
sub62420-60032
main62420-60032-A2i200611-200708
IVORY,TRIM0#
sub62420-60033
main62420-60032-B2i200611-200708
STONE,TRIM1#
sub62420-60033
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-60050-A1i200208-200612
IVORY,TRIM0#
sub62413-60051
main62413-60050-B1i200208-200612
STONE,TRIM1#
sub62413-60051
main62413-60051-A1i200701-200708
IVORY,TRIM0#
main62413-60051-B1i200701-200708
STONE,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-60060-A1i200208-200612
IVORY,TRIM0#
sub62414-60060
sub62414-60061
main62414-60060-B1i200208-200612
STONE,TRIM1#
sub62414-60060
sub62414-60061
main62414-60061-A1i200701-200708
IVORY,TRIM0#
main62414-60061-B1i200701-200708
STONE,TRIM1#
62421COVER, CENTER PILLAR GARNISH, RH
main62421-60010-A1i200208-200612
IVORY,TRIM0#
sub62421-60011
main62421-60010-B1i200208-200612
STONE,TRIM1#
sub62421-60011
main62421-60011-A1i200701-200708
IVORY,TRIM0#
sub62421-60012
main62421-60011-B1i200701-200708
STONE,TRIM1#
sub62421-60012
62422COVER, CENTER PILLAR GARNISH, LH
main62421-60010-A1i200208-200612
IVORY,TRIM0#
sub62421-60011
main62421-60010-B1i200208-200612
STONE,TRIM1#
sub62421-60011
main62421-60011-A1i200701-200708
IVORY,TRIM0#
sub62421-60012
main62421-60011-B1i200701-200708
STONE,TRIM1#
sub62421-60012
62471AGARNISH, ROOF SIDE, INNER RH
main62470-60011-A1i200208-200610
IVORY,TRIM0#
sub62470-60012
main62470-60011-B1i200208-200610
STONE,TRIM1#
sub62470-60012
main62470-60012-A1i200611-200708
IVORY,TRIM0#
sub62470-60082
sub93240-56014
main62470-60012-B1i200611-200708
STONE,TRIM1#
sub62470-60082
sub93240-56014
main62470-60081-A1i200505-200610
W(TONNEAU COVER),IVORY,TRIM0#
sub62470-60082
main62470-60081-B1i200505-200610
W(TONNEAU COVER),STONE,TRIM1#
sub62470-60082
main62470-60082-A1i200611-200708
W(TONNEAU COVER),IVORY,TRIM0#
main62470-60082-B1i200611-200708
W(TONNEAU COVER),STONE,TRIM1#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
main90467-05021-C0i200208-200708
BLACK,TRIM0#,1#
sub90467-05021
sub90467-06177
62472AGARNISH, ROOF SIDE, INNER LH
main62480-60031-A1i200505-200610
W(TONNEAU COVER),IVORY,TRIM0#
sub62480-60032
main62480-60031-B1i200505-200610
W(TONNEAU COVER),STONE,TRIM1#
sub62480-60032
main62480-60032-A1i200611-200708
W(TONNEAU COVER),IVORY,TRIM0#
main62480-60032-B1i200611-200708
W(TONNEAU COVER),STONE,TRIM1#
main62480-60091-A1i200208-200610
IVORY,TRIM0#
sub62480-60092
main62480-60091-B1i200208-200610
STONE,TRIM1#
sub62480-60092
main62480-60092-A1i200611-200708
IVORY,TRIM0#
sub62480-60032
sub93240-56014
main62480-60092-B1i200611-200708
STONE,TRIM1#
sub62480-60032
sub93240-56014
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62503-60060-A1i200208-200610
IVORY,TRIM0#
sub62503-60060
sub62503-60090
main62503-60060-B1i200208-200610
STONE,TRIM1#
sub62503-60060
sub62503-60090
main62503-60090-A0i200611-200708
IVORY,TRIM0#
main62503-60090-B0i200611-200708
STONE,TRIM1#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-05021-C0i200208-200505
BLACK,TRIM0#,1#
sub90467-05021
sub90467-06177
main90467-05021-C0i200505-200708
BLACK
sub90467-05021
sub90467-06177
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main67771-35010i200208-200505
WHITE
sub67771-42010
main67771-89104i200208-200505
PINK
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62504-60030-A1i200208-200610
IVORY,TRIM0#
sub62504-60030
sub62504-60060
main62504-60030-B1i200208-200610
STONE,TRIM1#
sub62504-60030
sub62504-60060
main62504-60060-A0i200611-200708
IVORY,TRIM0#
main62504-60060-B0i200611-200708
STONE,TRIM1#
62534DBRACKET, QUARTER TRIM, NO.1, LH
main62534-60010-A1i200208-200708
IVORY,TRIM0#
sub62534-60010
main62534-60010-B1i200208-200708
STONE,TRIM1#
sub62534-60010
62552KPAD, PILLAR, NO.2 RH
main62552-60070i200208-200505
62562APAD, PILLAR, NO.2 LH
main62562-60010i200208-200505
62594APOCKET, QUARTER TRIM, NO.1
main62594-60050-A1i200208-200708
IVORY,TRIM0#
sub62594-60050
main62594-60050-B1i200208-200708
STONE,TRIM1#
sub62594-60050
62595APOCKET, QUARTER TRIM, NO.2
main62595-60040-A1i200208-200708
IVORY,TRIM0#
sub62595-60040
main62595-60040-B1i200208-200708
STONE,TRIM1#
sub62595-60040
62671BOARD SUB-ASSY, QUARTER TRIM, LOWER
main62603-60040-A1i200208-200610
IVORY,TRIM0#
sub62603-60040
sub62603-60060
main62603-60040-B1i200208-200610
STONE,TRIM1#
sub62603-60040
sub62603-60060
main62603-60060-A0i200611-200708
IVORY,TRIM0#
sub62603-60061
main62603-60060-B0i200611-200708
STONE,TRIM1#
sub62603-60061
6454
64716DCOVER, DECK TRIM, REAR
main64716-60040-A1i200208-200708
IVORY,TRIM0#
sub64716-60040
main64716-60040-B1i200208-200708
STONE,TRIM1#
sub64716-60040
64766COVER SUB-ASSY, QUARTER TRIM JACK
main64766-60050-A1i200208-200612
IVORY,TRIM0#
sub64766-60051
main64766-60050-B1i200208-200612
STONE,TRIM1#
sub64766-60051
main64766-60051-A1i200701-200708
IVORY,TRIM0#
sub64766-60051
sub64766-60052
main64766-60051-B1i200701-200708
STONE,TRIM1#
sub64766-60051
sub64766-60052
64974COVER, DECK TRIM POCKET
main64974-60020-A1i200208-200708
IVORY,TRIM0#
sub64974-60020
main64974-60020-B1i200208-200708
STONE,TRIM1#
sub64974-60020
66991HOLDER, QUARTER TRIM CUP, RH
main66991-60010-A1i200208-200708
IVORY,TRIM0#
sub66991-60010
main66991-60010-B1i200208-200708
STONE,TRIM1#
sub66991-60010
66991AHOLDER, QUARTER TRIM CUP, LH
main66990-60010-A1i200208-200708
IVORY,TRIM0#
sub66990-60010
main66990-60010-B1i200208-200708
STONE,TRIM1#
sub66990-60010
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-60050-A1i200208-200610
IVORY,TRIM0#
sub67913-60051
main67913-60050-B1i200208-200610
STONE,TRIM1#
sub67913-60051
main67913-60051-A1i200611-200708
IVORY,TRIM0#
sub67913-60052
main67913-60051-B1i200611-200708
STONE,TRIM1#
sub67913-60052
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-60040-A1i200208-200610
IVORY,TRIM0#
sub67914-60041
main67914-60040-B1i200208-200610
STONE,TRIM1#
sub67914-60041
main67914-60041-A1i200611-200708
IVORY,TRIM0#
sub67914-60042
main67914-60041-B1i200611-200708
STONE,TRIM1#
sub67914-60042
67917CPLATE, REAR DOOR SCUFF, RH
main67917-60050-A1i200208-200610
IVORY,TRIM0#
sub67917-60050
sub67917-60051
main67917-60050-B1i200208-200610
STONE,TRIM1#
sub67917-60050
sub67917-60051
main67917-60051-A1i200611-200708
IVORY,TRIM0#
sub67917-60052
main67917-60051-B1i200611-200708
STONE,TRIM1#
sub67917-60052
67918BPLATE, REAR DOOR SCUFF, LH
main67918-60040-A1i200208-200610
IVORY,TRIM0#
sub67918-60040
sub67918-60041
main67918-60040-B1i200208-200610
STONE,TRIM1#
sub67918-60040
sub67918-60041
main67918-60041-A1i200611-200708
IVORY,TRIM0#
sub67918-60042
main67918-60041-B1i200611-200708
STONE,TRIM1#
sub67918-60042
67921ERETAINER, REAR DOOR SCUFF PLATE
main67921-22020i200208-200610
RED
main67921-95501i200208-200610
YELLOW
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-22020i200208-200610
RED
main67921-95501i200208-200610
YELLOW
67923CCLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030i200208-200505
7152
7456
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104
6975952010SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-52010
8271260330CLAMP, WIRING HARNESS
main82712-60330
9011906869
main90119-06869
9015960303
main90159-60303
9016440105
main90164-40105
9016840068
main90168-40068
9018305016
main90183-05016
9046710161
main90467-10161
9046710192
main90467-10192
9356016016
main93560-16016
9356855012
main93568-55012
9356855014
main93568-55014

59 parts on this diagram · 1 diagram in section
