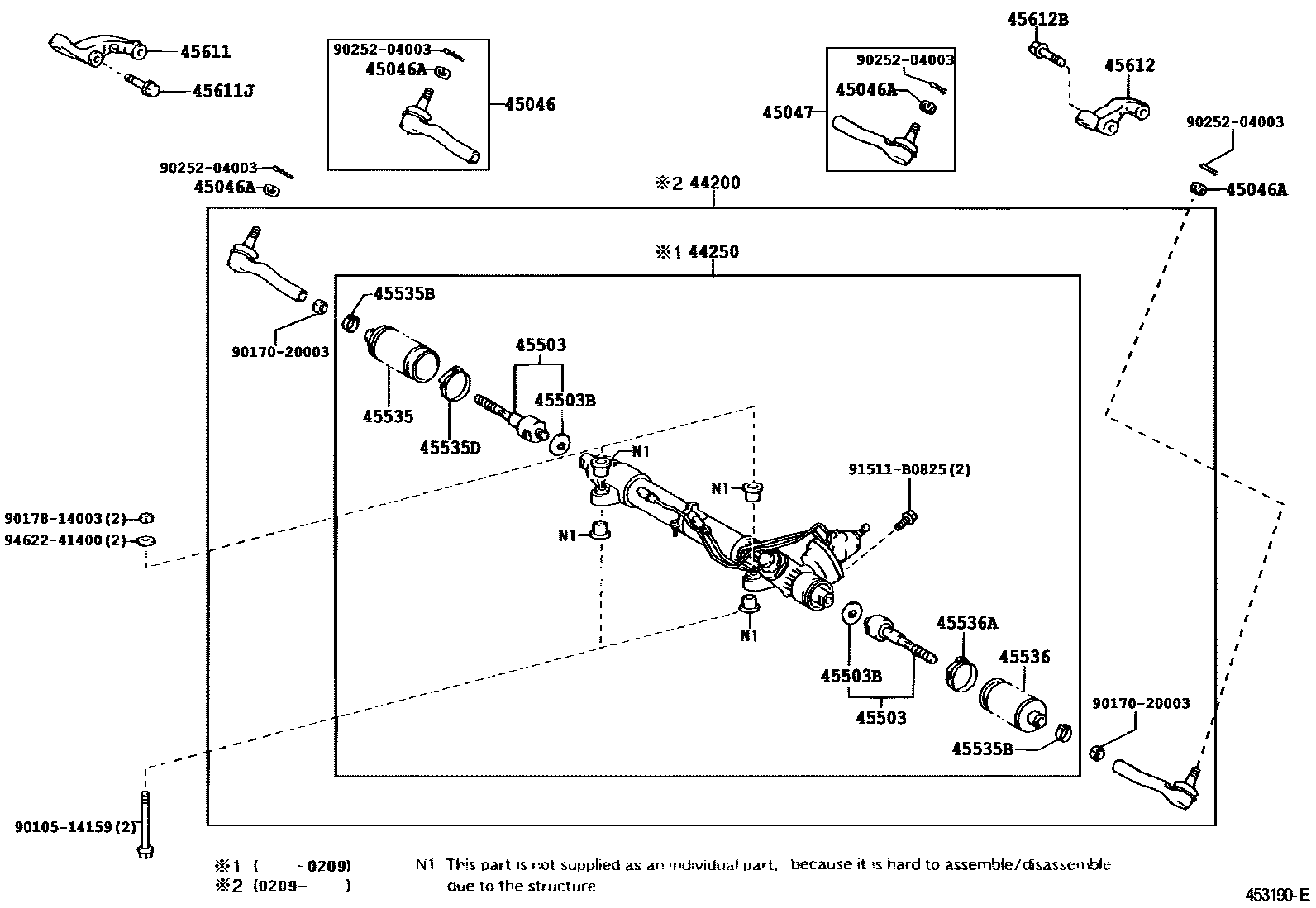

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-60120iUZJ100200209-200505

sub44250-60120

sub45046-69205

sub45047-69115

sub90170-20003

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-60120iUZJ100200208-200209

45046END SUB-ASSY, TIE ROD, RH

main45046-69205iUZJ100200208-200505

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16006iUZJ100200208-200505

45047END SUB-ASSY, TIE ROD, LH

main45047-69115iUZJ100200208-200505

45503END SUB-ASSY, STEERING RACK

main45503-69025iUZJ100200208-200505

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-27002iUZJ100200208-200505

OD=47

45535BOOT, STEERING RACK, NO.1

main45535-60010iUZJ100200208-200505

45535BCLIP(FOR STEERING RACK BOOT)

main96134-52600iUZJ100200208-200505

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-62006iUZJ100200208-200505

45536BOOT, STEERING RACK, NO.2

main45535-60010iUZJ100200208-200505

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-62006iUZJ100200208-200505

45611ARM, STEERING KNUCKLE, RH

main45611-60120iUZJ100200208-200505

45611JBOLT(FOR STEERING KNUCKLE ARM RH)

main90105-14043iUZJ100200208-200505

45612ARM, STEERING KNUCKLE, LH

main45612-60120iUZJ100200208-200505

45612BBOLT(FOR STEERING KNUCKLE ARM LH)

main90105-14043iUZJ100200208-200505

9010514159

main90105-14159

9017020003

main90170-20003

9017814003

main90178-14003

9025204003

main90252-04003

91511B0825

main91511-B0825

9462241400

main94622-41400

22 parts on this diagram · 2 diagrams in section
