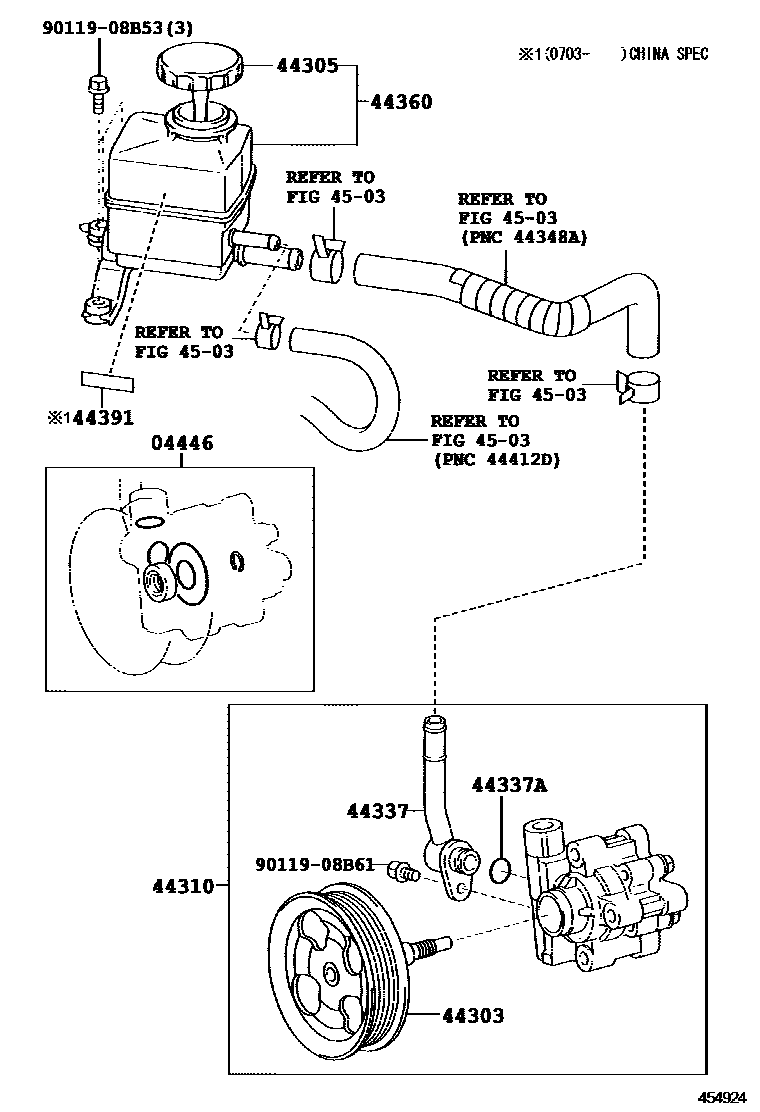

Toyota 151530 — VANE PUMP & RESERVOIR (POWER STEERING)
44303SHAFT SUB-ASSY, W/ROTOR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44310PUMP ASSY, VANE
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44360RESERVOIR ASSY, VANE PUMP OIL
44391PLATE, POWER STEERING OIL RESERVOIR CAUTION
4503POWER STEERING TUBE
9011908B53
9011908B61
11 parts on this diagram · 1 diagram in section
VANE PUMP & RESERVOIR (POWER STEERING) for Toyota 151530
This section contains 11 genuine Toyota parts for the VANE PUMP & RESERVOIR (POWER STEERING) system of the Toyota 151530. Key components include: GASKET KIT, POWER STEERING PUMP, SHAFT SUB-ASSY, W/ROTOR, CAP SUB-ASSY, VANE PUMP OIL RESERVOIR, PUMP ASSY, VANE, UNION, POWER STEERING SUCTION PORT.
