FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04427-60120×2iUZJ100200411-200505

main04438-60021×2iUZJ100200208-200411

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04437-60080×2iUZJ100200505-200708

main04438-60010×2iUZJ100200208-200411

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-35020iUZJ100200208-200505

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-35020iUZJ100200208-200505

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-60010iUZJ100200208-200505

43403ARING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING)

main90521-34003×2iUZJ100200208-200505

43403BJOINT SET, FRONT AXLE INBOARD, LH

main43403-60010iUZJ100200208-200505

43403DRING, HOLE SNAP (FOR FRONT AXLE INBOARD JOINT SET)

main43425-60020×2iUZJ100200208-200505

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-60040iUZJ100200208-200505

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-47012iUZJ100200505-200708

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main43425-60010×2iUZJ100200208-200505

main43425-60030×2iUZJ100200708

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-60040iUZJ100200208-200505

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-47013iUZJ100200208-200505

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60050×2iUZJ100200208-200505

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60060×2iUZJ100200208-200505

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iUZJ100200208-200505

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-60070×2iUZJ100200208-200505

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-69036iUZJ100200208-200505

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-69036iUZJ100200208-200505

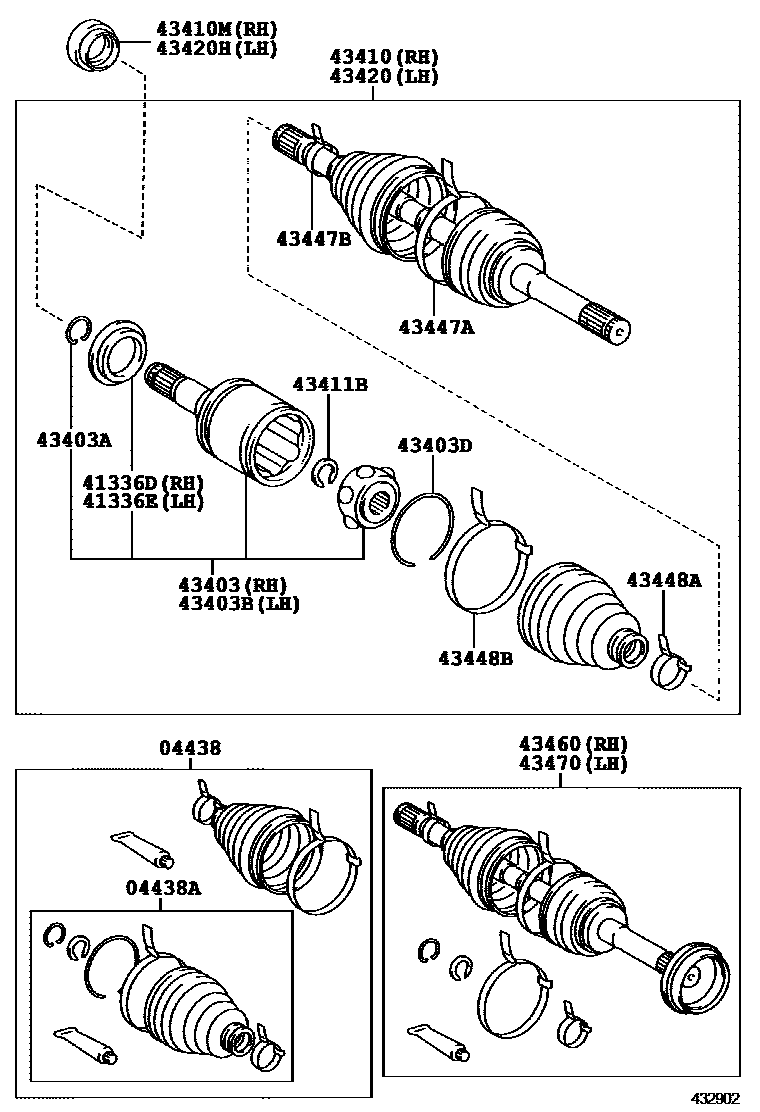

19 parts on this diagram · 1 diagram in section
