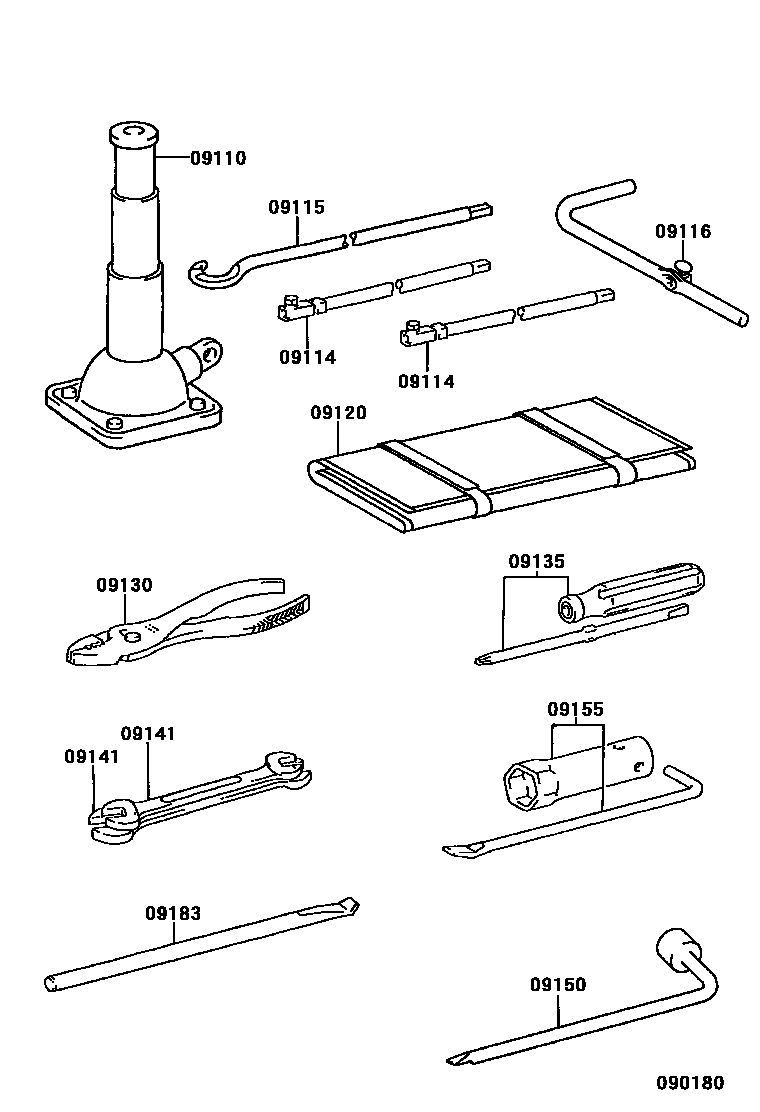

STANDARD TOOL

09110JACK ASSY

main09111-60082iUZJ100200404-200505

main09111-60084iUZJ100200505-200708

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070×2iUZJ100200208-200505

09115ROD SUB-ASSY, JACK HANDLE

main09115-60060iUZJ100200208-200505

09116LEVER, JACK HANDLE

main09116-60010iUZJ100200208-200505

09120BAG, TOOL

main09120-60190iUZJ100200208-200505

09130PLIERS

main09130-50030iUZJ100200505

09135DRIVER, SCREW

main09135-50040iUZJ100200208-200505

09141SPANNER

main09141-50050iUZJ100200208-200505

8 X 10

main09141-50060iUZJ100200208-200505

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60030iUZJ100200208-200505

09155WRENCH, SPARK PLUG

main09155-50010iUZJ100200208-200505

09183WRENCH, WHEEL CAP

main09183-00030iUZJ100200208-200505

11 parts on this diagram · 1 diagram in section
