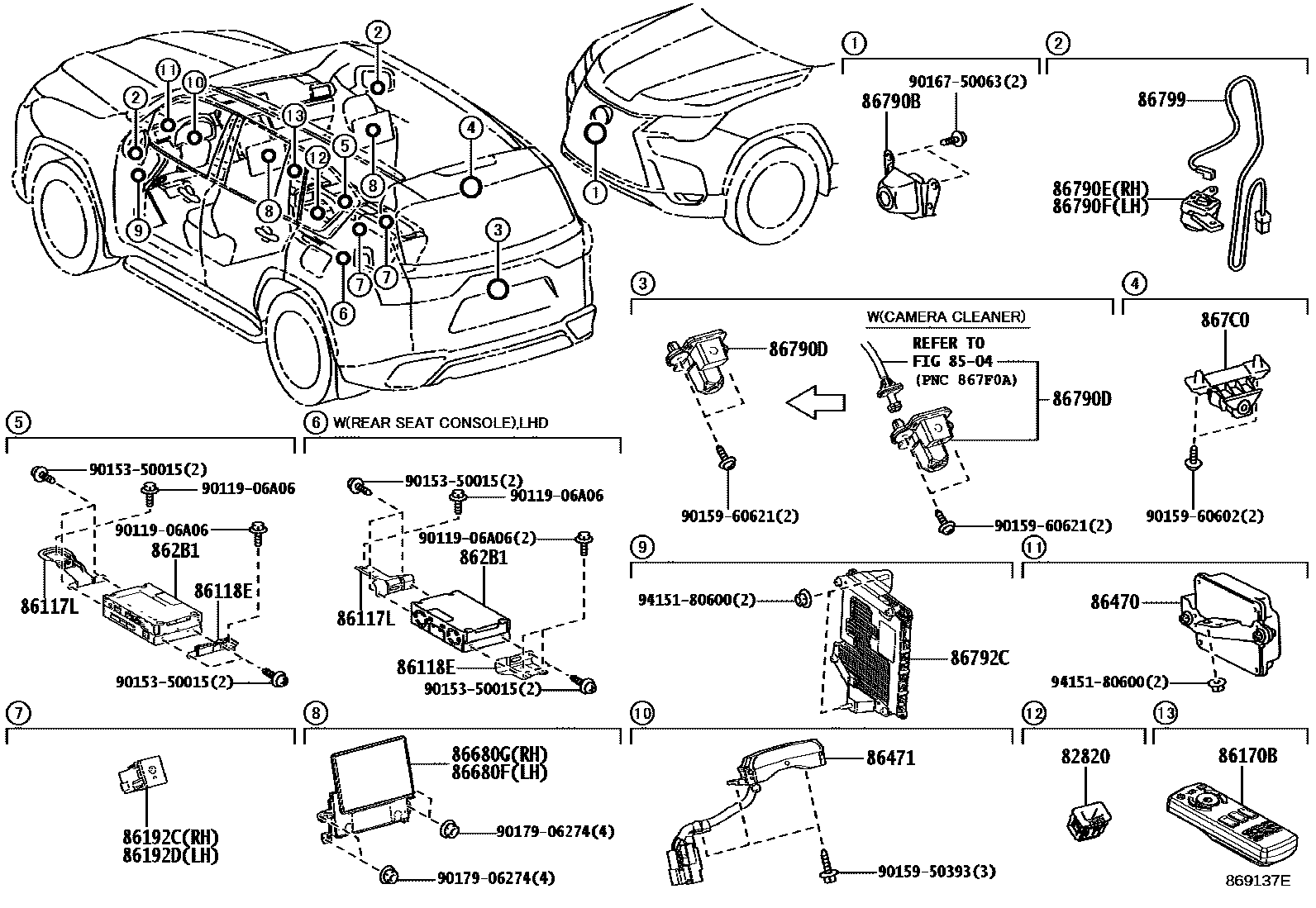

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

82820COVER, CONNECTOR

main82821-60D10iFJA310,VJA310,VJH310202411

MEXICO SPEC

8504

86117LBRACKET, MULTI-DISPLAY CONTROLLER, NO.1

main86117-60190iVJA310..ARL202112-202411

REAR AUDIO-WITH(DUAL *RSE)

main86117-60340iFJA310..GCC;VJA310..LHD202112-202411

REAR AUDIO-WITH(EXECUTIVE)

86118EBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86118-60140iFJA310,VJA310,VJH310202411

REAR AUDIO-WITH(DUAL *RSE)

main86118-60170iFJA310,VJA310,VJH310..LHD202411

REAR AUDIO-WITH(EXECUTIVE)

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-50500iVJA310..EUR202112-202411

TELEVISION & DVD PLAYER-WITH(WITH/*RSE REMOTE CONTROL(DOP))

86192CTERMINAL, HEADPHONE, RH

main86192-60130iFJA310,VJA310202112-202411

REAR AUDIO-WITH(DUAL *RSE)

86192DTERMINAL, HEADPHONE, LH

main86192-60120iFJA310,VJA310202112-202411

REAR AUDIO-WITH(DUAL *RSE)

862B1CONTROLLER, MULTI-DISPLAY

main862B0-60050iFJA310..EUR202211-202302

REAR AUDIO-WITH(EXECUTIVE)

main862B0-60051iFJA310,VJA310202303-202411

REAR AUDIO-WITH(DUAL *RSE)

main862B0-60060iFJA310,VJA310,VJH310202411

REAR AUDIO-WITH(DUAL *RSE)

86470COMPUTER ASSY, DRIVER MONITOR

main86470-60100iFJA310,VJA310..EUR202411

LANE KEEPING SYSTEM- WITH(LTA & TOUCH & EDSS)

86471CAMERA, DRIVER MONITOR

main86471-48010

86680FDISPLAY ASSY, MULTI INFORMATION, NO.1

main86680-60590iFJA310,VJA310,VJH310202411

REAR AUDIO-WITH(DUAL *RSE)

86680GDISPLAY ASSY, MULTI INFORMATION, NO.2

main86680-60590iFJA310,VJA310,VJH310202411

REAR AUDIO-WITH(DUAL *RSE)

main86680-60600iFJA310..LHD;VJA310,VJH310202411

REAR AUDIO-WITH(EXECUTIVE)

86790BCAMERA ASSY, TELEVISION, FR

main86790-60410iVJA310;FJA310..LHD202112-202208

main86790-60411iFJA310,VJA310202208-202411

main86790-60740iFJA310..ARL202112-202305

INDIA SPEC

main86790-60820iFJA310..ARL202305-202411

INDIA SPEC

86790DCAMERA ASSY, TELEVISION, RR

main86790-60381iFJA310,VJA310,VJH310202411

main86790-60371iVJA310,VJH310..GCC202411

EGYPT SPEC

main86790-60720iFJA310..ARL202212-202411

INDIA SPEC&BACK MONITOR-WITH(WITH/*PVM & *MTMO)

main86790-60730iFJA310..ARL202212-202411

INDIA SPEC

main86790-60B00iFJA310..ARL202411

INDIA SPEC&BACK MONITOR-WITH(WITH/*PVM & *MTMO)

main86790-60B10iFJA310..ARL202411

INDIA SPEC

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-60400iVJA310;FJA310..LHD202112-202208

main86790-60401iFJA310,VJA310,VJH310202411

main86790-60760iFJA310..ARL202112-202305

INDIA SPEC

main86790-60810iFJA310..ARL202411

INDIA SPEC

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-60390iVJA310;FJA310..LHD202112-202208

main86790-60391iFJA310,VJA310,VJH310202411

main86790-60750iFJA310..ARL202112-202305

INDIA SPEC

main86790-60800iFJA310..ARL202305-202411

INDIA SPEC

86792CCOMPUTER, PARKING ASSIST

main86792-60810iFJA310,VJA310..ARL202112-202208

main86792-60811iFJA310,VJA310..ARL202208-202310

main86792-60812iFJA310,VJA310..ARL202310-202411

main86792-60820iFJA310,VJA310..LHD202112-202208

main86792-60821iFJA310,VJA310..LHD202208-202310

main86792-60822iFJA310,VJA310..LHD202310-202411

main86792-60C40iFJA310,VJA310,VJH310..ARL202411

main86792-60C50iFJA310,VJA310,VJH310..LHD202411

main86792-60A90iFJA310..ARL202211-202310

INDIA SPEC

86799WIRE, TELEVISION CAMERA

main86799-60080×2iFJA310,VJA310202112-202411

867C0CAMERA ASSY, INNER MIRROR

main867C0-60010iFJA310,VJA310..EUR202411

COSTA RICA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & *GDO

main867C0-60020iFJA310,VJA310..EUR202112-202301

REAR SIDE GLASS-PRIVACY(GRAY)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867C0-60030iFJA310,VJA310..EUR202301-202411

MOON ROOF-WITH(REMOTE CONTROL)

main867C0-60080iFJA310,VJA310..EUR202411

ETC-WITH

9011906A06

main90119-06A06

9015350015

main90153-50015

9015950393

main90159-50393

9015960602

main90159-60602

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9415180600

main94151-80600

27 parts on this diagram · 2 diagrams in section
